Citroen C5 X7 missing part

Post by vodnasol »

Hi all,

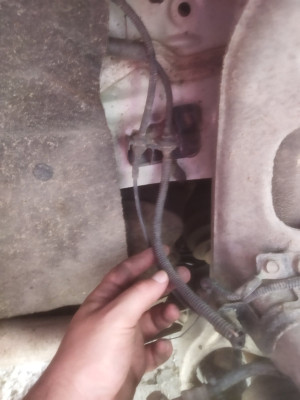

Today I was changing my tyres and I noticed that on the FL side there was a cable with two wires hanging and possibly something else also missing/unplugged. I had hooked a lexia a couple months ago and there was an error for not received data from a TPS, but I don't remember if it was from the FL side. Could someone verify if it is a TPS receiver missing?
Thanks
Attachments
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: Citroen C5 X7 missing part

Post by wheeler »

Thats the connection for the brake pad wear indicator sensors.
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Citroen C5 X7 missing part

Post by Hell Razor5543 »

I believe that, for the C5 X7, it is possible to get a replacement for that segment of the loom. Marc should be able to confirm this (I know that it is not possible for the earlier C5 models), but I don't know the part number. The wires that then connect to the brake pads should come with a new set of front pads (between the ringed connector and the pads).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
vodnasol
Donor 2023
Posts: 24
Joined: 11 Jan 2022, 09:13
Location: Sevlievo, Bulgaria
Lexia Available: Yes
My Cars: Citroen C5 2.0 HDi Exclusive
x 1

Re: Citroen C5 X7 missing part

Post by vodnasol »

Hell Razor5543 wrote: 28 May 2022, 18:26 I believe that, for the C5 X7, it is possible to get a replacement for that segment of the loom. Marc should be able to confirm this (I know that it is not possible for the earlier C5 models), but I don't know the part number. The wires that then connect to the brake pads should come with a new set of front pads (between the ringed connector and the pads).
I checked some threads and you can buy a replacement. Do you know if it gives a warning a little bit before the pads are completely worn off or when there is no more pad left, because I wouldn't bother removing the wheel again just to replace it if it just activates right at the end of the life of the pads?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen C5 X7 missing part

Post by GiveMeABreak »

The warning goes off when the pads are nearly worn - so you won't have more than a few millimetres left on the pads when it goes off. That's the time to get them changed.
Please Don't PM Me For Technical Help

Marc
