Citroen, DS Automobiles and Peugeot Official Part Number Requests

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
colinsunderland
(Donor 2020)
Posts: 57
Joined: 30 Apr 2020, 21:29
Location: Sunderland
My Cars: Peugeot 3008
x 2

Re: Citroen and Peugeot Parts Requests

Post by colinsunderland »

Hi Marc

Any chance of a part number for the rear left abs sensor

Had it in a garage this afternoon who said the back of the discs rust up quite often and cause the sensor to knock against it so I might have to change the pads and discs too, is that right or is he trying to scam me lol

Are the sensors easy to change does anyone know?
I know the brake switch goes commonly on these, as the auto handbrake isn't working either, and they cause all sorts of errors, it wouldn't be that would it? Diagbox isn't giving a handbrake error but it shows on the dash

Thanks again
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Huskyxantia wrote: 29 Dec 2021, 09:43

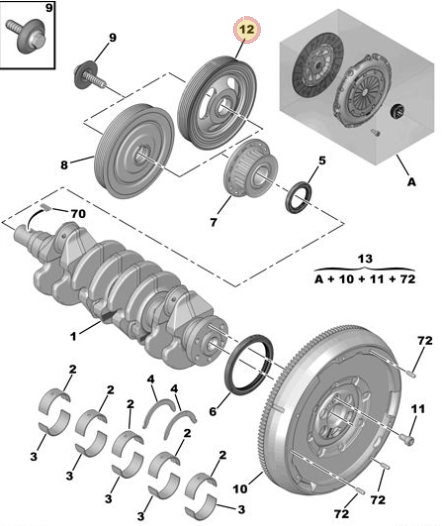

GiveMeABreak wrote: 29 Dec 2021, 02:55 Item (12) Part: 0515T3 £161.40


I'll have to try and get the other info later
I take it item 12 is the modified pulley ?
No indication of this - it is the original part number with the following dimensions: DIAM 157,75X30 EP 30.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Huskyxantia wrote: 29 Dec 2021, 14:23 Needing part number for the spring clamp that holds the pipe onto the turbo intake side. For my 206cc 1.6hdi

Thanks marc.
Husky Spring.PNG
If its (16) - Elastic Collar, then part: 1434G7
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Rhothgar wrote: 29 Dec 2021, 12:10
Rhothgar wrote: 26 Dec 2021, 17:02 Whilst I think about it, is 1854.24 the part number for the engine rear lower mount which straps the engine mount (which the intermediate driveshaft goes through) back to the subframe please?
Sorry to pester Marc. Any chance of confirming this pretty please? :oops: That's an embarrassed face by the way. Hope you had a good Xmas.
Roth Mount.PNG
Yes, as far as Christmas this year goes - locked away and stuffing!

These are the engine mountings - no part with number listed. Let me know which item you need from the diagram.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

colinsunderland wrote: 29 Dec 2021, 15:10 Hi Marc

Any chance of a part number for the rear left abs sensor

Had it in a garage this afternoon who said the back of the discs rust up quite often and cause the sensor to knock against it so I might have to change the pads and discs too, is that right or is he trying to scam me lol

Are the sensors easy to change does anyone know?
I know the brake switch goes commonly on these, as the auto handbrake isn't working either, and they cause all sorts of errors, it wouldn't be that would it? Diagbox isn't giving a handbrake error but it shows on the dash

Thanks again
Couldn't tell you Colin - I've never had one fail ever, but certainly knocks and weathering can cause issues.
colin abs rear.PNG
Rear ABS Sensor, item (2), Part 4545K8, £74.99
Please Don't PM Me For Technical Help

Marc
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Parts Diagram Please

Post by KennyW »

Please can the parts diagram be posted for the Underbody protection for my C5 x7

VRN : VF7**************[VIN obfuscated, can be read by forum staff]

Thanks

Kenny
Last edited by GiveMeABreak on 29 Dec 2021, 20:31, edited 1 time in total.
Reason: Moved to Parts Requests Forum
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Here Kenny:

I have indicated the main parts you have. If you need part numbers, let me know the item numbers.
Kenny underbody.PNG
Please Don't PM Me For Technical Help

Marc
Rhothgar
Donor 2023
Posts: 1758
Joined: 22 Nov 2004, 00:21
Location: Nottingham - UK
My Cars: 2013 Peugeot 3008 Allure 1.6HDi - FD63 FWA VF3**************[VIN obfuscated, can be read by forum staff]
1995 Citroen Xantia 1.9TD S1 - M728 GDL VF7**************[VIN obfuscated, can be read by forum staff]
1996 Citroen Xantia 1.9TD SX S1 - N707 MGP (Currrently laid up)
2000 Citroen Xantia 2.0 HDi S2 - X435 JGJ VF7**************[VIN obfuscated, can be read by forum staff] (Clutch died Dec 2017 - Resurrected Easter Sunday 2021)
1997 Citroen ZX SX TD - P788 AJL
1959 Landrover Defender S2 - Two owners from new
1968 Triumph Vitesse Convertible 2.0
1980 Ford Escort RS2000 Customer - 2nd Owner
1988 Saab 900 T16S - A 1980's exercise in understated Hooliganism...
Oh! and two Harley Davidsons - A 1990 Sportster and a 2003 Fatboy 100th Anniversary (the only vehicle I have owned from new)
x 78

Re: Citroen and Peugeot Parts Requests

Post by Rhothgar »

GiveMeABreak wrote: 29 Dec 2021, 20:10

These are the engine mountings - no part with number listed. Let me know which item you need from the diagram.
I’ll have a 10 please, Bob!

If cross referencing is available great. If not, no problem 1854.24 I hope.
User avatar
Huskyxantia
Donor 2023
Posts: 1949
Joined: 30 Jul 2018, 22:11
Location: Surrey Kent sussex border
My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw

Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .

Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice.
x 398

Re: Citroen and Peugeot Parts Requests

Post by Huskyxantia »

GiveMeABreak wrote: 23 Dec 2021, 16:40 Here you go:


If it's the gas temperature pipe / sensor that is item (1), part 1618LS, £135.44
Item (4) is the actual DPF Differential Pressure Sensor and that part may no longer be available (1618LP), so they recommend using part 1618Z9, £96.59

Pipes:


(7) is the pipe upstream of the sensor 1618P2 (no longer available)
(9) is the pipe upstream pf the particle filter 1618P4, £19.91

(8) is the pipe downstream of the sensor 1618P3 (no longer available)
(10) is the pipe downstream of the particle filter 1618P5 (no longer available)
4 number 72's , i checked my routing of these pipes today and they were on the other way, so i changed them, things is my engine light came on this evening while driving so tomo im putting them back how they were .
Last edited by GiveMeABreak on 29 Dec 2021, 21:36, edited 1 time in total.
Reason: fixed quote code
Husky. :?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

@ Husky:

Item (72) Part: 6981P4, 67p each. Be aware, I've known PSA to sell minimum order quantities of these types of clips - I ordered another type some years back for the boot fizings and ended up having to buy a bag of 25!
Please Don't PM Me For Technical Help

Marc
User avatar
Huskyxantia
Donor 2023
Posts: 1949
Joined: 30 Jul 2018, 22:11
Location: Surrey Kent sussex border
My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw

Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .

Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice.
x 398

Re: Citroen and Peugeot Parts Requests

Post by Huskyxantia »

GiveMeABreak wrote: 29 Dec 2021, 21:39 @ Husky:

Item (72) Part: 6981P4, 67p each. Be aware, I've known PSA to sell minimum order quantities of these types of clips - I ordered another type some years back for the boot fizings and ended up having to buy a bag of 25!
Ive been had that way many moons ago
Husky. :?
User avatar
Huskyxantia
Donor 2023
Posts: 1949
Joined: 30 Jul 2018, 22:11
Location: Surrey Kent sussex border
My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw

Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .

Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice.
x 398

Re: Citroen and Peugeot Parts Requests

Post by Huskyxantia »

Hello marc
Have you part number for Turbo air pipe sleeve for 206cc 1.6hdi, why do mine split so easy ?
Husky. :?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Citroen and Peugeot Parts Requests

Post by GiveMeABreak »

Huskyxantia wrote: 30 Dec 2021, 11:35 Hello marc
Have you part number for Turbo air pipe sleeve for 206cc 1.6hdi, why do mine split so easy ?
Turbo Air Piping: Let me know item.
husk turbo air piping.PNG
If Air Hose from Air Intake, advise of item number from Diagram from other post here:

viewtopic.php?p=705811#p705811
Please Don't PM Me For Technical Help

Marc
User avatar
Huskyxantia
Donor 2023
Posts: 1949
Joined: 30 Jul 2018, 22:11
Location: Surrey Kent sussex border
My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw

Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .

Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice.
x 398

Re: Citroen and Peugeot Parts Requests

Post by Huskyxantia »

GiveMeABreak wrote: 30 Dec 2021, 11:42
Huskyxantia wrote: 30 Dec 2021, 11:35 Hello marc
Have you part number for Turbo air pipe sleeve for 206cc 1.6hdi, why do mine split so easy ?
Turbo Air Piping: Let me know item.


If Air Hose from Air Intake, advise of item number from Diagram from other post here:

viewtopic.php?p=705811#p705811
Other side of the turbo its the orange rubber piece, air in take seal ? I think
Husky. :?
User avatar
Huskyxantia
Donor 2023
Posts: 1949
Joined: 30 Jul 2018, 22:11
Location: Surrey Kent sussex border
My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw

Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .

Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice.
x 398

Re: Citroen and Peugeot Parts Requests

Post by Huskyxantia »

GiveMeABreak wrote: 29 Dec 2021, 20:06
Huskyxantia wrote: 29 Dec 2021, 14:23 Needing part number for the spring clamp that holds the pipe onto the turbo intake side. For my 206cc 1.6hdi

Thanks marc.

If its (16) - Elastic Collar, then part: 1434G7
Number 14 is the part ive had 2 go within a few months
Husky. :?
Post Reply
