Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by **GiveMeABreak** » 18 Dec 2021, 11:09

Rhothgar wrote: ↑17 Dec 2021, 20:55 Please may I have the OE part number for M728 drop links? TIA

Original part is no longer available, but replaced with: 1634882580. Price £20.20 inc. VAT as of posting direct from Citroen.

Post by **Rhothgar** » 18 Dec 2021, 14:08

GiveMeABreak wrote: ↑18 Dec 2021, 11:09
Rhothgar wrote: ↑17 Dec 2021, 20:55 Please may I have the OE part number for M728 drop links? TIA
Original part is no longer available, but replaced with: 1634882580. Price £20.20 inc. VAT as of posting direct from Citroen.

Lovely Marc. Not a bad price for OEM either. I don't suppose you can extract the original superceded part number can you? It's not 96145457 is it?

Post by **GiveMeABreak** » 18 Dec 2021, 14:59

Yes that was the original part number.

Post by **Rhothgar** » 18 Dec 2021, 17:04

Brilliant. Thank you ever so much as per usual Marc.

Post by **Huskyxantia** » 19 Dec 2021, 09:35

Needing the correct number for a radiator water one for my 206cc 1.6hdi. Thanks in advance..

Post by **GiveMeABreak** » 19 Dec 2021, 10:26

Huskyxantia wrote: ↑19 Dec 2021, 09:35 Needing the correct number for a radiator water one for my 206cc 1.6hdi. Thanks in advance..

Radiator:

OEM Original part: 1330N2, £429.06
Peugeot Exchange Radator: 133356, £268.68

Post by **GiveMeABreak** » 19 Dec 2021, 16:09

Please note the general conversation re the rad has been moved (link below) - and out of parts requests.

viewtopic.php?t=70213

cs101 · Post by **cs101** » 20 Dec 2021, 21:16

Hi,Marc!
Please can you give me gearbox oil capacity for VIN VF3**************[VIN obfuscated, can be read by forum staff].
And also the part number foe the Air filter Grommets (the rubber which holds the air filter cover). Thanks

Post by **GiveMeABreak** » 20 Dec 2021, 21:26

cs101 wrote: ↑20 Dec 2021, 21:16 Hi,Marc!
Please can you give me gearbox oil capacity for VIN VF3**************[VIN obfuscated, can be read by forum staff].
And also the part number foe the Air filter Grommets (the rubber which holds the air filter cover). Thanks

If changing the oil, you should measure what comes out and replace with the same quantity.

Oil Capacity after emptying for DV engines:
1,9 litre (Gearbox casing with fins)
2,6 litres (Gearbox casing without fins)

Oil capacity after overhaul for DV Engines:
2,2 litres (Gearbox casing with fins)
2,9 litres (Gearbox casing without fins)

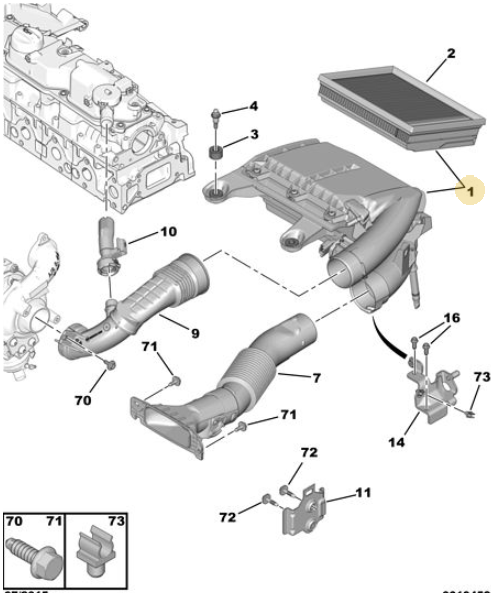

As for the Air Filter, they don't show the AF cover fixings as separate parts...

cs101 · Post by **cs101** » 20 Dec 2021, 21:52

Thank you very much, Marc.

Post by **Rhothgar** » 21 Dec 2021, 21:14

M728 passed MOT with flying colours today.

Managed to get a joblot of 6 droplinks for £16.99 delivered!!!

All for M728:-

Could I please have part numbers for all central door locking mechanisms please including boot solenoid when you have a moment?

Original and latest part numbers would be very much appreciated.

Also, is there a part number for the rear boot windscreen perimeter seal (that is around the perimeter of the glass). My mate reckons it probably comes as part of the rear screen which is also probably NFP.

Time to get on top of this baby now and get her back into tip top functional condition.

Post by **GiveMeABreak** » 21 Dec 2021, 22:39

This is the door control mechanism diagram. Obviously there are too may parts for me to list all these. Let me know which items you want part numbers for:

As for the tailgate weather strip, item (17) it is available separately and still available. Part 870746, £82.34

Obviously, the glass is bonded to the vehicle, but the tailgate rubber weather strip is available as said.

Post by **Rhothgar** » 21 Dec 2021, 23:31

Cheers Marc.

It would be all Part 1 in the top picture that I would like for each door.

I am not sure that strip is the one I am looking for as I think Part 17 goes around the edge of the panels when the tailgate is open. I am looking for the weatherstrip that goes around the perimeter of Part 4 tailgate glass especially looking at the cross section of Part 17. That looks like the seal that seals between tailgate and car body panels not tailgate glass to Part 1. Fingers crossed it is on a glass fiche?

Post by **GiveMeABreak** » 22 Dec 2021, 11:02

Doors:

Front
Right 9136J6 (1 Plug) £146.88
Right 9136H9 (2 Plug) £160.24
Left 9135H1 £146.88

Rear Door Locks

Rear
Left 913744 (2 Plug) £173.62
Right 913859 (2 Plug) No Longer Available.

Rear Windscreen
So no, there is nothing else shown. The glass is bonded - just like the front windscreen. The only trims are item (2) left and right for the sides, but nothing else.

Post by **Huskyxantia** » 23 Dec 2021, 16:27

Marc, when convenient for you i need as follows

Part number for dpf sensor and pipe position from dpf to sensor

Thank you.
