C5 Bluetooth Oddity
Moderator: RichardW
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
C5 Bluetooth Oddity
Hi all! I got a lovely 2010 C5 Exclusive with an RD4 today! It has the non-sat nav audio system (matrix display) and was wondering if your collective knowledge could help me out a little! I'm trying to stream music from my phone via Bluetooth. I have the phone all connected, and it is silent as if it's playing, but when I press the "mode" button on the headunit, nothing happens. Likewise if I put a USB drive in the socket!

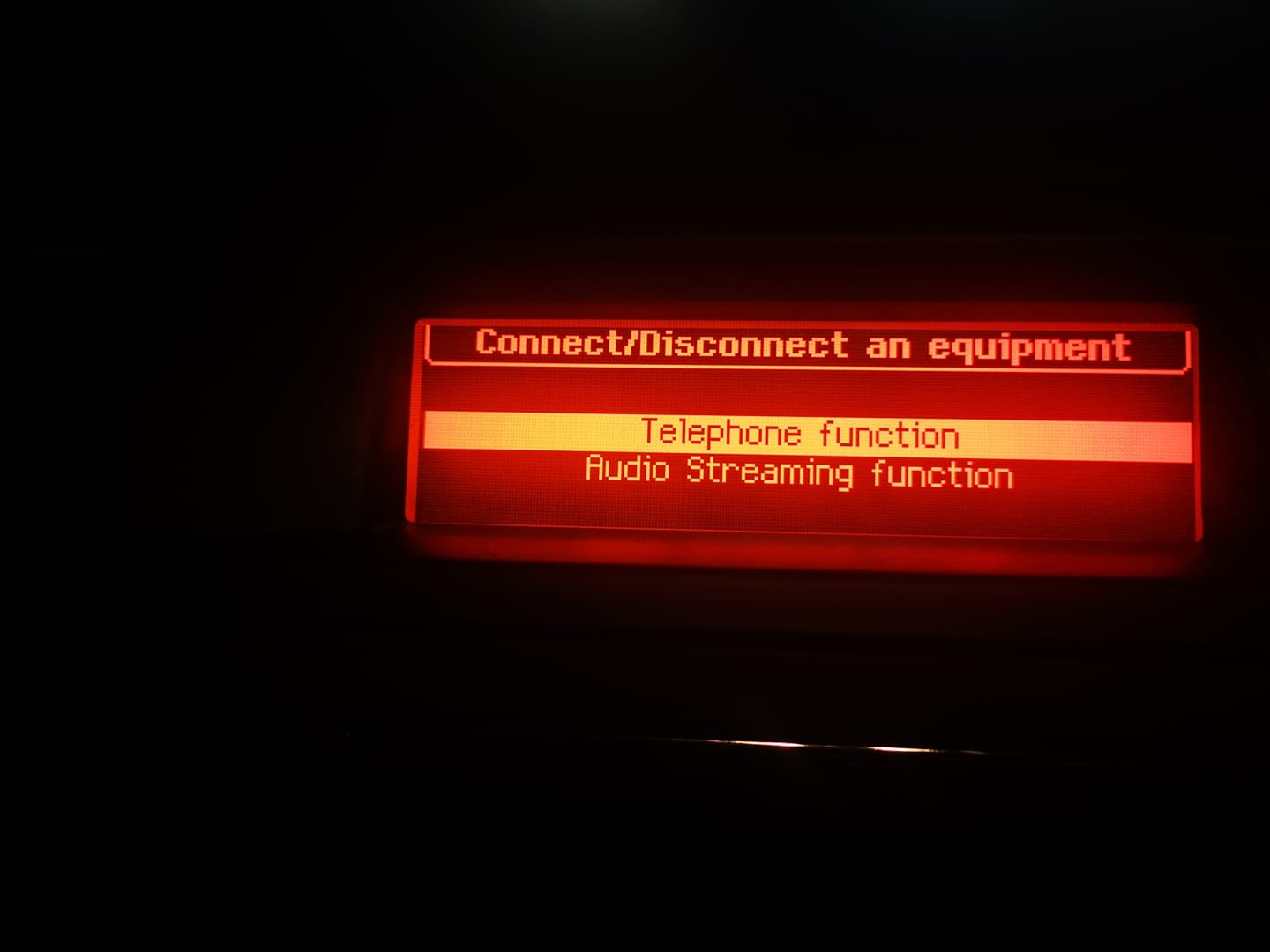

Any ideas, please? I tried making calls, but even though it says there's a call in progress on the matrix screen, the car doesn't switch from radio to the phone. I've included some photos below!
Thank y'all!
Any ideas, please? I tried making calls, but even though it says there's a call in progress on the matrix screen, the car doesn't switch from radio to the phone. I've included some photos below!
Thank y'all!
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: C5 Bluetooth Oddity
Is this the original RD4 head unit and display or have you changed it at all for an RD45? Pop your VIN up for me (automasked on post submission) it will help me determine what was fitted at factory.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity
I only got the car yesterday, but when I removed it, the date was 2014 (the car is a 2010) so I can only assume that a previous owner has replaced it. (I took another photo!) Here's the VIN: VF7**************[VIN obfuscated, can be read by forum staff] Thank you!
Last edited by GiveMeABreak on 12 Oct 2021, 12:16, edited 1 time in total.
Reason: Corrected VIN
Reason: Corrected VIN
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: C5 Bluetooth Oddity
Ok, so your C5 was originally shipped with the RD4 system and a telephone interface kit (bluetooth) separately and wired behind the dash.
So maybe somebody has replaced the display at some point given the build date of your car. You can always try unpairing AND deleting the phone from both the Head Unit and also the Mobile (unpairing is not enough - it must be deleted). Then restart the phone and the car and try pairing up again and make sure you select all the profiles you want on the phone when the bluetooth connection is made.
It may take a while to synchronise contacts etc.
If possible I would also try pairing a different phone if you have access to one and see if that works or not.
So maybe somebody has replaced the display at some point given the build date of your car. You can always try unpairing AND deleting the phone from both the Head Unit and also the Mobile (unpairing is not enough - it must be deleted). Then restart the phone and the car and try pairing up again and make sure you select all the profiles you want on the phone when the bluetooth connection is made.
It may take a while to synchronise contacts etc.
If possible I would also try pairing a different phone if you have access to one and see if that works or not.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity
Thank you Marc! I'll try another phone, My daughter has an older S7. I tried unpairing and deleting and it didn't work. I even tried the reset procedure for the ECU (all that did was throw my clock back to 2007!) I found the bluetooth module behind the odds and ends cubby, unplugged that and my phone wouldn't even connect (as expected) so I know everything is all there. The phone is silent when making calls and connected (I called the speaking clock!) and as you can see, it shows on the matrix screen that a call is in progress. It's simply that the source button doesn't work (although if I DO press it, the FM radio/song/station information that scrolls along the bottom of the display resets to the start of the scroll). Is there a physical connection on the rear of the unit that connects directly to the bluetooth module ( aside from the grey MP3 one) do you know?
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: C5 Bluetooth Oddity
There is, as on the RD4s (before the RD45 which had bluetooth built into the Head Unit, negating the need for a separate hands free kit) there needs to be a physical connection from the Hands Free Kit to the RD4 in order to pass the signals back that it is receiving via bluetooth. So I would be checking the quadlock connections carefully and making sure there are not loose pins or wires.
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: C5 Bluetooth Oddity
The unit in the photo in the original post is an RD4. The RD45 has a MUTE button to the right of the CD slot
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity
I'll be doing that as soon as I have mu coffee, lol! I found a few pinout diagrams, so I'll check the Aux2 pins etc. (if I can find my multimeter, lol!) as they are apparently the ones for the bluetooth. (Disclaimer, I have VERY limited knowledge on electronics, lol!)GiveMeABreak wrote: ↑12 Oct 2021, 23:42 There is, as on the RD4s (before the RD45 which had bluetooth built into the Head Unit, negating the need for a separate hands free kit) there needs to be a physical connection from the Hands Free Kit to the RD4 in order to pass the signals back that it is receiving via bluetooth. So I would be checking the quadlock connections carefully and making sure there are not loose pins or wires.
Failing all this, would an RD45 be a straight swap? I presume I already have the mic etc. I'd also assume that if I did put an RD45 in, I'd simply just have to disconnect the external BT module?
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: C5 Bluetooth Oddity
The RD45 is an easy swap, but the microphone cable on your car will be going to the external Bluetooth module, not the connector on the radio head. The easiest DIY fix is to buy an RD45 microphone cable and run it from the microphone to the head unit.
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity

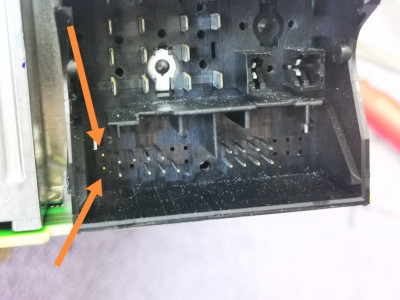

Thanks! I'll do that if I go down that route! Well..here's a little update, but it only serves to ask MORE questions! I looked at the pins and compared them to a pinout diagram. There seems to be 2 extra pins that have been cut off. They're soldered to the PCB, but are outside the main pins (numbered) and don't seem to connect to anything! Any ideas? When I looked initially, I thought they might have been the aux2 audio pins (pins #1 and #7) which were used for the bluetooth, but the plastic has small numbers on it that say the other 2 pins are 1 and 7...
My brain is melting, but I'm grateful to everyone!
My brain is melting, but I'm grateful to everyone!
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: C5 Bluetooth Oddity
Ignore those, it's by design. Here is the Pin-Out for the RD4 system for CD Changer and Hands Free Kit, but without HiFi Option:
16-way black connector
12-way black connector
12-way connector
8-way black connector
16-way black connector
Channel No. | Description |
D1 | - |
D2 | - |
D3 | - |
D4 | - |
D5 | - |
D6 | - |
D7 | - |
D8 | - |
D9 | - |
D10 | COMFORT CAN |
D11 | - |
D12 | Battery + supply |
D13 | COMFORT CAN |
D14 | - |
D15 | Switched battery+ supply |
D16 | Earth |
12-way black connector
Channel No. | Description |
1 | Earth : Compact disc changer |
2 | CAN Low : Compact disc changer |
3 | Permanent + : Compact disc changer |
4 | CD control : Audio (Right hand ) |
5 | - |
6 | - |
7 | CAN High - Compact disc changer |
8 | Audio control - Earth |
9 | - |
10 | CD control : Audio (Left hand ) |
11 | - |
12 | - |
12-way connector
Channel No. | Description |
1 | Audio auxiliary (Right hand ) |
2 | Audio earth |
3 | - |
4 | Hands-free kit : Audio - |
5 | - |
6 | - |
7 | Audio auxiliary (Left hand ) |
8 | - |
9 | - |
10 | Hands-free kit : Audio - |
11 | Hands-free kit : Audio + |
12 | - |
8-way black connector
Channel No. | Description |
1 | control + Rear right speaker |
2 | control + Front right speaker |
3 | control + Front left speaker |
4 | control + Rear left speaker |
5 | control - Rear right speaker |
6 | control - Front right speaker |
7 | control - Front left speaker |
8 | control - Rear left speaker |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity
I think I've actually solved my issue...I looked at the lead, as opposed to the unit. Part B (the bottom left) connector doesn't actually have any wires going to those pins! Which would explain the no sound coming out of it even though it's connected. I assume the lead is easy to replace?
-
- Posts: 14
- Joined: 12 Oct 2021, 10:53
- Location: Cardiff
- My Cars: 2010 Citroen c5 Exclusive
Re: C5 Bluetooth Oddity
Does anyone know if there's a lead that I can get with the correct pins from the rear of the RD4 to the factory bluetooth module?
