what a lovely datsun...
Bargain Basement Electric
Moderator: RichardW
Re: Bargain Basement Electric
Re: Bargain Basement Electric
Neil - I wonder if you have had any problems with the front driveshafts clicking on your Leaf?
Try turning the heater and pedestrian warning off so the car is silent, pull away slowly, listen for a click from the front when you apply power and another click when you apply the brake pedal to apply regen. For this to work you probably need to be <80% SoC so that you have full regen.
I think mine has been doing this very slightly since I've had it but it has got noisier now, and it turns out this is a very, very common problem with Leaf's with lots of reports on speakev and elsewhere, and there is also at least one Nissan service bulletin regarding it.
As mine is out of original car warranty I've been trying to find out exactly what the cause and cure is as I don't fancy paying Nissan to do it especially when many people have reported that after Nissan "fixed" it the click has return...
There is a lot of hearsay and misinformation about this issue but what I've been able to find out so far is that it is caused by the hub nut being inadequately torqued causing the stub axle to rock slightly on the spline in the hub...
Where it gets interesting is that the original hub nut torque figure is a crazy low 121Nm !! Compare this to a Xantia where the hub nut is torqued to 320Nm... The first Nissan bulletin addressing this issue was released some time around 2013 and yet some brand new 2020 62kWh Leaf's are still having this issue within 6 months.
In the original bulletin they tell you to remove the hub nut, push the stub axle partially out the back of the hub, apply molly grease to the rear part of the spline and hub and refit it with a new nut/washer (on models that have a washer) and torque back up to the same 121Nm figure...
But after doing some digging it appears that the recommended torque figure has been retroactively updated to 185Nm... also it seems there are at least two stub axle variations for different age Leaf's - some have a stub axle with a cut out keyway and use a stake nut to lock the nut after tightening it, while others have a normal shaft and nut with a nut cap and cotter pin. Not sure which my car has yet!
Anyway, thought I would bring it to your attention. I'm going to have a look at mine and see if I can tighten it up to 185Nm to see if that fixes the clicking...
Try turning the heater and pedestrian warning off so the car is silent, pull away slowly, listen for a click from the front when you apply power and another click when you apply the brake pedal to apply regen. For this to work you probably need to be <80% SoC so that you have full regen.
I think mine has been doing this very slightly since I've had it but it has got noisier now, and it turns out this is a very, very common problem with Leaf's with lots of reports on speakev and elsewhere, and there is also at least one Nissan service bulletin regarding it.
As mine is out of original car warranty I've been trying to find out exactly what the cause and cure is as I don't fancy paying Nissan to do it especially when many people have reported that after Nissan "fixed" it the click has return...
There is a lot of hearsay and misinformation about this issue but what I've been able to find out so far is that it is caused by the hub nut being inadequately torqued causing the stub axle to rock slightly on the spline in the hub...
Where it gets interesting is that the original hub nut torque figure is a crazy low 121Nm !! Compare this to a Xantia where the hub nut is torqued to 320Nm... The first Nissan bulletin addressing this issue was released some time around 2013 and yet some brand new 2020 62kWh Leaf's are still having this issue within 6 months.
In the original bulletin they tell you to remove the hub nut, push the stub axle partially out the back of the hub, apply molly grease to the rear part of the spline and hub and refit it with a new nut/washer (on models that have a washer) and torque back up to the same 121Nm figure...
But after doing some digging it appears that the recommended torque figure has been retroactively updated to 185Nm... also it seems there are at least two stub axle variations for different age Leaf's - some have a stub axle with a cut out keyway and use a stake nut to lock the nut after tightening it, while others have a normal shaft and nut with a nut cap and cotter pin. Not sure which my car has yet!
Anyway, thought I would bring it to your attention. I'm going to have a look at mine and see if I can tighten it up to 185Nm to see if that fixes the clicking...
Simon
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
1997 Xantia S1 3.0 V6 Auto Exclusive in Silex Grey
2016 Nissan Leaf Tekna 30kWh in White
2011 Peugeot Ion Full Electric in Silver
1977 G Special 1129cc LHD
1978 CX 2400
1997 Xantia S1 2.0i Auto VSX
1998 Xantia S2 3.0 V6 Auto Exclusive
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
Thanks for the heads up Simon.
In all my driving so far I have never consciously noticed it Simon. Air/con heater never in action these Summer days other than a quick flick if we are steaming up. I have never knowingly recognised the passenger alert noise either.
I fear now that I will be unable to shut out the possibility of a click should there be one to hear. Case of turn the radio up and carry on unless I feel some serious wheel wobble, or some humming, whining or groaning bearings.
Regards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
On a drive to get some hacksaw blades
REgards NeilOnly One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
Electric motoring on a sunny afternoon in Northumberland
Regards NeilOnly One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
Spent 2p on fuel for the journey as told here
https://www.frenchcarforum.co.uk/forum/ ... 07#p693907
Regards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
Somewhere in the Summertime since the Start of August when the mileometer was at 43,403, BBleaf has lost one of its 12 bars. Its battery in the 19 months of our ownership has done 15,000 miles of very gentle treatment.
So 43,500 miles and 6 years is the point at which the State of Health of the battery of the BB Leaf drops to 85% of the original capacity of the pack. The first bar loss represents 15% loss, subsequent bar loss represents 6.25% further loss.
I would have liked to keep the 12 bars longer, but the loss of capacity is inevitable with age, and charging cycles.
REgards Neil
So 43,500 miles and 6 years is the point at which the State of Health of the battery of the BB Leaf drops to 85% of the original capacity of the pack. The first bar loss represents 15% loss, subsequent bar loss represents 6.25% further loss.
I would have liked to keep the 12 bars longer, but the loss of capacity is inevitable with age, and charging cycles.
REgards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
BB Leaf goes to Scotland...through the window in the Scottish Borders
Regards Neil
Regards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- myglaren
- Forum Admin Team
- Posts: 25367
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4889
Re: Bargain Basement Electric
No haggis & thistles, could be anywhere.
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
The old BB Leaf isn't entirely Maintenance free. With the MOT coming up in September, discs and pads need a bit of attention. The nearside rear was giving the graunch of pads worn down to the metal so the job has started.

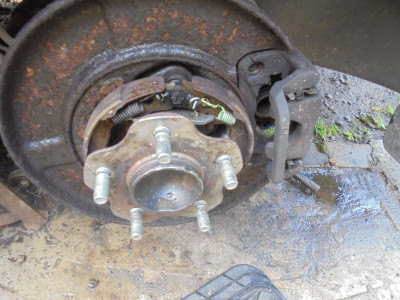

Its an odd set up on the leaf the rear disk is a disk and drum combined, with a handbrake and brakeshoes acting on the inside of the disk, and your normal caliper and pads on the outside. Its a mechanical handbrake (foot operated) operating on the little shoes inside the disk.
REgards Neil
Its an odd set up on the leaf the rear disk is a disk and drum combined, with a handbrake and brakeshoes acting on the inside of the disk, and your normal caliper and pads on the outside. Its a mechanical handbrake (foot operated) operating on the little shoes inside the disk.
REgards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- mickthemaverick
- Donor 2024
- Posts: 13523
- Joined: 11 May 2019, 17:56
- Location: Hertford
- My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3 - x 6011
Re: Bargain Basement Electric
That is a fairly common arrangement these days Neil, especially on Japanese cars. I was surprised to discover the Kia Venga does not have that arrangement!!
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
I used to ride on two wheels, but now I need all four!
- NewcastleFalcon
- Posts: 24565
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6866
Re: Bargain Basement Electric
With a normal handbrake arrangement operating on the rear wheels where there are disks on the rear wheels, the pistons on the caliper have to be wound back. I cant quite work out whether the Leaf ones do or not. Nissan say use a piston rewind tool but I cant see any connection at all between the caliper and the handbrake mechanism which is a cable operated thing acting via a lever on the shoes.mickthemaverick wrote: ↑28 Aug 2021, 19:09 That is a fairly common arrangement these days Neil, especially on Japanese cars. I was surprised to discover the Kia Venga does not have that arrangement!!
Any thoughts?
Regards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
-
Online
- (Donor 2020)
- Posts: 7171
- Joined: 08 Jun 2011, 18:04
- Location: GL15***
- My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE - x 2500
Re: Bargain Basement Electric
Common Volvo and Saab set up Neil.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
