Citroen nemo 1.3 s/s

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

Hi, out of interest can anyone tell me on diagram A where the connector for the sensor on timing chain/oil pump is ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen nemo 1.3 s/s

Post by GiveMeABreak »

Do you mean the Camshaft Position Sensor? If so Item (3) and Engine Speed Sensor is (1)
pac crankshaft Sensor.PNG
Please Don't PM Me For Technical Help

Marc
Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

No it’s electro valve at the bottom of the timing chain cover which goes into oil pump I need to know the connector on the diagram ‘A ’because not sure if my harness has one even though my new timing cover/pump has , my old cover/pump doesn’t , hope that makes sense!!!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen nemo 1.3 s/s

Post by GiveMeABreak »

I can't help you there - the diagrams are not structured like that. That was the engine harness and it doesn't tell you what each plug goes into. There's no sensors or plugs on the timing diagram either - so I'm not sure what it is you are looking for.... nor on the engine oil pump chain belt suction diagram:
Please Don't PM Me For Technical Help

Marc
Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

Hi, can you check what the correct part number is for my car for timing chain/ fuel pump (item A and 1 in pic ) I have been told there is 2 types depending on if your car has stop/start version?? Regards Paul.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen nemo 1.3 s/s

Post by GiveMeABreak »

Timing Chain:
pac timing chain.PNG
Original Part: 0816K9: £71.38
Now replaced with Part No: 1634846880: £204.86

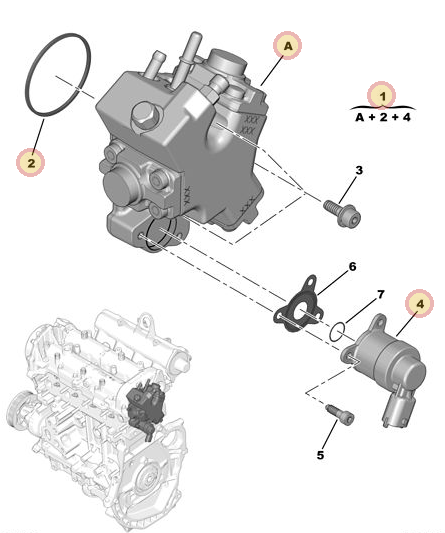

High Pressure Fuel Pump:
pac fuel pump.PNG
Original OEM: Part No: 1920SJ: £1310.52
or there is a Bosch one listed, Part No: 1679595580 (OD C15884 BOSCH CODE 0445010311): £1222.96

or there is a cheaper equivalent listed (lighter and less CO2 used):
1623821280: £519.78
Please Don't PM Me For Technical Help

Marc
Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

Sorry my mistake I need part number for oil pump not fuel pump 😬regards Paul
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen nemo 1.3 s/s

Post by GiveMeABreak »

Apologies - The server didn't update as I was looking at a part for another member for a C4 Picasso :roll:

I've deleted the last 2 posts to avoid confusion for others in future.

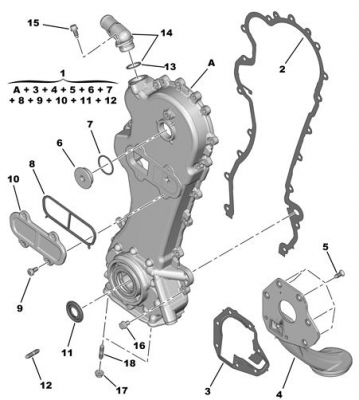

PAC oil pump.PNG
Part is item (1) and:

Original Part Number: 1001G7: £195.55

Now superseded with Part number: 1606466880: £300.73
Please Don't PM Me For Technical Help

Marc
Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

Will this fit stop/start 1.3 because when I look up that part number it’s only suitable for a non stop start engine and that’s what a parts supplier said , getting very confused 🤔??
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Citroen nemo 1.3 s/s

Post by GiveMeABreak »

You have the 'F 13DTE5 FAP 55KW 1248 4C' engine - but beware there are 2 types of oil pump for this engine -one for 'Normal' and one for 'Optimised' fuel consumption - and they have different parts numbers.

1606466880 is the correct part number for your vehicle - hence why we use the VIN - Aftermarket / Third Party parts suppliers / breakers do not always understand the subtle differences in parts.
Please Don't PM Me For Technical Help

Marc
Pac238
(Donor 2021)
Posts: 13
Joined: 18 Jun 2021, 07:53
Location: Lancashire
My Cars: Citroen Nemo 1.3 multispace s/s

Re: Citroen nemo 1.3 s/s

Post by Pac238 »

Thanks for that now I know why my timing cover/ oil pump doesn’t fit👍
Post Reply
