A friend owns a 2000 Xantia V6 Exclusive and today the internal blower fan has packed in.
Apparently it stopped working then came back on for a minute or two and then stopped again.
I had a look at it this evening briefly and there’s no power getting to the plug that goes into the fan. I checked fuses 12 and 21 as per the handbook and there’s 12v at both fuses.
I also noticed that the air conditioning switch on the dashboard is no longer illuminating either.
Does anyone have any thoughts?
Also, does anyone have a wiring diagram and key for the system on a very late Series 2 car?
Thanks,
David.
Xantia Blower Fan Not Working
Moderator: RichardW
- DHallworth
- Donor 2023
- Posts: 2387
- Joined: 20 Nov 2005, 17:05
- Location: Glasgow
- My Cars:
- x 125
Xantia Blower Fan Not Working
'98 Xantia Activa V6
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
'00 XM V6 Exclusive
'09 C5 2.7 HDi Exclusive
‘10 C5 3.0 HDi Exclusive
'12 C6 3.0 HDi Exclusive
'15 C4 BlueHDi Feel
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: Xantia Blower Fan Not Working
I think it could be an ignition switch issue, i know it was a problem with the MK1 and the MK2 had the mod done in the factory i am not sure where or which fuse would be the one that is responsible but i think it would be worth a look. Not unknown for a relay to burn out so that would be worth a look also.
I know it is an old car but maybe someone has already been messing around prior to the current owner so yes a detailed wiring diagram will be important and helpful.
Colin
I know it is an old car but maybe someone has already been messing around prior to the current owner so yes a detailed wiring diagram will be important and helpful.
Colin
- xantia_v6
- Forum Admin Team
- Posts: 9084
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: Xantia Blower Fan Not Working
It would be sensible to try changing the blower relay.

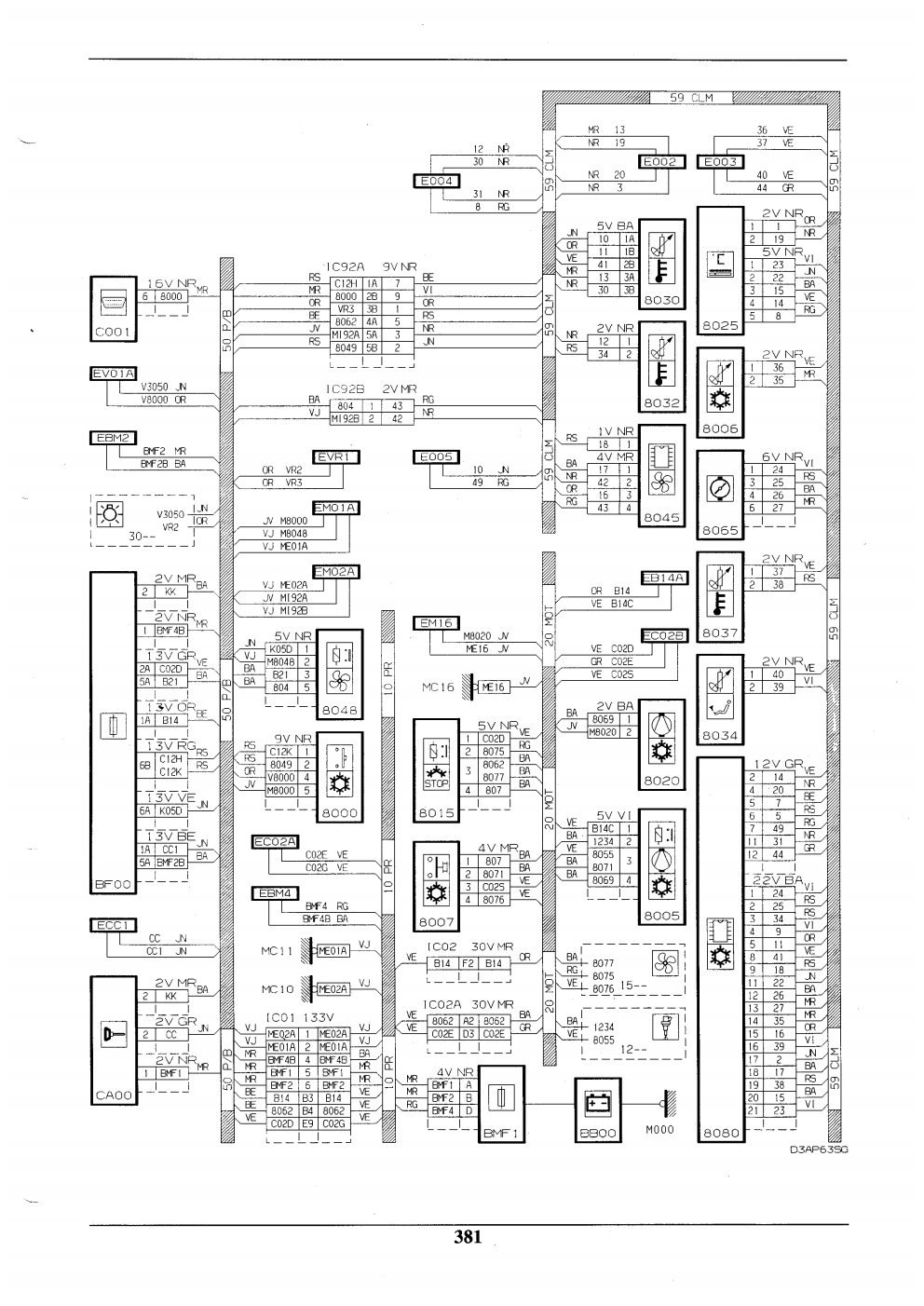

I think that these may be the applicable diagrams, they are certainly S2 Xantia with the factory-fitted blower relay. The relay is located with the relays near the fuse box under the dash board (8048 in these diagrams).
I think that these may be the applicable diagrams, they are certainly S2 Xantia with the factory-fitted blower relay. The relay is located with the relays near the fuse box under the dash board (8048 in these diagrams).
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Xantia Blower Fan Not Working
You got there first, Mike. Was just about to paste!
Component Codes (full list):
Component Codes (full list):
Chris
- xantia_v6
- Forum Admin Team
- Posts: 9084
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: Xantia Blower Fan Not Working
Chris, can you confirm that you have no later diagram? There were dashboard wiring changes very late in production.
Mike, these are the latest I have here (RP7438 onwards, = 21.3.97) . . .
↓ click to enlarge
Mike, these are the latest I have here (RP7438 onwards, = 21.3.97) . . .
↓ click to enlarge
-
- Forum Treasurer
- Posts: 10872
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 996
Re: Xantia Blower Fan Not Working
There was a long thread about this a while back, which if you asked me I'd have said was by you David!! The AC light was integral... I'll see if I can find it. I had similar trouble with mine, I jumped a feed off the back of the fuse board somewhere.
Richard W
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Xantia Blower Fan Not Working
Check the motor is ok (direct wire to 12v)
Relay on the control board comes in for Full Speed only.
Bench test the module (see below).
Couple of earlier threads:
viewtopic.php?p=633501#p633501
http://www.club-xm.co.uk/forum/viewtopi ... 90#p116112
↑ That second one explains how to bench test the control module.
Beware chinese fakes, some with wrong transistors.
Relay on the control board comes in for Full Speed only.
Bench test the module (see below).
Couple of earlier threads:
viewtopic.php?p=633501#p633501
http://www.club-xm.co.uk/forum/viewtopi ... 90#p116112
↑ That second one explains how to bench test the control module.
Beware chinese fakes, some with wrong transistors.
Chris
- DHallworth
- Donor 2023
- Posts: 2387
- Joined: 20 Nov 2005, 17:05
- Location: Glasgow
- My Cars:
- x 125
Re: Xantia Blower Fan Not Working
Thanks very much guys!
Richard, you’re right. I have had a huge thread on this before but from memory the rear heated window packed in, the air con switch LED was very dim and the fan would run on full speed with the control wire unplugged.
Now I’ve got the wiring diagrams I’ll have a proper look at it now and see what I can trace.
Thanks all!
David.
