C5 X7 - Removing Dash After Airbag Triggering
Moderator: RichardW
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
C5 X7 - Removing Dash After Airbag Triggering
good morning my citroen c5 1.6 of 2008 the 3 airbags (dashboard steering wheel and knee) burst, CEI to disassemble to make the replacement ... but now i have a dilemma, i can't find all the screws to remove the dashboard and replace .. does anyone have any maps to provide? thank you good sunday
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: C5 X7 - Removing Dash After Airbag Triggering
Be very careful and remember, you will also have to replace the correct Airbag ECU, as it won't work after the airbags have been triggered.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier
yes i know ... will any ecu work now?GiveMeABreak wrote: ↑28 Mar 2021, 12:08 Be very careful and remember, you will also have to replace the correct Airbag ECU, as it won't work after the airbags have been triggered.
Thank you for help
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: airbags acionados- não consigo tirar tablier
The Central Airbag ECU must be replaced and that must be the correct part for the vehicle as they are different (different inputs and triggering levels depending on model).
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier

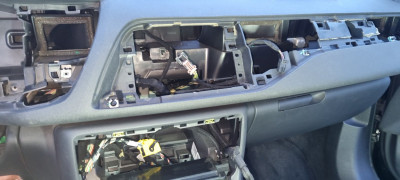

ah ok thank you .... now i need to remove the dashboard but i don't see any more screws in the meantime i found this diagram but i don't understandGiveMeABreak wrote: ↑28 Mar 2021, 12:16 The Central Airbag ECU must be replaced and that must be the correct part for the vehicle as they are different (different inputs and triggering levels depending on model).
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier
Cant paste photoGiveMeABreak wrote: ↑28 Mar 2021, 12:16 The Central Airbag ECU must be replaced and that must be the correct part for the vehicle as they are different (different inputs and triggering levels depending on model).
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: airbags acionados- não consigo tirar tablier
Go to the 'FULL EDITOR & PREVIEW' button,, then at the bottom, select the 'ATTACHMENTS' tab, select your files from phone or PC and they will upload, then press 'PLACE' to position the file in your post where you want it to show. Use the 'PREVIEW' button to see how it will look.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier
GiveMeABreak wrote: ↑28 Mar 2021, 12:26 Go to the 'FULL EDITOR & PREVIEW' button,, then at the bottom, select the 'ATTACHMENTS' tab, select your files from phone or PC and they will upload, then press 'PLACE' to position the file in your post where you want it to show. Use the 'PREVIEW' button to see how it will look.
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier
do I have to loosen any screws on the engine?
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: airbags acionados- não consigo tirar tablier
Removal of the dashboard is a big job and one I won't go into here as it involves removing multiple parts. In some cases the front door may need to be removed to gain access to the bolts too. You will have engine bulkhead bolts to remove too. Don't forget you will have to replace the seat belt units too, as in an impact the pre-tensioners are triggered - so they need replacing.
Removal of these parts minimum as examples:
The trim under the fascia
The dashboard side trim
The steering column
The centre console
The solar sensor
The scuttle grille
The Glovebox
Tweeters
Front Pillar Trims
Air Conduits
All the wiring connectors etc...
Removal of these parts minimum as examples:
The trim under the fascia
The dashboard side trim
The steering column
The centre console
The solar sensor
The scuttle grille
The Glovebox
Tweeters
Front Pillar Trims
Air Conduits
All the wiring connectors etc...
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: airbags acionados- não consigo tirar tablier
Ok - I see you are well on the way Robert!
As you've done a lot of the work, leave it with me for about 30 minutes and I'll see if I can put something up to help you.
As you've done a lot of the work, leave it with me for about 30 minutes and I'll see if I can put something up to help you.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 20
- Joined: 28 Mar 2021, 11:22
- Location: Portugal
- My Cars: Citroen C5 1.6 110cv 2008
- x 2
Re: airbags acionados- não consigo tirar tablier
Thank you thank you my friend god bless you
- GiveMeABreak
- Forum Admin Team
- Posts: 37444
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: airbags acionados- não consigo tirar tablier
Ok, here you go - this covers removing the dash specifically.
C5 X7 Dash Removal
This is the main dash removal - and does not cover additional operations such as removal of glovebox and various trims.
Refitting - Torques
Proceed in the reverse order to removal.
Tighten:
C5 X7 Dash Removal
This is the main dash removal - and does not cover additional operations such as removal of glovebox and various trims.
Unclip : The dashboard side trim (1) (at "a") using trim removal tools. Remove:
| Remove:
|
Remove the air conduit. Disconnect the connector (at "b") (Centralised airbag unit (6)). Remove bolts (8). Detach: The harness (7). | Remove the nut (10). Detach: The harness (9). |

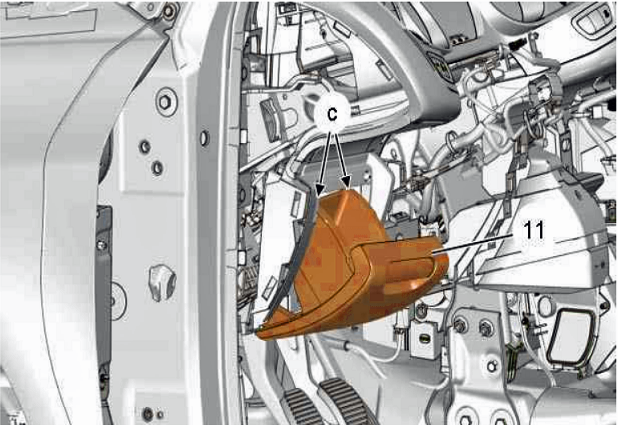

Open the glovebox (11). Unclip: The glove box (11) (at "c") using trim removal tools. | Unclip: The glove box (11) (at "d") using trim removal tools. Remove the glove box (11). |

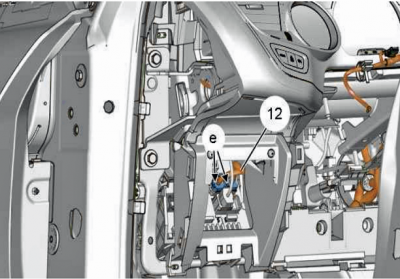

Disconnect the connectors (at "e"). Detach: The harness (12). | Disconnect the connectors (at "f") (Under the built-in systems interface). Detach: The harness (13). |
CAUTION: Do not close the driver’s door when bolt (14) is unscrewed (Risk of damaging the door). Unscrew the bolt (14). N.B. : Remove the drivers door to replace bolt (14) (if necessary). Remove:
| Remove the bolts (21). |
Remove the bolts (22). | Remove bolts (23) (Engine compartment). |
Unplug the connectors from the audio system connector (24) (at "g") (according to equipment). Liberate the wiring harness. | N.B. : For the following operation, 2 operators are necessary. Detach the dashboard (25) (following "h") (Carefully). CAUTION: Store the dashboard panel, placing it on a table and protecting it with bubblewrap. Remove the fascia (25) through the driver’s door (Carefully). |
Proceed in the reverse order to removal.
Tighten:
- The bolts (2), (5) to 0,2 ± 0,04 daN.m
- Screw (8) to 1 ± 0,16 daNm
- The nut (10) to 0,9 ± 0,1 daN.m
- Screw (14) to 2 ± 0,5 daNm
- The bolts (15), (22), (23) to 2 ± 0,5 daN.m
- The nuts (16) to 2 ± 0,4 daN.m
- Screw (17) to 0,85 ± 0,15 daNm
- The bolts (18) to 0,4 ± 0,1 daN.m
- The bolts (19) to 2 ± 0,4 daN.m
- The bolts (21) to 1,1 ± 0,6 daN.m
