Hi guys,
1. How to check if my car (peugeot 207 2007r) has Nomade/Kml Telematic Unit? Is anybody know where it is located? And why some cars had it fitted and others not? What did it depend on? It is possible to check it by VIN?

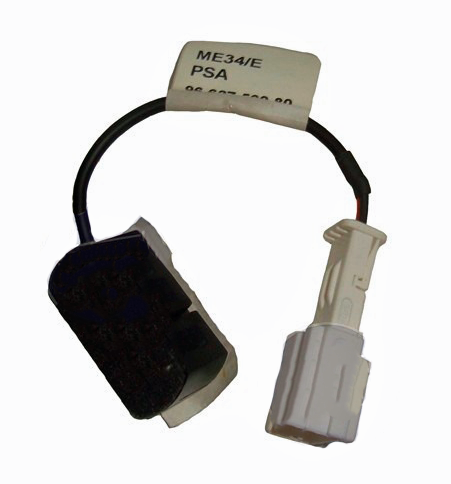

2. I bought a genuine microphone because i didn't have one. I connected mic to mic harness (violet arrow) that was orignally included in my car. My question is, where i can find the end of connect of this harness mic? I mean an extension that runs under the ceiling through the A-pillar. Should there be a cube at the end? Where does this cable end its course?
1. How to check if my car (peugeot 207 2007r) has Nomade/Kml Telematic Unit? Is anybody know where it is located? And why some cars had it fitted and others not? What did it depend on? It is possible to check it by VIN?
2. I bought a genuine microphone because i didn't have one. I connected mic to mic harness (violet arrow) that was orignally included in my car. My question is, where i can find the end of connect of this harness mic? I mean an extension that runs under the ceiling through the A-pillar. Should there be a cube at the end? Where does this cable end its course?
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37331
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Peugeot 207 - Nomade/KML, microphone
The Nomad unit was only fitted if the customer requested a hands free telephone option when new with the RD4 Head Unit. Bluetooth was not standard equipment until the RD45 came out, when there was no need for the Nomad as the RD45 had Bluetooth built into the Head Unit.
For vehicles with the Nomad, the Microphone connection will be connected to the hands free unit and from there will end up going to the Quad Lock connector via the loom. The Nomad unit is located somewhere inside the dashboard on the right hand side.
For vehicles with the Nomad, the Microphone connection will be connected to the hands free unit and from there will end up going to the Quad Lock connector via the loom. The Nomad unit is located somewhere inside the dashboard on the right hand side.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Peugeot 207 - Nomade/KML, microphone
I searched glove box but didn't find anything. So it means, the microphone connection is going straight to Quad Lock connector to my RD4? What if I upgrade my rd4 to rd45, the mic gonna work? I really care about the original hands-free kit.GiveMeABreak wrote: ↑29 Nov 2020, 21:35 The Nomad unit was only fitted if the customer requested a hands free telephone option when new with the RD4 Head Unit. Bluetooth was not standard equipment until the RD45 came out, when there was no need for the Nomad as the RD45 had Bluetooth built into the Head Unit.
