2010 citroen c4 grand picasso towbar

Post by Cam1972 »

I am looking to fit a towbar to my c4 grand picasso 2010 plate but can't find wiring diagrams with wire color codes for the rear light clusters so don't know what wires should be connected to the wires for the trailer plug.
Does any one have the diagrams for this please
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37009
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2010 citroen c4 grand picasso towbar

Post by GiveMeABreak »

We'll need your VIN first.
Please Don't PM Me For Technical Help

Marc
Cam1972
Posts: 4
Joined: 04 Jul 2020, 02:41
Location: Hull uk
My Cars: Citoren c4 grand piccaso

Re: 2010 citroen c4 grand picasso towbar

Post by Cam1972 »

GiveMeABreak wrote: 04 Jul 2020, 10:08 We'll need your VIN first.
VF7**************[VIN obfuscated, can be read by forum staff]
Cam1972
Posts: 4
Joined: 04 Jul 2020, 02:41
Location: Hull uk
My Cars: Citoren c4 grand piccaso

Re: 2010 citroen c4 grand picasso towbar

Post by Cam1972 »

V F 7*****************
Last edited by xantia_v6 on 04 Jul 2020, 19:57, edited 1 time in total.
Reason: VIN masked
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37009
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2010 citroen c4 grand picasso towbar

Post by GiveMeABreak »

Focus on the Pin assignments, not the wire colours as these can change.

Rear Light Cluster on the body:
Note the Common Earth is on Pin 3:

Brake:
Pin 2 Live

Reversing:
Pin 1 Live

Rear Tail / Side Light:
Pin 5

Indicators:
Pin 4

Fog Lamps These I believe are in the bumper area and these are on Pin 1 and the Earth on Pin 2.
Please Don't PM Me For Technical Help

Marc
Cam1972
Posts: 4
Joined: 04 Jul 2020, 02:41
Location: Hull uk
My Cars: Citoren c4 grand piccaso

Re: 2010 citroen c4 grand picasso towbar

Post by Cam1972 »

GiveMeABreak wrote: 04 Jul 2020, 21:42 Focus on the Pin assignments, not the wire colours as these can change.

Rear Light Cluster on the body:
Note the Common Earth is on Pin 3:

Brake:
Pin 2 Live

Reversing:
Pin 1 Live

Rear Tail / Side Light:
Pin 5

Indicators:
Pin 4

Fog Lamps These I believe are in the bumper area and these are on Pin 1 and the Earth on Pin 2.
What are the wire colors because I can't find reference to them anywhere.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37009
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2010 citroen c4 grand picasso towbar

Post by GiveMeABreak »

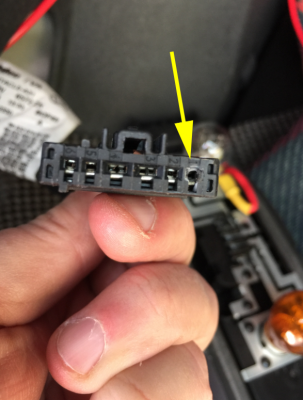

The pin numbers are marked on the black wiring plugs if you look carefully. As I said - the colours of the wires are often changed on PSA cars, so may not correspond. Always use the pin number as that is 100% accurate.

Look here for the numbers:
plug pin.PNG
Please Don't PM Me For Technical Help

Marc
bidreject
Posts: 1
Joined: 30 Dec 2021, 20:02
Location: England
My Cars: 2007 Citroen Grand C4 Picasso

Re: 2010 citroen c4 grand picasso towbar

Post by bidreject »

sorry for reviving an old thread. does this apply to Citroen c4 grand Picasso year 2007 as well?

so, i can just follow this guide to install a towbar or a reverse camera right using the pin numbers?

im new btw, do i need to intro myself anywhere.
Clemesha
Posts: 5
Joined: 20 Jan 2021, 09:38
Location: Palmyra Western Australia
My Cars: C4 grand Picasso 2008
407 Peugeot 2006
307 Peugeot
Mercedes sprinter van
914 Porsche
VW caddy

Re: 2010 citroen c4 grand picasso towbar

Post by Clemesha »

Thank very very much. I had been look and look at wiring diagrams. and in some cases there were multiple wires going through a connection pin the same colour. Your pin number System has solve the problem.
Just as an extra,
I want to put in daylight running lights and an indicator repeater at the front. Therefore one would just look for the plug pin numbers assuming pin number 4 again would be the indicator at the front of the car.
Best Wishes
Clemesha
