Part number help please.
Moderator: RichardW
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Part number help please.
When I still had free access to the parts info I was on there almost every week - usually just for info or interest. Once PSA started charging I thought I’d be completely lost however I had managed to save many pages of info to keep me going.
However now I’m looking for three part numbers and I hope you guys will be able to help me as I, very willingly, made my contribution. I have posted my C8’s VIN before, would you like me to repeat it ?
The parts numbers I’m looking for are for a front parking sensor (innner front right, if they are different) , the headlamp washer pump and for a torque converter. I just know the price of this last item will be more than the value of the car but I’d be interested to know the official price, if that’s possible.
Keep up the great work guys.
Cheers
Julian
However now I’m looking for three part numbers and I hope you guys will be able to help me as I, very willingly, made my contribution. I have posted my C8’s VIN before, would you like me to repeat it ?
The parts numbers I’m looking for are for a front parking sensor (innner front right, if they are different) , the headlamp washer pump and for a torque converter. I just know the price of this last item will be more than the value of the car but I’d be interested to know the official price, if that’s possible.
Keep up the great work guys.
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
Hi Julian, no worries I should of read your post properly first.
All the sensors are the same, but the sensor supports can be different.
They come in 2 options, either without paint or primed:
No Paint: 659095
Primed: 6590Q2
Windows Washer Reservoir: 6431C9
As for the gearbox - what exactly are you after? The complete box, the Hydraulic Block, Converter Casing?
This is the Hydraulic Block: Also let me know if you require current prices for any of these once you've confirmed gearbox part.
All the sensors are the same, but the sensor supports can be different.
They come in 2 options, either without paint or primed:
No Paint: 659095
Primed: 6590Q2
Windows Washer Reservoir: 6431C9
As for the gearbox - what exactly are you after? The complete box, the Hydraulic Block, Converter Casing?
This is the Hydraulic Block: Also let me know if you require current prices for any of these once you've confirmed gearbox part.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
Hi Marc
Thanks for such a speedy reply.
It’s actually the torque converter itself that I’m interested in. I’ve been told that the internal clutch is probably failing although I’ve got a nasty suspicion that they may not sell it separately

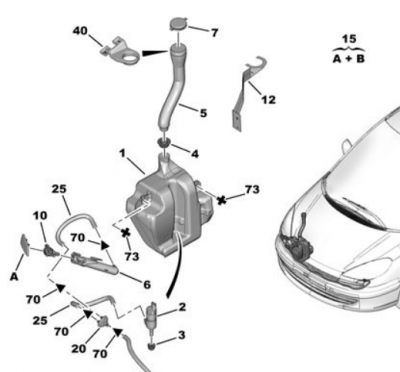

And sorry, it wasn’t the window washer reservoir I wanted but the pump for the headlamp washers that plugs into the reservoir.
As for prices, it’s only really the torque converter that I’d like - as I mentioned, I fear it’s probably more than the car’s worth, but it would be useful to know.
Cheers
Julian
Thanks for such a speedy reply.
It’s actually the torque converter itself that I’m interested in. I’ve been told that the internal clutch is probably failing although I’ve got a nasty suspicion that they may not sell it separately
And sorry, it wasn’t the window washer reservoir I wanted but the pump for the headlamp washers that plugs into the reservoir.
As for prices, it’s only really the torque converter that I’d like - as I mentioned, I fear it’s probably more than the car’s worth, but it would be useful to know.
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
Ok, so...
All prices current as of today from Citroen.
659097 Sensor is £134.02
6590Q2 Sensor is £133.96
The Pump (2) is 643477 £82.16 | AGB Converter (Marking 70A120) Part: 2001E7 £682.97 Bolt (M10X125-15,5 LG 20) (2) Part: 200826 ££4.44 |
659097 Sensor is £134.02
6590Q2 Sensor is £133.96
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
That’s great, thanks Marc.
That torque converter isn’t quite as expensive as I thought it might be !
Cheers
Julian
That torque converter isn’t quite as expensive as I thought it might be !
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
I forgot to mention - all prices VAT inclusive Julian.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
Julian Leyton (RIP) 2023
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
Sorry Marc, one other question if I may ?
Can you tell if the torque converter will be the same as one fitted into a 2009 Peugeot 807 with the same Aisin 6spd autobox and 173hp engine ? Unfortunately I don’t have theVIN of the 807.
Cheers
Julian
Can you tell if the torque converter will be the same as one fitted into a 2009 Peugeot 807 with the same Aisin 6spd autobox and 173hp engine ? Unfortunately I don’t have theVIN of the 807.
Cheers
Julian
Julian Leyton (RIP) 2023
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: Part number help please.
For a torque converter, also see Mackie who do quality rebuilds.
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
Thanks.
Luckily I’ve got a very well regarded converter rebuild company near to me, in case I go down that path. That’s why I’ve asked Marc the question above.
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
Hi Julian, yes identical part for the 807 with 2.2 175 engine.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
Thanks Marc,
I guessed it might be. That’s good news because I have one of those so, if it turns out my judder is a Torque Comverter Clutch problem, as it seems, then I can get the Peugeot one rebuilt and swap it straight into my car.
Citroen state that removal of the auto box requires removal of the whole power unit first, but I just wonder whether it might be possible to remove the auto box on its own. I feel there is a bit more space in the C8 than there is with this engine/box combo in a C5 or C6. Does anybody know ?
Cheers
Julian
I guessed it might be. That’s good news because I have one of those so, if it turns out my judder is a Torque Comverter Clutch problem, as it seems, then I can get the Peugeot one rebuilt and swap it straight into my car.
Citroen state that removal of the auto box requires removal of the whole power unit first, but I just wonder whether it might be possible to remove the auto box on its own. I feel there is a bit more space in the C8 than there is with this engine/box combo in a C5 or C6. Does anybody know ?
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
I wouldn't count on that Julian, officially, the engine comes out.....
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 258
- Joined: 31 Jan 2013, 22:05
- Location: Somerset
- My Cars: A brilliant C8 2.2 HDi 173
- x 37
Re: Part number help please.
I wouldn’t count on it either !
However I remember having to change the turbo lubrications and drain off pipes. Bear in mind that, with the twin turbos, it is a complex and twisted assembly and Citroen say the power unit needs to come out to replace it. Looking carefully at it, I thought, I’m not so sure - possibly might need a drive shaft removed. Anyway, I had a go and managed to change it all without even taking out the drive shaft, let alone the engine
But, as you say, I won’t count on being able to do it !
Cheers
Julian
However I remember having to change the turbo lubrications and drain off pipes. Bear in mind that, with the twin turbos, it is a complex and twisted assembly and Citroen say the power unit needs to come out to replace it. Looking carefully at it, I thought, I’m not so sure - possibly might need a drive shaft removed. Anyway, I had a go and managed to change it all without even taking out the drive shaft, let alone the engine
But, as you say, I won’t count on being able to do it !
Cheers
Julian
Julian Leyton (RIP) 2023
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37016
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: Part number help please.
There are shortcuts, but I'm not sure with this lump Julian - it's the first thing they say needs doing before coming on to the box. Good luck though if you're feeling brave!
