Rear Brake Drum
Moderator: RichardW
-
- Donor 2023
- Posts: 45
- Joined: 17 Apr 2020, 11:38
- Location: North Yorkshire
- My Cars: Black 2008 C1, 1KR-FE Engine. aka the GoKart
- x 2
Rear Brake Drum
Whats the bolt and pitch size for the two brake drums holes, Where you can insert a bolt to assist in removing the drums.
Kind regards
SlackGarry
Black 2008 C1, Petrol, 1KR-FE Engine. aka the GoKart
SlackGarry
Black 2008 C1, Petrol, 1KR-FE Engine. aka the GoKart
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum

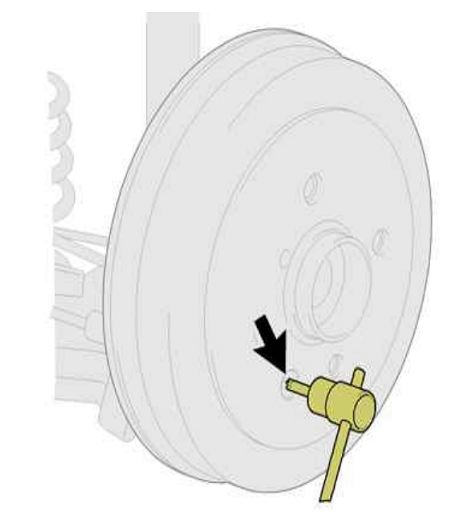

I assume this is for your C1... it just states to use a T30 Torx spanner to remove the screw, then slacken the parking brake before removing the drum.
When refitting, torque the screw to: 0.5 da.Nm, and the wheel bolts to 10 da.Nm
When refitting, torque the screw to: 0.5 da.Nm, and the wheel bolts to 10 da.Nm
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2023
- Posts: 45
- Joined: 17 Apr 2020, 11:38
- Location: North Yorkshire
- My Cars: Black 2008 C1, 1KR-FE Engine. aka the GoKart
- x 2
Re: Rear Brake Drum
Thats the one Marc and thanks.
There are two threaded holes on the drum where a bolt can be inserted too wind off the drums. Its those two im looking for.
One can be seen in your picture above. Just above your arrow, the other one is opposite that.
There are two threaded holes on the drum where a bolt can be inserted too wind off the drums. Its those two im looking for.
One can be seen in your picture above. Just above your arrow, the other one is opposite that.
Kind regards
SlackGarry
Black 2008 C1, Petrol, 1KR-FE Engine. aka the GoKart
SlackGarry
Black 2008 C1, Petrol, 1KR-FE Engine. aka the GoKart
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum
There are no dimensions / pitch listed for either screw Garry, and nothing mentioned about that for removing them in official notes, apart from what I mentioned in my last post.
Please Don't PM Me For Technical Help
Marc
Marc
- captainkephart
- Donor 2023
- Posts: 85
- Joined: 12 Dec 2019, 12:32
- Location: Borders
- My Cars: Citroen Xsara Picasso 1.6 DOHC petrol 2009
- x 4
- Contact:
Rear Brake Drum - won't come off
Hi all,
Citroen Xsara Picasso 2009 DOHC 1.6 Petrol, acquired last year at 90k miles. Goes well.
Time to check the state of front pads and rear shoes (nothing on service sheets for last 3 years, so overdue).
Can't get rear drums off. I assume a lip has worn inside the drums. Any tips for getting the drum off?
Another thread mentions the use of a puller, but can't work out what size or where you'd attach it (not much space at the back edge of the drum).
Handbrake cable adjuster has been loosened off. Loads of crud falling out of the drum gap vacuumed away so the drum turns freely till you try to lever it off.
Any tips suggestions appreciated. Can the back plate be released somehow?
Ciao, CapnK
Citroen Xsara Picasso 2009 DOHC 1.6 Petrol, acquired last year at 90k miles. Goes well.
Time to check the state of front pads and rear shoes (nothing on service sheets for last 3 years, so overdue).
Can't get rear drums off. I assume a lip has worn inside the drums. Any tips for getting the drum off?
Another thread mentions the use of a puller, but can't work out what size or where you'd attach it (not much space at the back edge of the drum).
Handbrake cable adjuster has been loosened off. Loads of crud falling out of the drum gap vacuumed away so the drum turns freely till you try to lever it off.
Any tips suggestions appreciated. Can the back plate be released somehow?
Ciao, CapnK
The secret of happiness is freedom - and the secret of freedom is courage ...
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum
Hi
Give me half an hour and I’ll put something up for you, and thanks very much for your Forum donation, much appreciated.
Give me half an hour and I’ll put something up for you, and thanks very much for your Forum donation, much appreciated.
Please Don't PM Me For Technical Help
Marc
Marc
- captainkephart
- Donor 2023
- Posts: 85
- Joined: 12 Dec 2019, 12:32
- Location: Borders
- My Cars: Citroen Xsara Picasso 1.6 DOHC petrol 2009
- x 4
- Contact:
Rear Brake Drum - won't come off
Hi GiveMeaBreak,
No problem, you guys are one of the best resources on the net.
Capn K
No problem, you guys are one of the best resources on the net.
Capn K
The secret of happiness is freedom - and the secret of freedom is courage ...
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum
Ok, so here you go, I've put it in our Resources section:
Xsara Picasso Rear Brake Drum - Removing & Refitting Guide
Xsara Picasso Rear Brake Drum - Removing & Refitting Guide
Please Don't PM Me For Technical Help
Marc
Marc
- captainkephart
- Donor 2023
- Posts: 85
- Joined: 12 Dec 2019, 12:32
- Location: Borders
- My Cars: Citroen Xsara Picasso 1.6 DOHC petrol 2009
- x 4
- Contact:
Rear Brake Drum - won't come off
Hi Marc,
Thanks, very detailed and helpful.
But it's the "In the event of problems removing a drum, insert a drift into the
hole " a" and push the handbrake lever to the side in order to remove the brake linings" that defeats me. Which side?
There was a similar comment in the manual I have, but I can't see anything to push, even when I turn the drum bit by bit from the 4 o'clock to 8 o'clock position and peer through the hole. Just the spine of the brake shoe ...
Obviously missing something
Ciao, Capn K
PS: Like the smiley, where'd that come from?
Thanks, very detailed and helpful.
But it's the "In the event of problems removing a drum, insert a drift into the
hole " a" and push the handbrake lever to the side in order to remove the brake linings" that defeats me. Which side?
There was a similar comment in the manual I have, but I can't see anything to push, even when I turn the drum bit by bit from the 4 o'clock to 8 o'clock position and peer through the hole. Just the spine of the brake shoe ...
Obviously missing something
Ciao, Capn K
PS: Like the smiley, where'd that come from?
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum
I think my iPhone replaced your name with a Captain Pugwash!
There's nothing else in the procedure, but looking at the handbrake adjustment, maybe this will help you see where the handbrake cable goes into the drum...
Click Image to Zoom
Not great pictures I know.
There's nothing else in the procedure, but looking at the handbrake adjustment, maybe this will help you see where the handbrake cable goes into the drum...
Click Image to Zoom
Not great pictures I know.
Please Don't PM Me For Technical Help
Marc
Marc
- captainkephart
- Donor 2023
- Posts: 85
- Joined: 12 Dec 2019, 12:32
- Location: Borders
- My Cars: Citroen Xsara Picasso 1.6 DOHC petrol 2009
- x 4
- Contact:
Rear Brake Drum - won't come off
Ok, thanks for the clarification,
I'll furtle around with it tomorrow, I think I get the idea ...
I'll furtle around with it tomorrow, I think I get the idea ...
The secret of happiness is freedom - and the secret of freedom is courage ...
- xantia_v6
- Forum Admin Team
- Posts: 9052
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: Rear Brake Drum - won't come off
I don't know if it helps, but I saw this slightly more verbose description:captainkephart wrote: ↑24 Aug 2021, 18:57
But it's the "In the event of problems removing a drum, insert a drift into the
hole " a" and push the handbrake lever to the side in order to remove the brake linings" that defeats me. Which side?
There was a similar comment in the manual I have, but I can't see anything to push, even when I turn the drum bit by bit from the 4 o'clock to 8 o'clock position and peer through the hole. Just the spine of the brake shoe ...
If difficulty is experienced, due to the shoes wearing grooves in the drum, insert a screwdriver through one of the wheel bolt holes and depress the handbrake lever on the rear brake shoe so that it slides back behind the shoe. This will retract the shoes and allow the hub/drum to be removed.
- xantia_v6
- Forum Admin Team
- Posts: 9052
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: Rear Brake Drum
I think I understand what they mean. If you look at this photo which I borrowed...
The shiny handbrake lever which sits behind the brake shoe which is to the right of the photo has a boss that rests against the brake shoe when the handbrake is released.
If the shiny lever is pushed back (through the wheel bolt hole) the boss will slide behind the brake shoe, releasing the handbrake, allowing the shoes to retract a little more than usual and the drum to be pulled off.
This show it from a different angle/;
The shiny handbrake lever which sits behind the brake shoe which is to the right of the photo has a boss that rests against the brake shoe when the handbrake is released.
If the shiny lever is pushed back (through the wheel bolt hole) the boss will slide behind the brake shoe, releasing the handbrake, allowing the shoes to retract a little more than usual and the drum to be pulled off.
This show it from a different angle/;
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 36998
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5645
Re: Rear Brake Drum
That's great finding that extra info Mike - I may replicate your comments and pictures as an addendum to the procedure as it's bound to crop up again.
Please Don't PM Me For Technical Help
Marc
Marc
- captainkephart
- Donor 2023
- Posts: 85
- Joined: 12 Dec 2019, 12:32
- Location: Borders
- My Cars: Citroen Xsara Picasso 1.6 DOHC petrol 2009
- x 4
- Contact:
Rear Brake Drum - won't come off
Hi,
Furtling didn't work, there must be quite a groove in the drum.
But will now try the 'shiny handbrake lever' technique ... thanks for the photo, helps a lot ...
Wow, that's quite a wrecked rear brake photo! Mud?
Ciao, Capn K
Furtling didn't work, there must be quite a groove in the drum.
But will now try the 'shiny handbrake lever' technique ... thanks for the photo, helps a lot ...
Wow, that's quite a wrecked rear brake photo! Mud?
Ciao, Capn K
The secret of happiness is freedom - and the secret of freedom is courage ...
