Upgrading standard headlights to facelifted headlights with LED DRLs

Post by DanCD »

Hi guys,

I was wondering if any one could help me. I have a Citroen C4 1.6 VTi 120 Exclusive 2011 and am wanting to update it a little bit in any way I can. Does any one know or have any experience with changing the standard headlights which are all halogen:

https://en.wikipedia.org/wiki/Citro%C3% ... pertal.jpg

To the ones of the facelifted C4 which have the LED drl, like these:

https://www.autoexpress.co.uk/citroen/c ... t-pictures

I've done a lot of reading around on different forums and websites and can't seem to find a clear answer as most people just want to upgrade their halogen headlights for LEDs. I would just like to know if it at all possible, would it be a case of plug and play or would there be any extra work involved?

Any help on the matter would be greatly appreciated.

Cheers,
Dan
Dan
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by GiveMeABreak »

These are some of the reasons why you wont get a clear answer.

For this C4 there are 3 types of headlight units, one in particular for the Coupe.

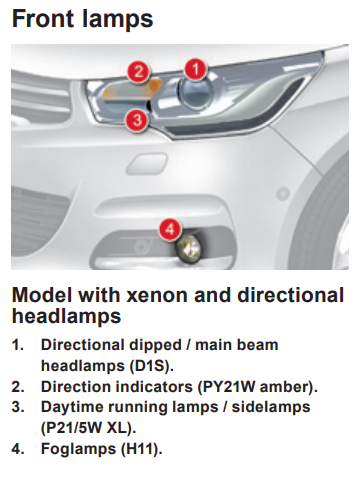

A Xenon directional headlamp with standard halogen bulbs for indicators and DRLs.
A Halogen headlamp standard DRL and DRL / Sidelamps
A Halogen headlamp with LED indicator and LED DRL lamps.

The standard halogens lamps have specific harnesses in place for those lights.
Directional Xenons require a different harness and power supplies, ECU for levelling, body height sensors and configuration, plus wash wipe headlamp system (although the halogen versions may also have this fitted). It is such a lot of work and expense that it's the reason why it is rarely done.

They each have a different wiring harness and the BSI will need to be configured correctly too.

It's usually such a lot of work / expense it is rarely done.
C4 Lamps A.PNG
C4 Lamps B.PNG
C4 Lamps C.PNG
Please Don't PM Me For Technical Help

Marc
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by white exec »

If your existing headlights are halogen, try upgrading to either Philips X-treme, or Osram Nightbreaker.
Both are halogen, standard wattage, fitting and beam shape, but very much higher light output than standard halogen. For best (pure white) output, go for the white versions, and not those with an all-over blue tint. Service life pretty much the same as standard - several years.

Xantia and XM owners found out about these extraordinarily good bulbs some time ago, when doing something about indifferent dipped beam.

Beware fakes, though. Genuine ones have a hologram pack, iirc.
Chris
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by Paul-R »

white exec wrote: 16 Apr 2020, 13:07Service life pretty much the same as standard - several years.
Not my experience I'm afraid. I fitted Osram Nightbreaker Unlimited +110% bulbs to both the C5 X7 and 308. One year and one day later (!) one of the dipped beam bulbs in the X7 failed. Then the other one went eleven months later.

I think it's pretty well largely agreed that the brighter bulbs have a second cost besides the price and that's shorter life. Although I wasn't expecting it to be quite that short!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by GiveMeABreak »

I have to agree there. If we look at Osram's bulbs in my table below, you'll see that the brighter they are the less life they have compared to a standard halogen. The intense blue seem worse for the gain.
Osram Silver.PNG
Osram Laser.PNG
Osram Blue.PNG
Nightbreaker Silver
+100% brighter = 75% of the life of their Standard Bulb.
Nightbreaker Laser
+150% brighter = 50% of the life of their Standard Bulb.

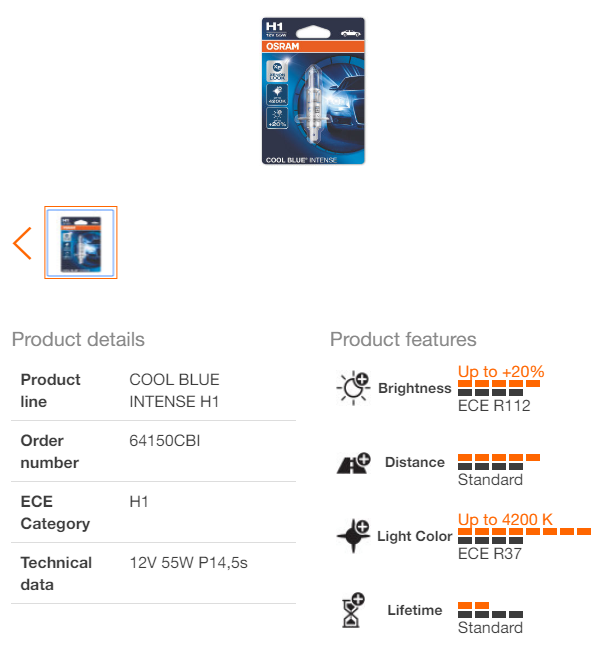

Cool Blue Intense
+20% brighter = 50% of the life of their Standard Bulb.
The exception to this of course are the true Xenon discharge bulbs, which seem to last forever - and so they should given the price! I think I replaced my D1S bulbs about 5 years ago for the Xenarc Unlimited and they are still as good as day 1.
Please Don't PM Me For Technical Help

Marc
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by white exec »

Maybe I've been lucky, but all the Nightbreaker and X-treme bulbs I've used (on two vehicles) have just soldiered on and on. Replaced some pairs just because of old-age (like 4-5 years old).
There are many fakes about, so I've been careful always to buy in pukka packs (of 2), with the genuine hologram. Usually avoid anything conspicuously cheap.
Philips X-treme.JPG
These were the last ones I bought - Amazon.es, Jan.2018 - and fitted immediately. Still aok.
Chris
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by wheeler »

I’ve tried 2 sets of nightbreakers now (regular first then laser), the light output is great however neither set lasted more than 3 months. Only about 25% of the driving is nighttime. I wouldn’t buy them again based on this as they are too expensive to be replacing every 3 months.
Both sets came from (different) official retailers & certainly appeared genuine with all the holograms & seals etc.
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by Hell Razor5543 »

I have been using the more powerful bulbs that Lidl do every so often. Typically £5 a pair, they are somewhat brighter, but also seem to have a decent lifespan.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
DanCD
(Donor 2021)
Posts: 27
Joined: 15 Dec 2019, 14:15
Location: Nottingham, UK
My Cars: CITROЁN C4 II Hatchback 1.6 VTi 120 88 kW/120 HP from 2011

Re: Upgrading standard headlights to facelifted headlights with LED DRLs

Post by DanCD »

Thank you for all of your replies! I think i'll have to stick with the current headlights and just upgrade the bulbs and take a look at the ones you have suggested

Thanks again!
Dan
