Hello
I'd like to ask if there is a way to adjust the front suspension height. I 'd like to make it a like bit lower , when it is at the normal state. When I see it at the normal state, it seems to be a little higher than the rear height. I know , that this is the normal geometry of the car, but it looks so ugly to my eyes... So, is there a way to adjust only the front suspension? Has anyone done it so far? If there is a way, and I low it 2-3cm at the front, will I have any problems?
Thanks in advance for your answers!
Citroen Xantia X2 suspension height instructions needed
Moderator: RichardW
- Nick Orfanidis
- Posts: 28
- Joined: 18 Jan 2020, 16:17
- Location: Athens, Greece
- My Cars: Citroen Xantia X2 (1.8i)
- x 3
- Contact:
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Citroen Xantia X2 suspension height instructions needed
Hi Nick,
Height going out of adjustment is not unknown. Could also be a height-corrector linkage problem.
You should set it to factory-correct height. If you modify the Normal ride height by as much as you suggest, there is a danger of the hydraulic suspension struts not being able to cope, and coming up against their end (limit) stops.
Someone here should be able to post the manual pages for height checking.
Height going out of adjustment is not unknown. Could also be a height-corrector linkage problem.
You should set it to factory-correct height. If you modify the Normal ride height by as much as you suggest, there is a danger of the hydraulic suspension struts not being able to cope, and coming up against their end (limit) stops.
Someone here should be able to post the manual pages for height checking.
Chris
- Nick Orfanidis
- Posts: 28
- Joined: 18 Jan 2020, 16:17
- Location: Athens, Greece
- My Cars: Citroen Xantia X2 (1.8i)
- x 3
- Contact:
Re: Citroen Xantia X2 suspension height instructions needed
Thanks Chris!
The height is set at the factory settings. It hasn't gone out of the factory adjustment. I just wanted to low it a little bit. But if it will bring me problems, to the suspension functions, i'll leave it as it is. Especially , here in Greece, where the roads are not in very good condition....
The height is set at the factory settings. It hasn't gone out of the factory adjustment. I just wanted to low it a little bit. But if it will bring me problems, to the suspension functions, i'll leave it as it is. Especially , here in Greece, where the roads are not in very good condition....
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Citroen Xantia X2 suspension height instructions needed

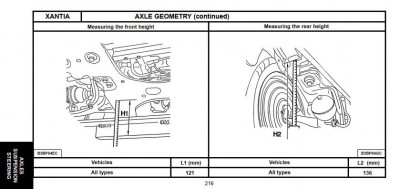

Ride height info here, if you need it...
↓ click to enlarge The full booklet is here - click on Xantia S2 2001 to download the complete Citroen pdf booklet:
viewtopic.php?p=590278#p590278
You could probably get away with lowering by 1cm at the front, if needed, but I wouldn't recommend any more.
↓ click to enlarge The full booklet is here - click on Xantia S2 2001 to download the complete Citroen pdf booklet:
viewtopic.php?p=590278#p590278
You could probably get away with lowering by 1cm at the front, if needed, but I wouldn't recommend any more.
Chris
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: Citroen Xantia X2 suspension height instructions needed
Be aware that on an older car, the static height when parked is often higher than the running height, because the anti-sink valve closes before the suspension has settled after switching off the engine (and the driver has moved his weight out of the car). This leads to a nose-up attitude when the car is parked, more commonly found on cars with hydractive suspension due to valves with internal leakage.
The front ride height (while driving) is fairly critical to the suspension geometry, good ride and driveshaft life, so I would not recommend moving from the factory settings. the rear height probably is not as critical.
The front ride height (while driving) is fairly critical to the suspension geometry, good ride and driveshaft life, so I would not recommend moving from the factory settings. the rear height probably is not as critical.
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: Citroen Xantia X2 suspension height instructions needed
The Carlson Version was set lower.
Looked it up once, the only difference was the length of the dog bones
Looked it up once, the only difference was the length of the dog bones
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
