Radio Aerial Antenna C5

Post by xf1ref »

Hello Everyone,

I have a strange noise from the back side of the roof panel in the area where is the aerial antenna. On Citroen service I saw that the aerial base is fixed with a nut from the roof.
I'm wondering if there is a way to remove the aerial antenna base without removing the whole roof panel? If not, does anyone know if the roof panel is glued or how can be removed?
User avatar
myglaren
Forum Admin Team
Posts: 25365
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: Radio Aerial Antenna C5

Post by myglaren »

On earlier C5s at least, the aerial is accessed through the rear interior light assembly.
Have a look and see if your's line up.
User avatar
xf1ref
Posts: 206
Joined: 20 Feb 2012, 05:42
Location: Romania
My Cars: C5 2.0 HDI 163hp
x 10

Re: Radio Aerial Antenna C5

Post by xf1ref »

I have removed the rear light but there is some kind of frame made of foam. Is called ROOF WEDGE on diagram from service citroen.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Radio Aerial Antenna C5

Post by GiveMeABreak »

Unfortunately it's a bit more involved on the X7, so I would definitely check the units in the first part of the procedure below, in case they are faulty.

Radio Aerial Units Only:

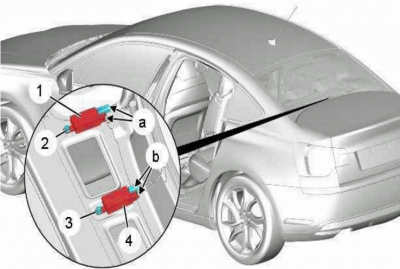

Rear A.PNG
Disconnect the connectors ( as "a", "b").

Remove:
  • The bolts (2), (3)
  • The audio equipment aerial units (1), (4)
Radio Aerial


Remove:
  • The rear shelf
  • The quarter panel lower trims
  • The rear screen pillar trims
  • The quarter panel trims (Rear )
Partly release:
The headlining
Rear B.PNG
Rear C.PNG
Disconnect the connectors (At "c" and "d").
Release the harness (5) (Radio aerial) ( as "e").
CAUTION: Always replace the headlining if
there is any damage or marking.

Release the harness (5) (Radio aerial ( as "g").
Move aside the headlining (6).
Release the harness (5) (Radio aerial) ( as "f").
Rear D.PNG
Rear E.PNG
Move aside the headlining (6).
Unclip: The fixing ( as "j") using trim tools.
Release the harness (5) (Radio aerial) ( as "h").
N.B.: Gain access between the headlining (6)
and the roof crossmember (7) (In the direction of the arrow ).
Move aside the headlining (6).

Unclip: The mountings ( as "k") using trim tools.
Release the harness (5) (Radio aerial).
Rear F.PNG
Rear G.PNG
N.B.: Gain access via the rear courtesy light lamp.
Cut: The soundproofing (8) ( as "l").
Move aside the headlining (6).
Remove the nut (9).
Rear H.PNG
Detach and remove: The audio equipment aerial (10)
and the audio equipment aerial harness (5),
(In the direction of the arrow ).
Notes:

CAUTIONS:
  • Guarantee the sealing between the base and the roof to prevent the entry of water.
    As the roof light is located near the base, poor sealing could result in short circuits.
  • Take care to reposition the harness correctly when refitting the nut (9).

Apply a continuous bead of mastic, approximately 0.5 mm thick, to the audio equipment aerial base (10) (Index: "A1").
Proceed in the reverse order to removal.
Tighten:
  • The bolts (2), (3) to 0,8 da.Nm
  • The nut (9) to 0,8 m.daN
2 minute job as you can see :-D
