2011 C3 Picasso 1.4 16v - Hydraulic clutch?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
User avatar
Michel
(Donor 2022)
Posts: 2207
Joined: 29 May 2017, 13:50
Location: Nothanks
My Cars: Some cars and a motorbike
x 659

2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Michel »

Gentlemen, most likely Marc..

Can you get details of the clutch operation on my new C3 C3 Picasso please?

No vin until tomorrow as it's all with the car. Reg is ;


Clutch got lower and lower driving around London tonight. That was fun. Then I couldn't get gears at all. Limped out onto the A4 and managed to gently drive home. Green Flag are dropping it at the dealer tomorrow who will sort it but I'd like to know what to pull them up on and check what they've done.

Thanks!
Last edited by GiveMeABreak on 22 Jan 2020, 09:10, edited 1 time in total.
Reason: Reg Removed
RichardW
Forum Treasurer
Posts: 10813
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by RichardW »

Must be hydraulic - there are no cables listed for any C3 Pic versions.
Richard W
User avatar
Michel
(Donor 2022)
Posts: 2207
Joined: 29 May 2017, 13:50
Location: Nothanks
My Cars: Some cars and a motorbike
x 659

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Michel »

Thanks Richard, I thought so. I could have simply looked under the bonnet last night but it was dark, cold and I wasn't in the mood :)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by GiveMeABreak »

Michel wrote: 22 Jan 2020, 00:28 Gentlemen, most likely Marc..

Can you get details of the clutch operation on my new C3 C3 Picasso please?

No vin until tomorrow as it's all with the car. Reg is ;


Clutch got lower and lower driving around London tonight. That was fun. Then I couldn't get gears at all. Limped out onto the A4 and managed to gently drive home. Green Flag are dropping it at the dealer tomorrow who will sort it but I'd like to know what to pull them up on and check what they've done.

Thanks!
Yes, hydraulic Clutches on these. I have the VIN, so removed your Reg. C3 PICASSO FAMILY SALOON 1.4 VTi 16v 95 Manual gearbox 5.

However, apart from the usual checks there was also a Technical Service Bulletin for these. Specifically, it is where gear changing is difficult / impossible.. Caused by Electrolytic fluid from the battery which can leak / spill onto the hydraulic clutch pipe. So a check is needed to see if the pipe has been holed and if so, replaced.

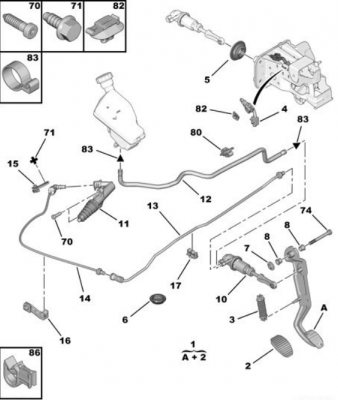

Mike Clutch.PNG
Please Don't PM Me For Technical Help

Marc
User avatar
Michel
(Donor 2022)
Posts: 2207
Joined: 29 May 2017, 13:50
Location: Nothanks
My Cars: Some cars and a motorbike
x 659

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Michel »

Thanks Marc. It's now back at the dealer :)
User avatar
Michel
(Donor 2022)
Posts: 2207
Joined: 29 May 2017, 13:50
Location: Nothanks
My Cars: Some cars and a motorbike
x 659

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Michel »

Could someone possibly give me a part number and a price for the clutch slave cylinder please?

Book time for the job to change it please also - is it a gearbox out job or is the cylinder external? I can't look as the car is at the dealer. He's had it 6 days. I'm seriously considering rejecting it as he's not returning my calls or emails either.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by GiveMeABreak »

Book is about an hour for the Clutch slave Cylinder alone.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by GiveMeABreak »

Book time is about an hour for Clutch Slave Cylinder alone.

Part number: 2182E1, currently priced at £59.63 inc. from Citroen.

Item (11)
No gearbox out from what I can see - that's only required for the clutch itself.
Please Don't PM Me For Technical Help

Marc
User avatar
Michel
(Donor 2022)
Posts: 2207
Joined: 29 May 2017, 13:50
Location: Nothanks
My Cars: Some cars and a motorbike
x 659

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Michel »

Wonderful, thanks Marc! Most helpful!
Sharkie
Posts: 29
Joined: 26 Jan 2020, 20:59
Location: Croatia
My Cars: Peguot 306
x 1

Re: 2011 C3 Picasso 1.4 16v - Hydraulic clutch?

Post by Sharkie »

Just check if there's enough fluid first. It uses either brake fluid or has it's own container.
