2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Hello.
I have failed to find a Haynes manual for my 2008 C5 exclusive Tourer, it appears they stopped making them just before this year/model appeared.

Can anyone advise of a source for the wiring diagrams so that i can see what feeds what?

Many thanks. :-D
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

We don’t supply diagrams and they’re not publicly available, but I can post the odd one up as specifically needed for a particular system.
Please Don't PM Me For Technical Help

Marc
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Thanks Marc.

I think at this stage something showing what ECU connects to which ECU. It would aid fault finding these "no communication" messages for a start.
Permanent stored faults I'm getting are ...... No communication with Audio Unit, and, "Passenger and drivers door mirror mechanism sensor inputs - short circuit to Earth or short circuit to Positive (09D1 and 09D0). BTW the mirrors seem to work perfectly but the fault wont clear?

Thanks.
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Oh, and I've PM'd you again.

Thanks
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

There is a known issue with the driver door mirror control module on some early models that is intermittent and can be ignored.

Get your Lexia up and running first and then run a full test and see which one are remaining.
Please Don't PM Me For Technical Help

Marc
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Lexia 3 connection failed and gives the report “No dialogue” on the global test. I have opened the Lexia and can confirm that at least six chips are missing.
Now looking to source a fully chipped version but it’s not so straightforward. Several of the supposed fully chipped models on eBay will only work on petrol vehicles (small print). Looks like it’s Easy Diagnostics and not much else!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

The market is fraught with copies of varying quality.... - have you considered making Darren an offer?

viewtopic.php?t=64457
Please Don't PM Me For Technical Help

Marc
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Thanks Marc.

I’ll have a look at that over a cuppa. I have managed to find two other people supplying the “real deal” at a lower price. 🤔
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Lower than £118 I meant. 🤦‍♂️
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Right, further to my earlier post, I am now consistently getting the same fault messages which refuse to clear having used 3 independent (and very expensive) professional diagnostic machines. The two that are really peeving me at the moment are “No communication with Audio ECU”, and, “Rear right hand side light short circuit to + or -“.

The reason they peeve me is that the rear right hand tail lights work perfectly and have no short, and the the infotainment system works great unless you try and run it with the ignition off, in which case it complains quite literally that “Something in the car isn’t working and I must shut down”!.

Would anyone have the location and diagram of whatever box controls the lights and a diagram showing the comms path for the audio ECU.

Many thanks.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

First check to make sure you don't have any LED bulbs fitted (possibly by the previous owner), these will almost guarantee a short circuit error....

There's not much you can do - these are controlled by the BSI, except check the earths (shown where 'MC' is on the wiring code)

For other codes, check out the Wiki page where I have put the most common codes:

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

Diagram for rear Tail Lights:


2635 : Rear RH tail lamp on Body
2632 : LH tail lamp on boot lid
2630 : Rear LH tail lamp unit on Body
2631 : RH tail lamp on boot lid
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

RT4 Telematics Unit:

8480: Telematics Unit

Please Don't PM Me For Technical Help

Marc
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Thank you Marc.

Re LED bulbs, the previous owner had fitted these to the front sidelights only. One had already failed and the other was on its way so I replaced them immediately with the blue coated krypton ones which give a nice white light.
The rear had normal bulbs in but the ones in the tailgate had blown so I replaced those with the standard filament bulbs. Despite numerous attempts the fault code won’t clear. I fitted what I assume were “standard” single filament bulbs in the tailgate unlike the dual filament stop/tail bulbs in the main car body. Can’t remember the exact wattage but I wonder if they should have been specials?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by GiveMeABreak »

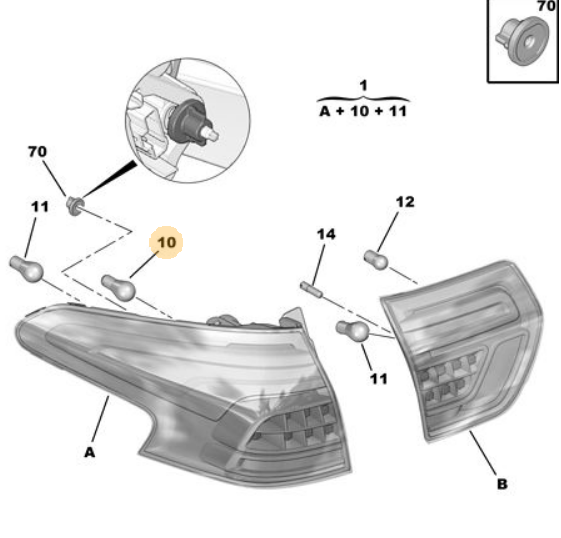

Which ones did you replace on the diagram Gerald?
X7 lights.PNG
Please Don't PM Me For Technical Help

Marc
Jetjockey
Posts: 129
Joined: 02 Jun 2019, 22:15
Location: South Wales
My Cars: Citroen C5
x 3

Re: 2008 C5 2ltr hdi 138Bhp wiring diagrams.

Post by Jetjockey »

Oooh err!

Trying to remember but almost certainly bulb No 11 on assy B (tailgate). I think bulb no12 is the hazard lamp. BTW, all of the lights work perfectly despite the fault codes.
