Towbar wiring on 2008 Relay van.
Moderator: RichardW
-
- Posts: 85
- Joined: 25 Jan 2010, 18:45
- Location:
- My Cars:
Towbar wiring on 2008 Relay van.
Fitted towbar OK - its a Brink one and very simple fitting. But I've got a problem with the wiring. Connected into the correct wires close to the rear light units. Indicators work fine on both sides, but I've got a problem with the side and brake lights. When the lighting board is connected into the towing socket the sidelights come on for about 5 seconds then go off / switch off lights, switch back on, lights on for 5 secs etc ad infinitum...... It does the same on both the lighting and brake light circuits. Any ideas where to start looking in order to rectify the problem. Many thanks for any assistance.
1991 BX Millesme Diesel, 1999 Citroen Saxo diesel, 1985 Visa Cabriolet, Citroen C15 pickup,1991 Hymer B534 camper with Peugeot J5 power, 1999 Isuzu Trooper, loads of mopeds!
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Towbar wiring on 2008 Relay van.
We'll need your VIN in order to check the correct lighting circuit.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 85
- Joined: 25 Jan 2010, 18:45
- Location:
- My Cars:
Re: Towbar wiring on 2008 Relay van.
VF7**************[VIN obfuscated, can be read by forum staff] is the VIN no.
Thanks
Thanks
1991 BX Millesme Diesel, 1999 Citroen Saxo diesel, 1985 Visa Cabriolet, Citroen C15 pickup,1991 Hymer B534 camper with Peugeot J5 power, 1999 Isuzu Trooper, loads of mopeds!
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Towbar wiring on 2008 Relay van.
Ok, just so you know, data for the Relay and Boxer vans is slightly better than useless - probably because these are Fiats / Ford combos with nothing Citroen or Peugeot in them. The wiring numbers are non-descript so I cannot provide you with specifics - but you should be able to work out what is what. I will show these individually for each lamp - once you identify the earths, the remaining should be the power.
Brake Lamps:
Rear Sidelights
Reversing Lights
Fog Lamps
Hopefully this is what you need.
Brake Lamps:
2630: rear LH lamp unit on the body 2635: right-hand tail lamp 2110: additional brake lamps So anything 'MC' is an earth point - MC69, MC70 etc. |
2630: Rear LH lamp unit on the body | 2635: right-hand tail lamp |

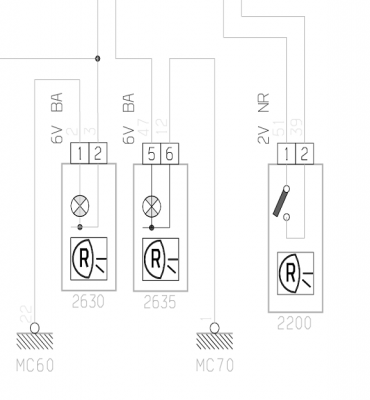

2630: Rear LH lamp unit on the body 2635: Right-hand tail lamp 2200: Reverse lamp switch |
