Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by morto »

Thanks marc its not calibrated anyway so it doesn't make any difference ...
2002 2.2hdi C5
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by GiveMeABreak »

Here you go - you did ask! :-D

First, it's essential to disconnect battery negative and prevent it retouching the terminal - but simpler to follow the Battery Disconnect procedure:

Battery Connect / Disconnect ECU Reset Procedure

When working with Airbag components leave a minimum of 10 minutes after battery disconnection for Airbag ECU energy dissipation.

Recommendations are that the central console trim be removed, so that the footwell air duct can be slid back to reveal the Airbag ECU. Disconnect the connectors (which may need the ECU bolts undone).
Morto Airbags A Footwell.PNG
Morto Airbags B Footwell.PNG
Slide towards 'a' first, then 'b'......to reveal the Airbag ECU
Note: When later reconnecting, always attach the earth connector first, then tighten the bolts (2) to 0.8 m.daN
Morto Airbags C Footwell.PNG
Next there is a recommended tool to lock the fixed centred controls steering wheel
Put the wheels in the straight ahead position
Morto Airbags D Footwell.PNG
Morto Airbags E Footwell.PNG
Remove:
  • The bolts (2)
    The steering column upper half cowl (1)
Release: The steering column lower half cowl (3).
Disconnect the supply connector of the headlamp beam corrector (at "a").
Remove the steering column lower half cowl (3).

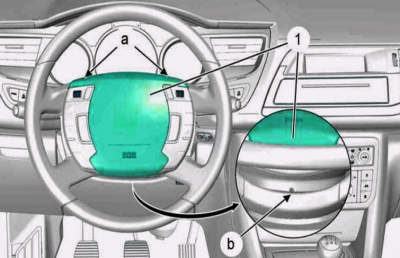

Engage a pin punch (6 mm diameter) in the opening ( as "b").
Compress the retaining spring using a pin drift.
Unclip the airbag (1) (pull towards you) ( as "a").
Detach the driver’s air bag (1).
Morto Airbags F Footwell.PNG
Morto Airbags G Footwell.PNG
ESSENTIAL: When removing an airbag, disconnect the supply connector first.
Disconnect the connectors (Driver’s airbag ) ( as "c").
Remove the driver’s air bag (1).
Remove bolts (4).
Morto Airbags h Footwell.PNG
Morto Airbags I Footwell.PNG
CAUTION: Do not hit the steering wheel with fixed central controls.
Fit the tool [9702-T] before removing the fixed centred controls steering wheel.


Immobilise the steering wheel with fixed in central controls (6) using tool [9702-T].
Clip the tool [9702-T] at "b" on the fixed centred controls steering wheel (6).
Remove the 3 nuts (5).
Release: The steering wheel with fixed central controls (6).

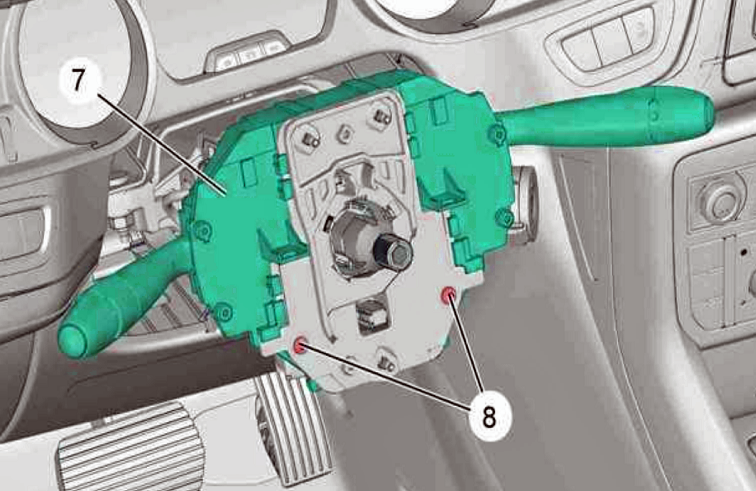

Remove the bolts (8).
Release: The controls module at the steering wheel (7).
Morto Airbags J Footwell.PNG
Morto Airbags K Footwell.PNG
Unplug te steering wheel control module connectors (7) (at "c").
Remove the steering wheel with fixed central controls (6).
Unclip the steering wheel angle sensor (1) at "a".
Morto Airbags L Footwell.PNG
Morto Airbags M Footwell.PNG

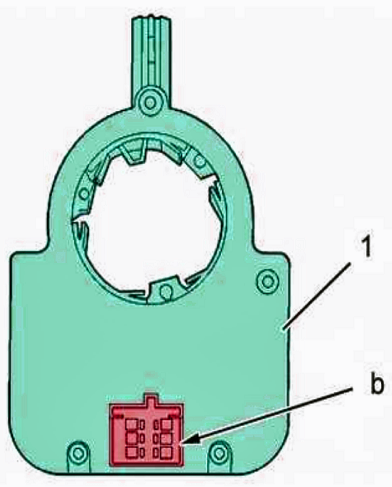

Disconnect the connector at "b" behind the steering wheel angle sensor (1).
Remove the steering wheel angle sensor (1).
refitting:

Refit the steering wheel angle sensor (1).
N.B.: Align the foolproof "c" of the steering wheel angle sensor (1) with the groove "d" of the steering column (2).
Connect the connector ( as "b").
Clip on the steering wheel angle sensor (1) ( as "a").
Refit
The steering wheel with fixed central controls
The driver’s air bag
Please Don't PM Me For Technical Help

Marc
morto
Posts: 99
Joined: 24 Dec 2012, 14:35
Location: Cumbria
My Cars: Citroen c5 , Audi A3 S line TDI

Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by morto »

Many Thanks.. even with all this information its incredibly hard to track this down I don't think its wiring issue I think it is one of many ECU,s what makes this hard is the fact the first thing on the dash is faulty braking system put Lexia points to just about nothing on the braking system and does not ever put a ABS light on, so Lexia says all faults are on the ESP81 , and the main thing has to be no communication with the gyrometer, so ive tried 4 second hand units and all say the same so I don't think the issue lays with the gyrometer , so the only credible thing Lexia tells me is that the steering wheel angle sensor is Faulty and will not calibrate up , remember that if there is no coms with gyrometer evidently you cant calibrate the SWAS, so ive got to try changing the SWAS first and if that makes no difference then its could be the ESP/ABS unit ..it could be the BSI, it could be the main fusebox, or the Main ecu see what I mean there is just to many variable's.. next stop is the scrap yard....
2002 2.2hdi C5
morto
Posts: 99
Joined: 24 Dec 2012, 14:35
Location: Cumbria
My Cars: Citroen c5 , Audi A3 S line TDI

Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by morto »

quick update on this is its not to hard to get the SWAS off following the above from marc, im just waiting for my second hand one to arrive and then if that doesn't work im going to look into the ABS/ESP Unit
2002 2.2hdi C5
morto
Posts: 99
Joined: 24 Dec 2012, 14:35
Location: Cumbria
My Cars: Citroen c5 , Audi A3 S line TDI

Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by morto »

Ok part arrived today and it's made no difference so I can at least say it's not the SWAS even tho Lexia states its faulty,, so Lexia reports all issues are with the ESP 81 I can say it's not the gyrometer or the SWAS so its comes down to I think ..no communication with the gyrometer so what's the next step.. well canbus,, fusebox, BSi.. it may just be to much to track down
2002 2.2hdi C5
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: fuse box under the bonet c5 x7 2.2hdi PSA

Post by GiveMeABreak »

It's very frustrating, without having a CAN diagnostic circuit checker - so many of these systems are integrated on the data network. Pinpointing where the fault is can be very difficult without the specific kit. This will be invaluable to others if you manage to isolate the fault.
Please Don't PM Me For Technical Help

Marc
