DS5 Interior Blower dead

This is the Forum for all your DS Automobiles Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

DS5 Interior Blower dead

Post by Gaz83 »

Hi Everyone, first time post, and needing some advice,

After 18 months of carefree enjoyable driving, my DS5 is starting with issues. the main one being the Heater

The interior heater has finally given up the ghost after being intermittent. if ran on full it would cut out, but its been running if not on top speed.

Then, its finally given up the ghost and wont come on at all, on any speed, heat, or vent

at -6 degrees this morning my commute is became difficult

Any suggestions as to the cause? Ive tried to research myself and maybe its the heater resistor? Whereabouts is this on the car> Mines an RHD 2013 165bhp 2.0 HDI

There is some heat coming out of the vents, but this isnt being pushed out by the fan.

So, how do I fix it? Like I said this has been coming on for a while, but now its cold, I need the heaters on!
Any advice is appreciated.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: DS5 Interior Blower dead

Post by GiveMeABreak »

Hi and Welcome

First off pop your VIN up - we need to see exactly what options your DS5 is fitted with.

There are several possibilities, but will depend on options fitted:
  • If the Blower control module is faulty, usual symptoms are full blast or nothing.
  • There may be a supplementary air heating resistance unit which helps provide some heat until the engine warms up. - but this is separate to the blower control module.
  • Lastly, the bearings of the blower motor itself can get a little moisture, that can seize them in between use. *see note below
  • The Climate / Heater Control ECU may be faulty.
* Because the heater systems (depending on version) are designed to gradually increase the fan speed as the temperature rises, it is rarely enough to start the fan off if the bearings are seized. Shunting the control wires on the unit to give it a full power can free the motor until the next time it happens - but this is only a temporary solution and is not recommended for long term use.

Initially, and without further diagnostics. it may be likely the blower control module could be the culprit.

Once I have your VIN I can put a diagram up for it.
Please Don't PM Me For Technical Help

Marc
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

Hi Marc, thanks for the prompt reply! I will add the VIN when I get home

A couple of weeks ago, the fan would cut out if on full speed for a few seconds, but run fine on lower settings, with same high heat.

And its got worse then to now nothing at all, so I think its a part thats depreciated, or lost connection somewhere, which is why I was looking to replace the resistor first, due to similar occurrences I have read on the Citroen C5
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: DS5 Interior Blower dead

Post by GiveMeABreak »

Initially it sounds like the Blower Control Motor, but... unusual if it has been operating across speeds intermittently - the resistance component of the blower control motor will normally work or not if it has gone, hence the all or nothing scenario...

The air heating resistance is a completely separate component and won't have anything to do with the fan speeds - that will just refuse to provide any air heating when it goes, relying solely on engine temp, so will take longer to demist and get any heat in the cabin.

If you have the reg number - that will do fine, I can get the VIN from the reg and will mask it when you post it.
Please Don't PM Me For Technical Help

Marc
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: DS5 Interior Blower dead

Post by GiveMeABreak »

Well there seems to be an issue with the VIN I have from the registration - it is not being decoded by PSA's database. So when you do get home, do us a favour and double check it manually please then pop it up so I can compare it with the one returned. Very odd....

That aside, it seems on the DS5 that the control module for the fan is incorporated onto the actual motor as can be seen in the diagram:

It is item 6 and is part number: 6441CQ
DS5 Heater Motor control.PNG
Please Don't PM Me For Technical Help

Marc
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

Thanks for your support, last thing, where is this situated in the car? Im assuming it sits behind the dash, and behind the main unit?
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

Also, it was only intermittent at the top speed of the fan, anything lower was fine. Which has made me think its an electrical feed issue, or something overloading. but the heating system is not my speciality! neither are electrics!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: DS5 Interior Blower dead

Post by GiveMeABreak »

You'll probably need to get access to it by removing the lower console side trim

Ther are 2 bolts at (2) and the connector is shown at (a)
DS5 A.PNG
Please Don't PM Me For Technical Help

Marc
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

Ok! Thanks so much for the help, wondering if anyone could help with part numbers for my specific model, as its failed the MOT dramatically
Most of the faults are easily sorted, but theres so many variations on the parts I need Im a little stuck

My Reg is KU13 CKL, and I need a rear disc and a front coil spring. Any ideas where to go for the OEM part numbers?
Gaz83
Posts: 7
Joined: 31 Jan 2019, 12:44
Location: Sheffield
My Cars: Citroen DS5

Re: DS5 Interior Blower dead

Post by Gaz83 »

ON another note, the blower seems to continue working at the lower speeds, but once turned up it goes for a few seconds then cuts out.
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: DS5 Interior Blower dead

Post by myglaren »

Gaz83 wrote: 11 Mar 2019, 09:34 ON another note, the blower seems to continue working at the lower speeds, but once turned up it goes for a few seconds then cuts out.

Could be overheating due to restricted airflow somewhere - possibly the cabin (pollen) filter is clogged and needs changing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: DS5 Interior Blower dead

Post by GiveMeABreak »

Gaz83 wrote: 11 Mar 2019, 09:34 Ok! Thanks so much for the help, wondering if anyone could help with part numbers for my specific model, as its failed the MOT dramatically
Most of the faults are easily sorted, but theres so many variations on the parts I need Im a little stuck

My Reg is ******, and I need a rear disc and a front coil spring. Any ideas where to go for the OEM part numbers?


Ok, I have your VIN and I've masked your Reg number.

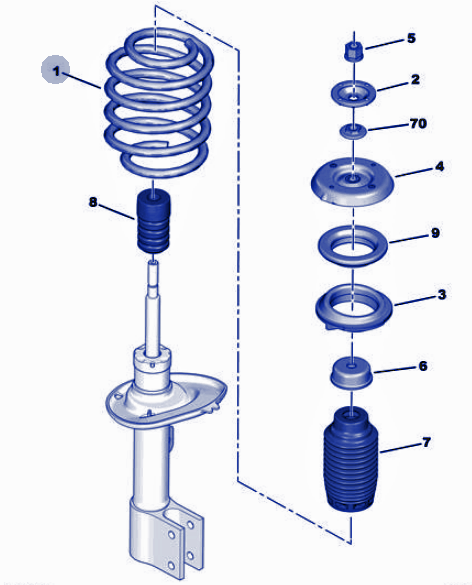

5002TK is the part number for your specific DS5 (Item 1) below. If you need any other parts on the diagram just shout.
DS5 Spring.PNG

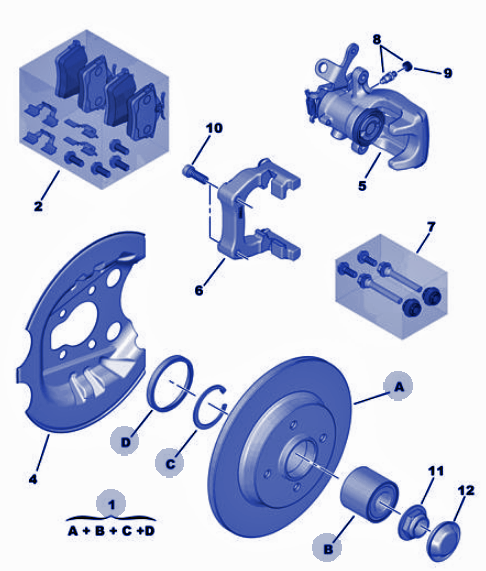

The rear Discs are available in 2 versions - new original part, or new cheaper version. This is a kit (1) that contains A, B C & D
DS5 Rear Disc.PNG
Original Part Number: 424946
Cheaper Part Number: 1619238880
Please Don't PM Me For Technical Help

Marc
Post Reply
