service schedule for 2019 k9 berlingo van 1.6 diesel

[john79]

Hi does anyone have a service schedule for the above van please

thanks
john.

[GiveMeABreak]

We can help if you need an original genuine part number, part diagram or vehicle factory build sheet and can't already find the info you need on the Forum. For this service, we do ask for a membership upgrade for official parts data as we are in turn charged for this. It will cover you for future part number requests for up to 2 years, so excellent value.

If interested, links are below, then provide your vehicle's VIN in full, which will be masked automatically when you submit your post.

A response to your question by a Forum Admin requiring parts or specific vehicle information requires you to have made a current contribution (Min. £10 / €11.48 or equivalent) to the Forum.

To Upgrade Your Membership & Donate Click Here For Further Information About Vehicle Parts and VIN Numbers Click Here

[john79]

Hi thanks for the reply, i have now made a donation , my vin is VR7**************[VIN obfuscated, can be read by forum staff] if you could find out the service schedule and also a build sheet for this van i would be greatfull

cheers john.

[GiveMeABreak]

Thanks for your Forum Donation John, info as requested:

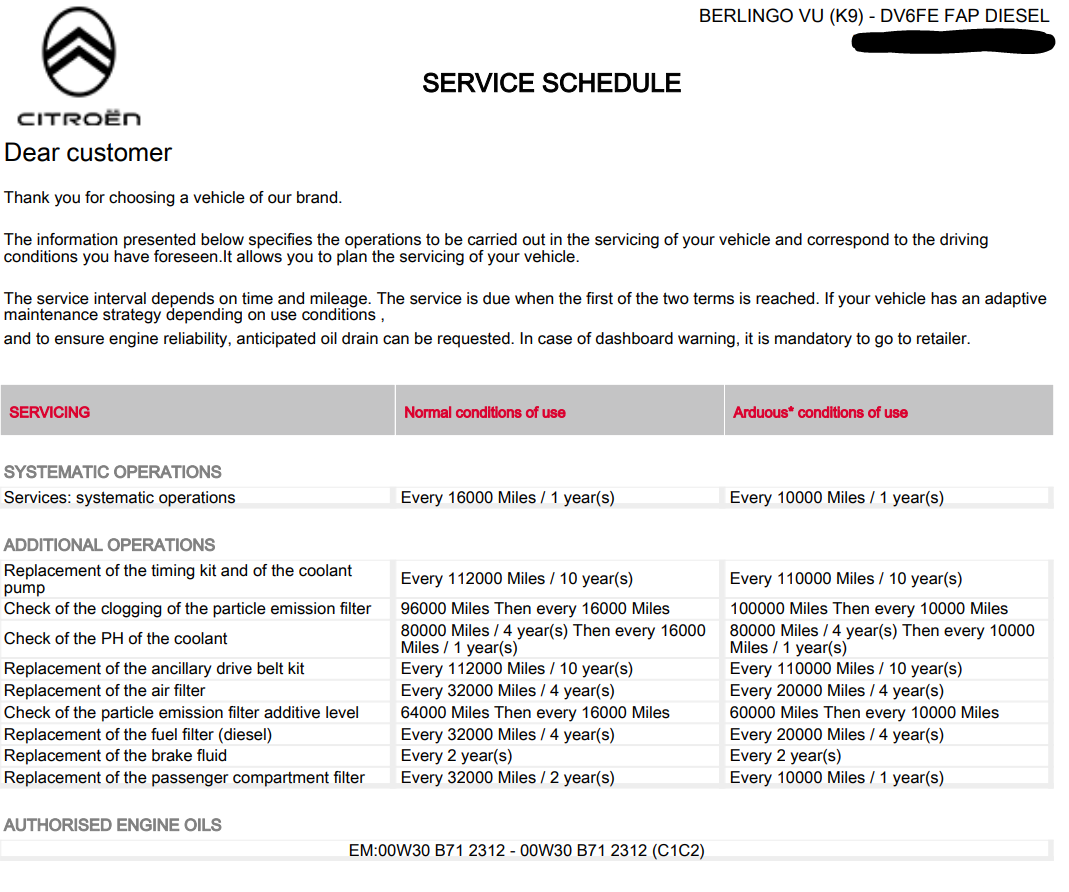

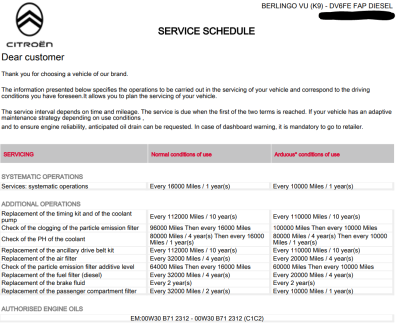

Main Servicing Info

Click Image to Zoom

Vehicle Build Sheet

Vehicle Characteristics
Vehicle family	BERLINGO VU (K9)
AS/RP N°	15499 FV 2 1055
Warranty Start Date	17/07/2019
Engine Serial number	10 JCAV 0088477
OPB	00F9
BER	e2*2007/46*0625*04
P4A	9824641799
General Information
PRODUCT TYPE	COMMERCIAL VEHICLE
COMMERCIAL MARQUE/COMPONENT TYPE	CITROEN
VEHICLE FAMILY	BERLINGO VU (K9)
SILHOUETTE	SHORT WHEELBASE VAN H1 6
TRIM LEVEL	COMMERCIAL VEHICLE LEVEL 2 PSA
ENGINE	DV6FE FAP DIESEL
TRANSMISSION	BVM5
PAINT TYPE	NON-METALLIC PAINT
BODY COLOUR	EWP - BANQUISE WHITE PAINT
INTERIOR TRIM TYPE	WW CURIT TRI + WW BRAZ "OA"
UPHOLSTERY COLOUR	"FY"
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
DEFINITION TO FOLLOW	INITIALE RANGE
ENGINE (TYPE)	DV TYPE ENGINE
PRE-EQUIPMENT FOR CONVERSION	WITHOUT PRE-EQUIPMENT FOR CONVERSION
Vehicle Characteristics
TRIM LEVEL	COMMERCIAL VEHICLE LEVEL 2 PSA
PAINT TYPE	NON-METALLIC PAINT
BODY COLOUR	EWP - BANQUISE WHITE PAINT
INTERIOR TRIM TYPE	WW CURIT TRI + WW BRAZ "OA"
UPHOLSTERY COLOUR	"FY"
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
Fuel Supply-Engine
FAN	1 X 2-SPEED FAN 95W AERO DYNAMIC FLAP
DRIVE TRAIN	INTERNAL COMBUSTION DRIVE TRAIN
TANK FILTER	RESERVOIR FILTER INTERIOR
STOP AND START	WITHOUT STOP AND START
ENGINE	DV6FE FAP DIESEL
FUEL SUPPLY	DIRECT EXCHANGER TURBO INJECTION
FUEL FILLER CAP	FUEL TANK CAP WITH LOCK
DIESEL FILTER WATER DETECTOR	WITH DIESEL FILTER WATER DETECTOR
FUEL	DIESEL GRADE DA/DE/DE+
EMISSIONS STANDARD (ENGINE)	EURO 6.1 ENGINE EMISSION CONTROL
ENGINE (TYPE)	DV TYPE ENGINE
CAPACITY	1600 CM3
FUEL TANK	FUEL TANK WITH LOCATING TAB
COOLING MOTOR	RADIATOR 28DM2
CRANKCASE GAS CIRCUIT HEATING	WITH HEATER CASING GAS CIRCUIT
POWER VARIATION (ENGINE)	55KW - 233NM
EOBD SELF-DIAGNOSIS SYSTEM	WITH "OBD" AUTO-DIAGNOSTICS
VEHICLE TECHNICAL DEPOLLUTION	EURO 6.1 VEHICLE TECHNICAL EMISSION CONTROL
PARTICLE FILTER	WITH PARTICLE EMISSION FILTER
Gearbox Transmission
GEARBOX TYPE	GEARBOX BE4R
TRANSMISSION	BVM5
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
FINAL DRIVE RATIO	AXLE RATIO 17 X 73
WHEEL STYLE	BLACK 15-INCH STEEL WHEEL
CLUTCH	HYDRAULIC CLUTCH
RIM/TYRE SIZE	15 INCH TYRE FITMENT
TYRE (SIZE, TYPE)	TYRE 195/65 R15 91H
WHEEL (TYPE)	STEEL WHEELS
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
Suspension-Steering-Brakes
BRAKE ASSOCIATED VARIANT	ESP BOSCH 9.1
STEERING (OPERATION)	LOW POWER DOUBLE PINION ELECTRIC POWER STEERING
REAR ANTI-ROLL BAR	RR ANTI-ROLL BAR STIFFNESS 39000 NM/RAD
ANTI-THEFT DEVICE	ANTI-THEFT USING MECHANICAL ANTI-THEFT DEVICE
FRONT ANTI-ROLL BAR	FR ANTI-ROLL BAR STIFFNESS 37500 NM/RAD
STEERING WHEEL ANGLE	WITH ABSOLUTE STEERING WHEEL ANGLE ESTIMATOR
SUSPENSION	NORMAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	ELECTRONIC STABILITY PROGRAM
Body Fittings
HANDS FREE ACCESS AND STARTING	WITHOUT HANDS-FREE ACCESS/STARTING
TOWBAR	WITHOUT TOWBAR
AERIAL	SHORT ROOF AERIAL
FUEL FILLER CAP	FUEL TANK CAP WITH LOCK
CABIN	WITHOUT CAB
PAYLOAD	PAYLOAD 650 KG
FINISHER (SELF-ADHESIVE)	WITHOUT GLASS ADHESIVE TAPE
REAR SPOILER	WITHOUT REAR AERODYNAMIC SPOILER
DECORATION (PAINTED)	WITHOUT PAINT DECORATION
SIDE MOULDINGS (TYPE)	LATERAL PROTECTOR MASS TINTED
WHEEL EMBELLISHER (STYLE)	15 INCH SAULIRE WHEEL TRIM
UNDERBODY SHIELD	WITHOUT PROTECTION UNDER BODY
INDICATORS	WITHOUT SIGNALING LIGHTS
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
EXT. REARVIEW MIRROR COMP. FUNCTION	ELECTRIC FOLDING EXTERIOR MIRROR
SPLASH SHIELD	STANDARD MUD GUARD
ENGINE BAY SOUNDPROOFING	UNDERBONNET + BULKHEAD SOUNDPROOFING
WINDSCREEN GLASS (TYPE)	STANDARD WINDSCREEN GLASS
WINDSCREEN WIPER	2-SPEED INTERMITTENT WIPER + ADJUSTMENT
REAR SCREEN WIPER	W/O REAR SCREEN WASH WIPE
REAR ROOF FLAP	W/O ROOF TRAP
REAR TAILGATE GLASS	WITHOUT TAILGATE WINDOW
SIDE LOAD DOOR	SLIDING LH SIDE DOOR
BUMPER	NEUTRAL/BODY COLOUR STD FR BUMPER-NEUTRAL STD RR
LUGGAGE RACK	LUGGAGE-CARRIER PRE-EQUIPMENT
FRONT FOGLAMP	FOG LAMPS WITH CORNERING LIGHT
PANORAMIC VISUAL AID	WITHOUT PANORAMIC VISUAL AID
SPARE WHEEL	STANDARD SPARE WHEEL
EXTERIOR ACCESSORIES	EXT OPENING CONTROL+NEUTRAL MIRROR
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
BUMPER TRIM	BUMPER WITHOUT TRIM
REAR WINDOW (TYPE)	WITHOUT REAR WINDOW
GLASS (APPEARANCE)	WINDOW TINTED
WINDOW (TYPE)	LAMINATED WINDSCREEN
SIDE WINDOW (COMM. VEH. ONLY)	WITHOUT SIDE WINDOW
ROW 3 SIDE WINDOW	METAL WINDOWS 3ND ROW
Interior Fittings
FAN	1 X 2-SPEED FAN 95W AERO DYNAMIC FLAP
CHILD OBSERVATION INTERIOR MIRROR	WITHOUT INTERIOR CHILD MONITORING MIRROR
TELEMATIC UNIT	INDEPENDENT TELEMATIC UNIT 3S
INTERIOR TRIM TYPE	WW CURIT TRI + WW BRAZ "OA"
SIDE ARMREST (TYPE)	FR SIDE ARMREST+PULLING HANDLE INJECTED GRAINED
ANTI-THEFT ALARM	VOLUME+PERIMETER+LIFTING ALARM
CIGAR LIGHTER	WITHOUT CIGAR-LIGHTER
REAR SEAT	WITHOUT REAR SEAT POSITION
SUPPLEMENTARY SEAT	WITHOUT ADDITIONAL SEAT
BLIND SPOT DETECTION	WITHOUT BLIND SPOT MONITORING
CABIN SEAT	ADJUSTABLE BENCH SEAT
INT. LOAD RETENTION	6 LASHING RINGS
LUGGAGE COVER	WITHOUT LUGGAGE COVER
REAR SEATBELT	WITHOUT REAR SAFETY BELT
FRONT SEATBELT	3 INERTIA REEL 2 SIDE PRET FR SEAT BELT DRIVER+PASS
ASHTRAY	WITHOUT ASHTRAY
CLIMATE (AMBIENT TEMP)	HOT OR WIDER TEMPERATE COUNTRY
AIR CONDITIONING	WITH HEATER MATRIX
CHILD LOCK	WITHOUT CHILD LOCK
SPEED GRADUATIONS	SPEED GRADUATION IN MPH
GRAB HANDLES	WITHOUT HANDLES
CONSOLE	LOWER CONSOLE
DRIVING POSITION	RIGHT HAND DRIVE
REMOTE CONTROL	INSTALLATION OF BOOT REMOTE CONTROL
ADDITIONAL HEATING	WITHOUT ADDITIONNAL HEATING
MIRROR LINK	WITH MIRROR LINK
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT OR LOAD VOL SWITCH
MISC. INT. LAMPS	FRONT SPOTLAMP
WORK TABLE	WITHOUT WORK TABLE
LOAD SPACE TRIM	PVC BOOT CARPET
UNDERSEAT STORAGE	1 UNDER SEAT STORAGE DRAWER
INSTRUMENT PANEL (CHARACTERISTICS)	LCD INSTRUMENT PANEL + TEXT
CHILD SEAT ANCHORING POINTS	CHILD SEATS WITH ISOFIX ANCHORAGES
LOUDSPEAKER	MOUNTING 2 FRONT LOUDSPEAKERS + 2 FRONT TWEETERS
RADIO CONTROLS	STEERING WHEEL AUDIO SYSTEM CONTROL
ADDITIONAL BLOWER	WITHOUT ADDITIONAL PULSE
PASSENGER COMPARTMENT SOUNDPROOFING	BULKHEAD SOUNDPROOFING
FRONT PASSENGER SEAT CONTROL	MANUAL FRONT PASSENGER SEAT CONTROL
DRIVER SEAT ADJUSTMENT	DRIVER’S SEAT BACK WITH ANGLE ADJUSTMENT AND LUMBAR SUPPORT
FRONT PASSENGER SEAT FOLDING	WITH STANDARD FOLDING FR PASSENGER SEAT
INT. UPHOLSTERY ELEMENTS	WITHOUT INTERIOR TRIM COMPONENTS
COMPACT DISC	WITHOUT COMPACT DISC
STOWAGE BIN	WITHOUT SETTING BOX
SATELLITE NAVIGATION SYSTEM	WITHOUT NAVIGATION SYSTEM
REAR WINDOW LIFT	WITHOUT REAR GLASS LIFT
TRAFFIC INFORMATION READER	WITHOUT LATERAL TRAJECTORY MONITORING
CABIN CARPET	R1 TPO
DRIVER’S WINDOW LIFT	SEQUENTIAL DRIVER’S ELECTRIC WINDOW
PASSENGER’S WINDOW LIFT	SEQUEN CONTROL PASSENG FRONT WINDOW LIFTER
DISPLAY	DGT8C SCREEN DISPLAY
MISC. INT. ACCESSORY	DOCUMENT HOLDER TABLE
COURTESY MIRROR	DRIVER’S MIRROR CONCEALING FLAP WITH LIGHTING
CUSHION PADDING	PADDING WITHOUT PASSENGER DETECTION PAD
HEATING ELEMENT	NON HEATED SEAT
FRONT LATERAL AIRBAG	WITHOUT FRONT SIDE AIRBAG
REAR PASSENGER PROTECTION	W/O RR PASSENGER PROTECTION
PASSENGER AIRBAG	NO PASSENGER AIRBAG
EQUIPMENT PACK	W/O EQUIPMENT PACK
EXTERIOR REAR VIEW MIRROR (HEATED)	HEATED EXTERIOR MIRROR
AIRBAG DEACTIVATION	WITHOUT AIRBAG DEACTIVATION
INTERIOR DOOR CONTROL (APPEARANCE)	NEUTRAL FINISH INSIDE DOOR HANDLE
REAR MOVING PANEL	2 REAR HINGED METAL DOORS
SIDE LOAD DOOR	SLIDING LH SIDE DOOR
FRONT SEAT GUARD	NOT REMOVABLE PANEL
WIFI	WITHOUT WIFI
STORAGE (DRIVING POSITION)	OPEN LOWER STORAGE COMPARTMENT+ENCLOSED UPPER STORAGE COMPARTMENT
RADIO RECEIVER	DIGITAL CONNECTED COLOUR RADIO
REFRIGERATION	SINGLE AIR CONDITIONING
CRUISE CONTROL	REGULATOR AND SPEED LIMIT
DRIVER’S SEAT HEIGHT CONTROL	PARALLEL DRV HEIGHT ADJ
INTERIOR REAR VIEW MIRROR	WITHOUT INTERIOR MIRROR
STORAGE (OTHERS)	W/O OTHER SETTING BOXES
CARPET COVER	W/O CARPETMAT
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
OBSTACLE DETECTION SYSTEM	REAR RADAR OBSTACLE SENSOR
LATERAL BLINDS	WITHOUT SIDE BLINDS
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
TRIM ADAPTATION	HEART OF THE RANGE GEAR LEVER KNOB+PVC GAITER
RADIO FREQUENCY	WESTERN EUROPE RADIO FREQUENCY
LOCKING CONTROL	CENTRAL DEAD LOCKING
REAR WINDOW (TYPE)	WITHOUT REAR WINDOW
WINDOW (TYPE)	LAMINATED WINDSCREEN
SIDE WINDOW (COMM. VEH. ONLY)	WITHOUT SIDE WINDOW
STEERING WHEEL	STANDARD STEERING WHEEL
Electrical
LIGHTING OF LAMPS	AUTOMATIC SWITCHING ON OF LIGHTS
ALTERNATOR	ALTERNATOR 150 AMP
BATTERY	BATTERY L2 640 60AH EF 640 EN
REMOTE CONTROL	INSTALLATION OF BOOT REMOTE CONTROL
STARTER MOTOR	STARTER MOTOR CL 4
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT OR LOAD VOL SWITCH
SPECIAL LIGHTING	FRONT DAY RUNNING LIGHT (DRL)
MISC. INT. LAMPS	FRONT SPOTLAMP
INDICATORS	WITHOUT SIGNALING LIGHTS
EXT. REARVIEW MIRROR COMP. FUNCTION	ELECTRIC FOLDING EXTERIOR MIRROR
MULTIPLEXING	R3 ECO ELECTRICAL ARCHITECTURE
FRONT FOGLAMP	FOG LAMPS WITH CORNERING LIGHT
Component Manufacturers
BRAKE ASSOCIATED VARIANT	ESP BOSCH 9.1
Miscellaneous
SPECIAL SPECIFICATION	STANDARD
MODIF. DURING MODEL YEAR	"00" MINOR INDEX
CONDENSER (SPECIFICATIONS)	CONDENSER 19,3DM2 THICKNESS 12
ATMOSPHERIC CONDITIONS	NORMAL ATMOSPHERE
DRIVING POSITION	RIGHT HAND DRIVE
VIN PLATE	EUROPEAN UNION CONSTRUCTOR’S PLATE + NRE
LABEL	WITHOUT LABEL
AIR CONDITIONING PIPES	STANDARD AIR CONDITIONING PIPES
RADIO HEADPHONE SOCKET	WITHOUT ACCESSORY SOCKET
SIDE IMPACTS	REINFORCED SIDE IMPACT PROTECTORS
SET OF KEYS	2 HIGH FREQUENCY REMOTE CONTROL KEYS
DOOR SEAL	WITHOUT SEAL DIRT EXCLUDER
COUNTRY ADAPTATION	WITHOUT ADAPTATION COUNTRY
REFRIGERANT	REFRIGERANT LIQUID R134
EMERGENCY EQUIPMENT	W/O HELP EQUIPMENT
EXTERIOR ACCESSORIES	EXT OPENING CONTROL+NEUTRAL MIRROR

[john79]

wow that was quick thankyou

[GiveMeABreak]

No worries, we don't like to hang about here! (well on a good day).
