Ds 4 2010 audio denon does not work

[AsH7]

Hi guys , i am new here and i have a problem with my citroen ds4 denon audio system.

So i've been to many oficial citroen workshops and alot of services , nobody knows how to repair my Citroen speakers .
I've been send the cd unit to a test and works perfectly , ive been replacing the amplifier with an original aftermarket one and still doest work .

I've been reading that if one speaker doest work the entire unit will not turn on , so i need to check every speaker resistance . Lets say that i'll find one speaker that doest work and need replacing , do i really need an original one ? I cant use and aftermarket one with same specs ?
Also ive been reading that for some reason i cant use an aftermarket amplifier , is that right ?

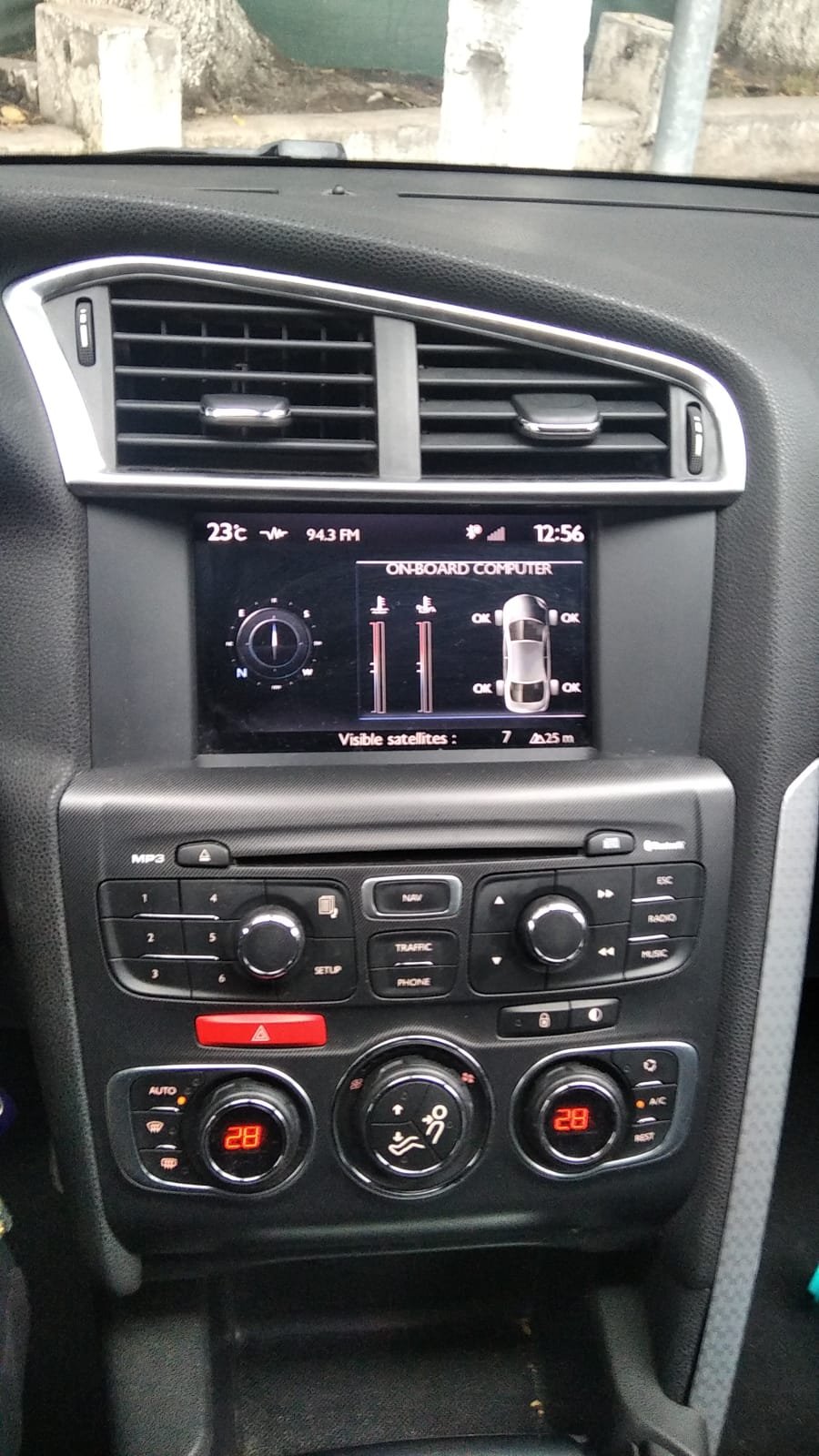

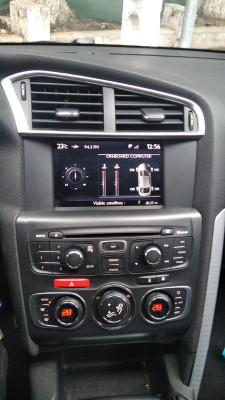

If does help ill post a picture with the car radio

[GiveMeABreak]

You best provide your VIN so I can see exactly what you have. Please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff.

[AsH7]

You best provide your VIN so I can see exactly what you have. Please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff.

VF7**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

Incidentally, your vehicle has an outstanding After-sales campaign outstanding from October 2024: The Airbag needs replacing, so book it in at a dealer to get this done. The work will be free. Quote reference JGU.

JGU - C3 (A51), DS3, C4, DS4, DS5 - Airbag

Replace airbag module according to following rework instruction.
JGU
05/12/2023

Ok so RT6 system with Hi Fi Amp. This is a CAN amplifier, so is intended to work with the CAN data network of the vehicle. An aftermarket system may not interface with the RT6.

The system takes the 2 audio outputs from the RT6 and splits these into 8 amplified outputs with the HiFi option:

2 outputs for the front woofers
2 outputs for the front tweeters
2 for the rear tweeters and woofers connected in parallel
2 outputs for the bass acoustic enclosure

You may want to look at the connections:

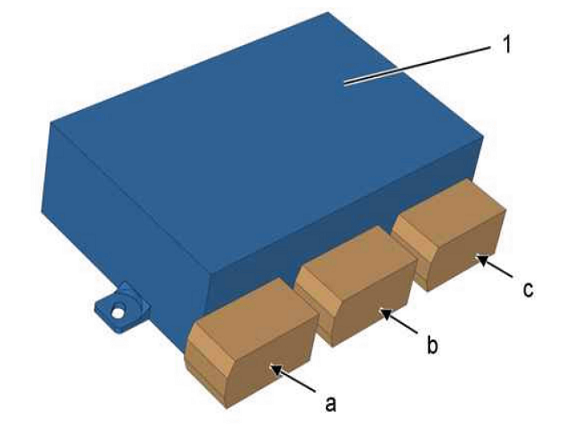

'a' 16-way black connector

Channel number	Designation of the connector channels
1	Channel not connected
2	CAN +
3	Channel not connected
4	Audio amplifier front right output positive control
5	Audio amplifier front right output negative control
6	Channel not connected
7	CAN INFO DIV High
8	Channel not connected
9	Central power switch positive
10	Channel not connected
11	Audio amplifier front left output negative control
12	Audio amplifier front left output positive control
13	Channel not connected
14	CAN INFO DIV Low
15	Channel not connected
16	Earth

'a' 16-way Bonnet Locking Connector

Channel number	Designation of the connector channels
1	Positive control of the front left tweeter
2	Positive control of the front left woofer
3	Channel not connected
4	Positive control of the rear left boomer and tweeter
5	Channel not connected
6	Rear left bass acoustic enclosure positive control
7	Channel not connected
8	Channel not connected
9	Negative control of the front left tweeter
10	Negative control of the front left woofer
11	Channel not connected
12	Negative control of the rear left boomer and tweeter
13	Channel not connected
14	Rear left bass acoustic enclosure negative control
15	Channel not connected
16	Channel not connected

'c' 16-way Blue Connector

Channel number	Designation of the connector channels
1	Positive control of the front right tweeter
2	Positive control of the front right woofer
3	Channel not connected
4	Positive control of the rear right boomer and tweeter
5	Channel not connected
6	Rear right bass acoustic enclosure positive control
7	Channel not connected
8	Channel not connected
9	Negative control of the front right tweeter
10	Negative control of the front right woofer
11	Channel not connected
12	Negative control of the rear right boomer and tweeter
13	Channel not connected
14	Rear right bass acoustic enclosure negative control
15	Channel not connected
16	Channel not connected

[AsH7]

Ok , ill check them in a couple days and ill comeback with the results , thanks alot

[GiveMeABreak]

No problem, may give you some pointers for checking the connections.

[AsH7]

No problem, may give you some pointers for checking the connections.

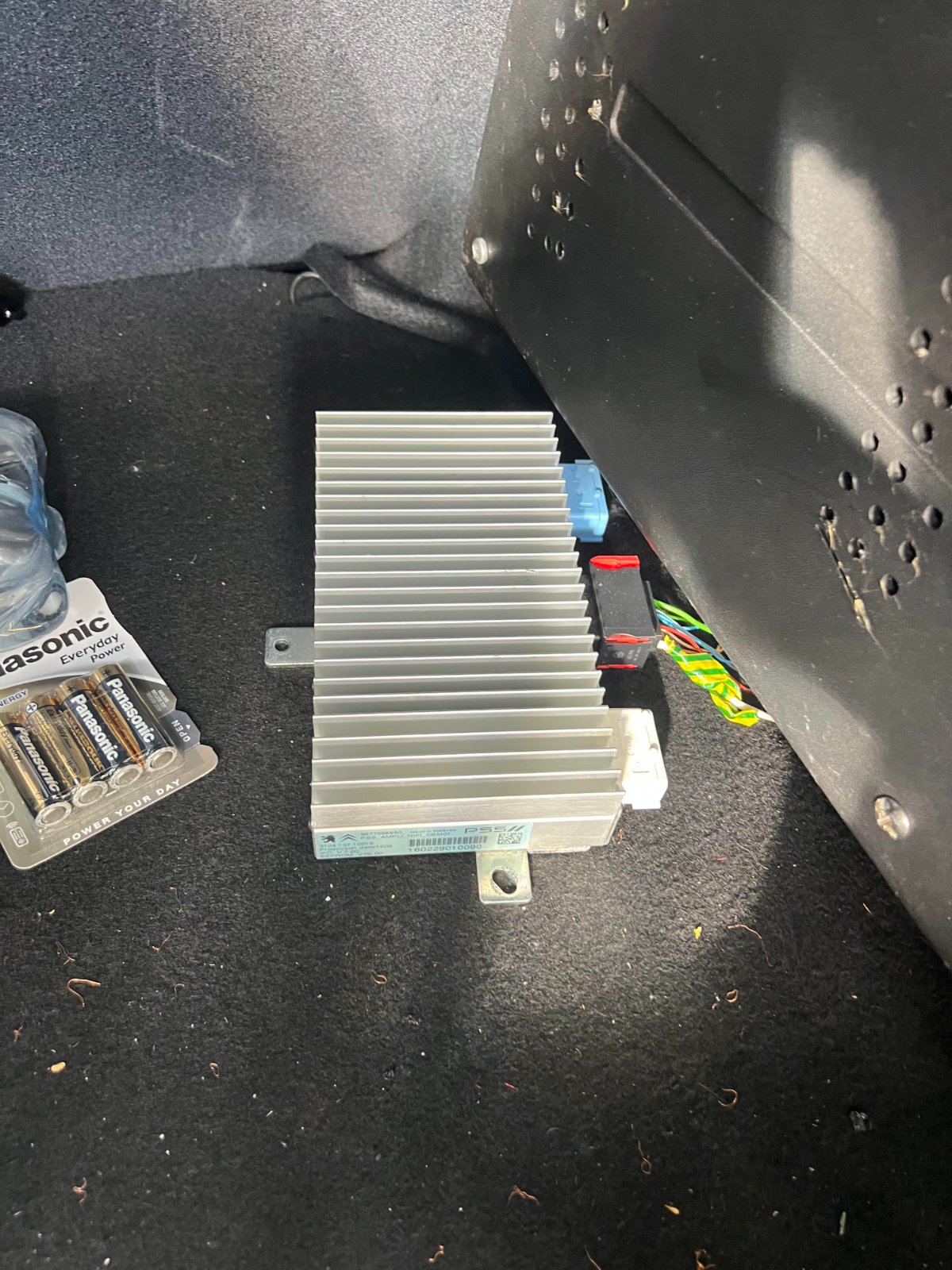

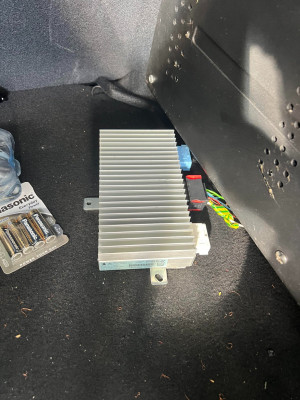

ok so i am coming with a little update , long story short , the amplifier connection looks like this lmao , there is 2 speakers connected for radio , i dont know what to do now

[GiveMeABreak]

Err.... not surprising it's not working to be honest....

ive been replacing the amplifier with an original aftermarket one

When you say this, surely you would have connected the replacement amp up correctly when you replaced it? I'm confused.

[AsH7]

Err.... not surprising it's not working to be honest....

ive been replacing the amplifier with an original aftermarket one

When you say this, surely you would have connected the replacement amp up correctly when you replaced it? I'm confused.

so long story , is my brother car and he after being to 100 services , he manage to connect two wires and somehow works only 2 front speakers , as with all speakers connected the amp will not work at all, ill comeback after i figure out what the actually hell is there
