2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
mickthemaverick
Donor 2024
Posts: 13884
Joined: 11 May 2019, 17:56
x 6125

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by mickthemaverick »

That sounds like the same issue I had with my C5 when I first got it. Lots of fumes and gunky oil round the injectors. I cleaned it all with carb cleaner and re torqued the clamp bolts and had no further trouble in the next 45000 miles after which I sold it! :-D
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
308sw
Posts: 28
Joined: 12 Oct 2023, 22:02
x 14

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by 308sw »

Was yours an 8 or 16 valve version?
User avatar
mickthemaverick
Donor 2024
Posts: 13884
Joined: 11 May 2019, 17:56
x 6125

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by mickthemaverick »

16V :-D
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
Paul-R
Donor 2023
Posts: 7010
Joined: 07 May 2009, 16:24
x 1395

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by Paul-R »

You may have two problems. A loose injector clamp, giving you the exhaust smell, and a separate oil leak which is unconnected to the exhaust smell.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
Paul-R
Donor 2023
Posts: 7010
Joined: 07 May 2009, 16:24
x 1395

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by Paul-R »

In fact the exhaust smell could be from a number of places so may not be the injector at all!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
308sw
Posts: 28
Joined: 12 Oct 2023, 22:02
x 14

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by 308sw »

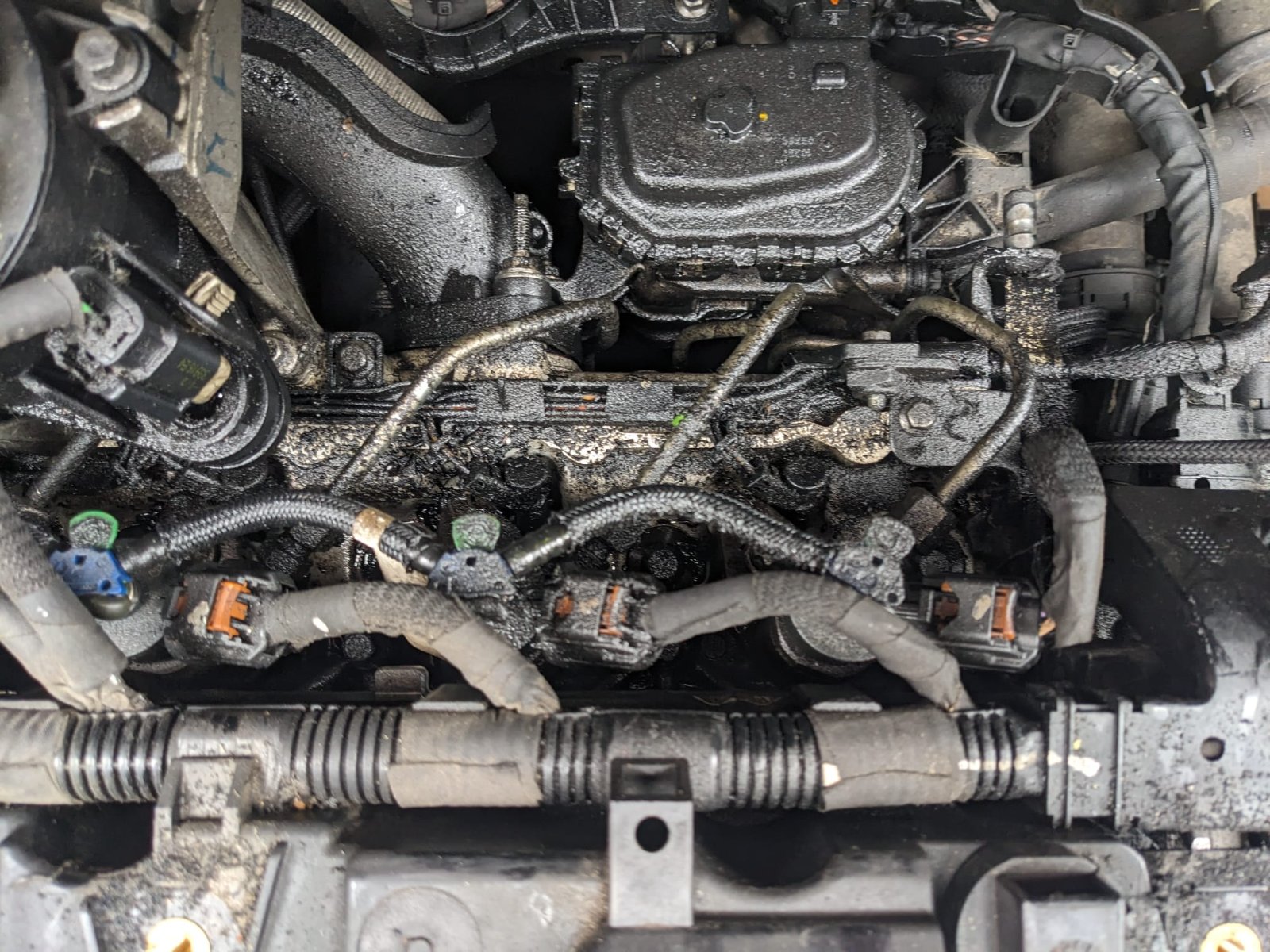

Thanks for your suggestions. I removed the air filter box and there is this same oil/diesel/carbon all over the components under the air filter box. Do you think this is all caused by an injector clamp being loose?
Attachments
Do you know what the thing at the bottom is?
Do you know what the thing at the bottom is?

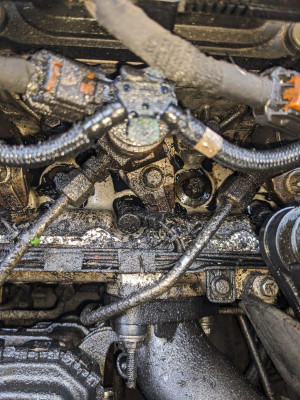

I think these are the middle injectors
I think these are the middle injectors
User avatar
mickthemaverick
Donor 2024
Posts: 13884
Joined: 11 May 2019, 17:56
x 6125

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by mickthemaverick »

Could well be, as I said mine was!! :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
Paul-R
Donor 2023
Posts: 7010
Joined: 07 May 2009, 16:24
x 1395

Re: 2017 1.6 hdi oil/diesel under engine cover (Peugeot 2008 120bhp)

Post by Paul-R »

I don't see how it could be. On the 16v engines the injector goes through the cam cover before going into the cylinder head. It's when the seal between the injector and the cam cover is compromised that you get oil leakage. It's simply not possible on the 8v engines as the injector doesn't go through the cam cover.
