C4 Grand ~Picasso (2014) Axle Stand point?

Post by tizdaz »

Hi guys, i know where the jack points are for my C4 GP, but where are the Axle Stand points please?

Thanks!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 28136
Joined: 15 Sep 2015, 19:38
x 3404

Re: C4 Grand ~Picasso (2014) Axle Stand point?

Post by GiveMeABreak »

jack 1.JPG
jack 1.JPG (21.62 KiB) Viewed 52 times
Jack 3.JPG
Jack 3.JPG (20.4 KiB) Viewed 52 times
Jack 2.JPG
Jack 2.JPG (16.73 KiB) Viewed 52 times

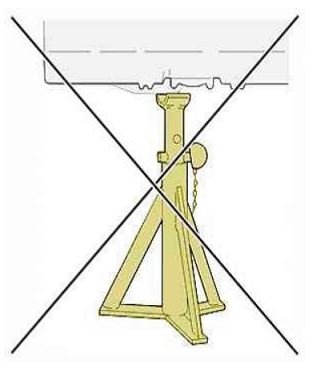

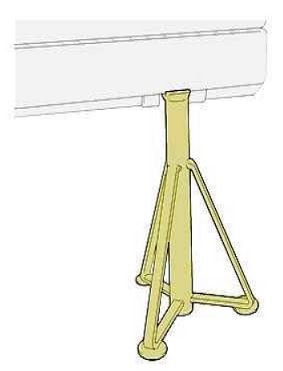

Don't position the stands under the jacking points.Don't position the Jack away from the lifting pointsPositioning of the Stand
tizdaz
Donor 2022
Posts: 64
Joined: 06 Mar 2022, 01:53
x 3

Re: C4 Grand ~Picasso (2014) Axle Stand point?

Post by tizdaz »

Hi Marc,

I'm a little confused, so does this stand go next to where the jack point is? if so how do i put it there if the jack is there already (to lift the car up) ?

Cheers!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 28136
Joined: 15 Sep 2015, 19:38
x 3404

Re: C4 Grand ~Picasso (2014) Axle Stand point?

Post by GiveMeABreak »

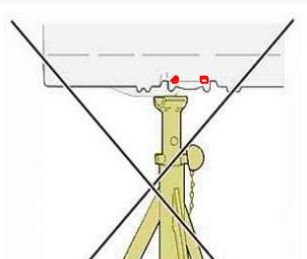

I think they mean the actual 'points' as in the pointed parts of the jacking area, where I have marked with red dots.
jack 4.JPG
jack 4.JPG (16.43 KiB) Viewed 39 times
Some vehicles may have a 'lip' like metal part where the jack goes under and these can have some pointed ends. In other words don't put the stands under any pointed parts of this plate, make sure it goes evenly over the jacking point / plate, otherwise the stand will be taking the weight on a part of the jacking point and the weight won't be distributed properly / or it will damage the metal jacking part.

I can't be more specific as I don't have a Picasso, but the jacking points as per you owner manual should be followed.
