Location of crankshaft position sensor

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Davcat
Posts: 5
Joined: 16 Apr 2022, 12:17

Location of crankshaft position sensor

Post by Davcat »

Hi can anybody help I have a citroen c2 07 1.4 diesel and it will not start and dionostics says there is a crankshaft position sensor fault but I can not locate where it is
RichardW
Forum Treasurer
Posts: 9867
Joined: 07 Aug 2002, 17:12
x 552

Re: Location of crankshaft position sensor

Post by RichardW »

Assuming it's the same as the 1.6 then it's behind the crank pulley, at about 7 o'clock when viewed end on.

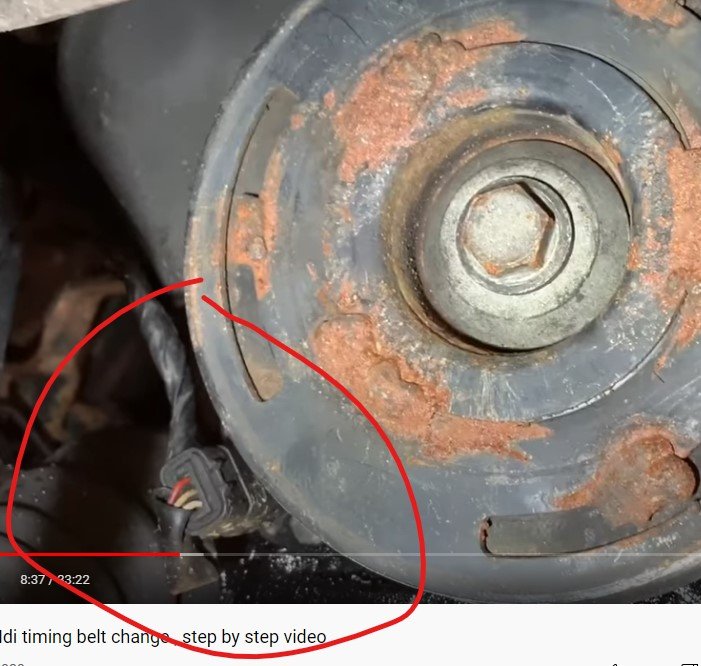

Seems that it is, pic from a timing belt video:
hdi crank pulley.jpg
Davcat
Posts: 5
Joined: 16 Apr 2022, 12:17

Re: Location of crankshaft position sensor

Post by Davcat »

Hi si that not the crankshaft speed sensor
RichardW
Forum Treasurer
Posts: 9867
Joined: 07 Aug 2002, 17:12
x 552

Re: Location of crankshaft position sensor

Post by RichardW »

One and the same, there isn't a separate sensor.
Davcat
Posts: 5
Joined: 16 Apr 2022, 12:17

Re: Location of crankshaft position sensor

Post by Davcat »

Ok thanks but I was lead to believe that the position sensor was on the flywheel Bell housing but the starting motor but can not see it
User avatar
GiveMeABreak
Forum Admin Team
Posts: 28088
Joined: 15 Sep 2015, 19:38
x 3393

Re: Location of crankshaft position sensor

Post by GiveMeABreak »

If it's the 1.4 HDi 70 then there is a camshaft position sensor:
camshaft sensor.JPG
camshaft sensor.JPG (12.23 KiB) Viewed 61 times
... and a crankshaft position sensor (engine speed), which is the one you are probably referring to:
crank sensor.JPG
crank sensor.JPG (12.37 KiB) Viewed 61 times
Davcat
Posts: 5
Joined: 16 Apr 2022, 12:17

Re: Location of crankshaft position sensor

Post by Davcat »

But what the location of both please 9
wheeler
Posts: 5678
Joined: 21 Sep 2002, 19:07
x 400

Re: Location of crankshaft position sensor

Post by wheeler »

The cam sensor is located at the top of the engine pointing at the cam pulley, the crank sensor location is shown in the picture already posted.
Davcat
Posts: 5
Joined: 16 Apr 2022, 12:17

Re: low current to crankshaft position sensor

Post by Davcat »

Hi
I have changed the crankshaft position to now my reader is say low current to position sensor what could this be
RichardW
Forum Treasurer
Posts: 9867
Joined: 07 Aug 2002, 17:12
x 552

Re: Location of crankshaft position sensor

Post by RichardW »

What code have you actually got? Where did the sensor come from?
