ew10j4s torque settings

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
Fake Concern
Posts: 1033
Joined: 27 Dec 2012, 11:41
x 50

ew10j4s torque settings

Post by Fake Concern »

A friend of mine with a C4 VTS 180 needs the torque setting for the flywheel bolts, I have tried to see if I can find this on Lexia and on ServiceCitroen, but so far no go. Does anyone know how to find this or can anyone find it for me please?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: ew10j4s torque settings

Post by GiveMeABreak »

Edit: These are for the Crankshaft main bearing cap casting bolts (21)

Pre-tighten: 1 da.Nm
Tightening to 2 ± 0,2 daN.m
Angular tighten to 60 ± 5 °
User avatar
Fake Concern
Posts: 1033
Joined: 27 Dec 2012, 11:41
x 50

Re: ew10j4s torque settings

Post by Fake Concern »

Thanks for answering and sorry I didn't get back to you straight away (my mum had a fall so I had to go over and didn't get back until late)

I don't think the VTS 180 which is petrol has a dual mass flywheel onlt the diesel VTS, although I may be wrong!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: ew10j4s torque settings

Post by GiveMeABreak »

I hope your Mum is OK!

Actually - for some reason I had a glitch and the wrong data came up - so I've corrected it in my previous post - so please re-check above. :wink:
User avatar
Fake Concern
Posts: 1033
Joined: 27 Dec 2012, 11:41
x 50

Re: ew10j4s torque settings

Post by Fake Concern »

She's fine now thanks

That's great thank you very much
RichardW
Forum Treasurer
Posts: 9606
Joined: 07 Aug 2002, 17:12
x 477

Re: ew10j4s torque settings

Post by RichardW »

I had the same info as your original post Marc, 21 is not a crank bearing cap bolt....
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: ew10j4s torque settings

Post by GiveMeABreak »

Hmm.. what happened there then Richard?

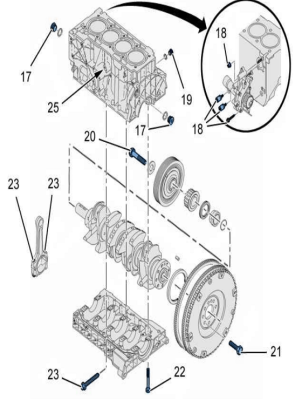

Here's the data for the diagram:
Click Diagram to Zoom
crank 2.PNG
RichardW
Forum Treasurer
Posts: 9606
Joined: 07 Aug 2002, 17:12
x 477

Re: ew10j4s torque settings

Post by RichardW »

Think they must have numbered the drawing on Friday afternoon after a good long lunch! There are 2 item 23s for instance, and 25 is pointing at the block! From the table you have posted, 20 would appear to be the spec for the flywheel bolts. But that is still different to the original info you found, and which was the same as I found in my off line version of service.citroen!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25418
Joined: 15 Sep 2015, 19:38
x 2832

Re: ew10j4s torque settings

Post by GiveMeABreak »

Yes, looks a bit of a dog's breakfast, and of course we have to make sure the 'tracer' lines are followed where they have exploded the parts for the purposes of seeing everything - as it looks back to front if not! :-D
