Complete Wiring diagram RNEG

[Sonnic2000]

Hi guys,

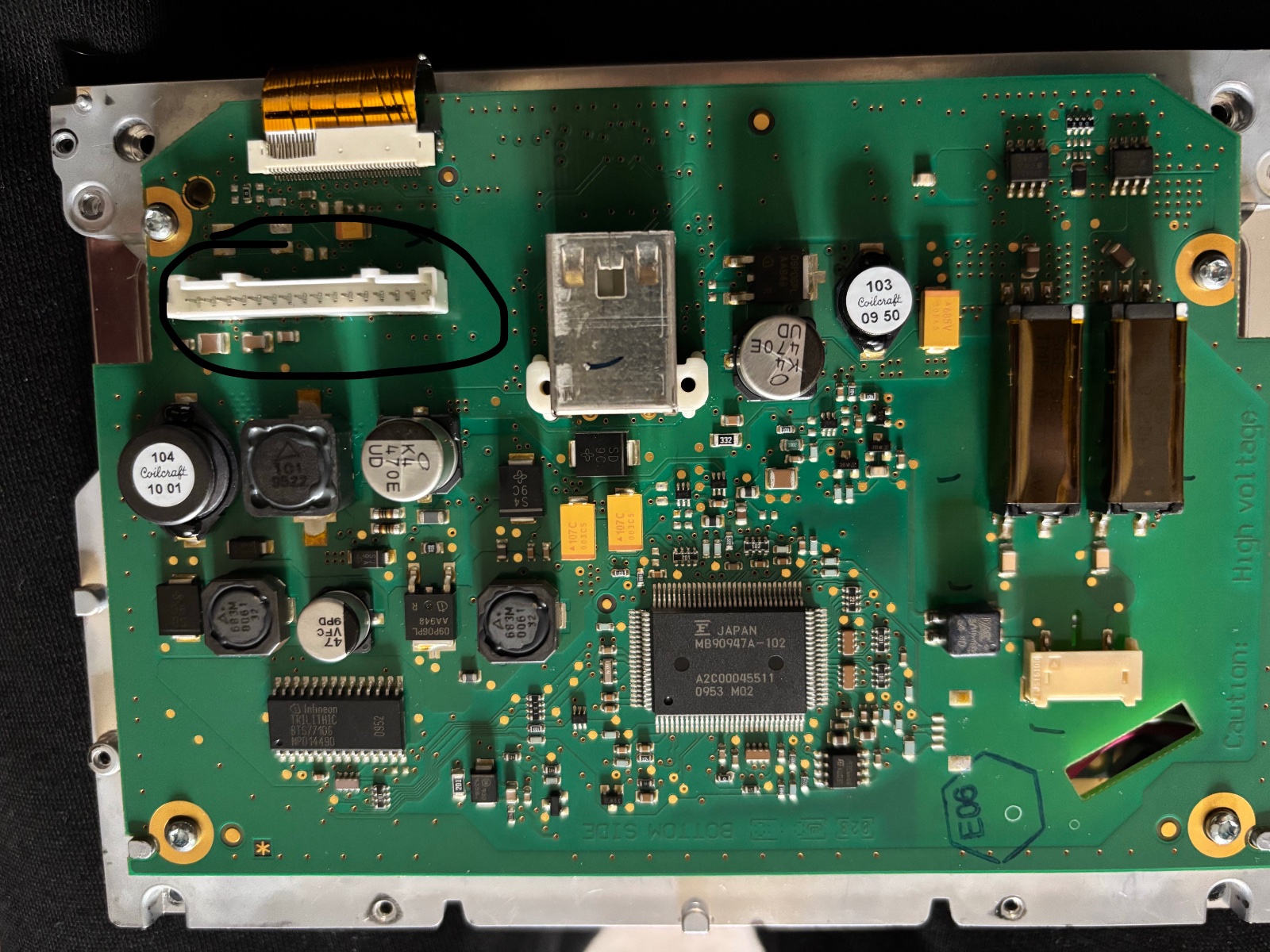

does anyone have the wiring diagram of the RNEG? ...I want to know what the pins of the folding screen are for...

[GiveMeABreak]

Pins 9 & 11, 14 & 15:

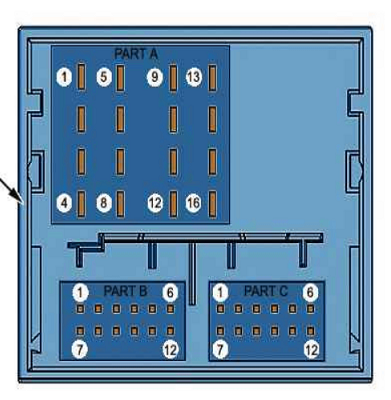

rneg connector.PNG (192.41 KiB) Viewed 912 times

Part "A": 16 way connector

Channel number	Allocation of channels of connector
1	signal : Right hand rear speaker
2	signal : Front right hand speaker
3	signal : Front left hand speaker
4	signal : Rear left loudspeaker
5	Earth : Right hand rear speaker
6	Earth : Front right hand speaker
7	Earth : Front left hand speaker
8	Earth : Rear left loudspeaker
9	Supply : Retractable multifunction screen DEV
10	Comfort CAN High
11	Retractable multifunction screen position return signal DEV
12	Battery + supply
13	Comfort CAN Low
14	Opening : Retractable multifunction screen DEV
15	Earth : Retractable multifunction screen DEV
16	Earth

[Sonnic2000]

Hi, i mean the flipscreen connector (d) .
I thinking this one is the Part A, B en C ...not the D connector

[GiveMeABreak]

That is for the LVDS connection to the Multi Function Screen:

Application: 10-way black connector

Terminal	Allocation of channels of connector
1	Clock LVDS CLK1 +
2	Clock LVDS CLK1 -
3	-
4	Channel LVDS A0 +
5	Channel LVDS A0 -
6	Channel LVDS A2 +
7	Channel LVDS A2 -
8	-
9	Channel LVDS A1 +
10	Channel LVDS A1 -

[Sonnic2000]

Thanks for your attachment, but I see now that it's not really clear to me what the names mean. I was hoping to find out the video channel.

[GiveMeABreak]

The LVDS is the video input to the screen. The channels are for the different video and info data streams IIRC.

[Bl3sS]

Can you post the complete wiring for parts B and C?

Im installing a bluetooth module directly into the radio instead of the aux connector which I never used. I swapped pins for left, right and earth audio, pins 4, 10 and 11 in parr B but I dont know if there is a pin for power supply. It'd be very usefull.

Thank you so much.

[GiveMeABreak]

Part "B": 12 way connector

Channel number	Allocation of channels of connector
1	Earth : CD player
2	VAN Low : CD player
3	Permanent + : CD player
4	Left audio system : CD player
5	-
6	-
7	CAN High : CD player
8	Earth : CD player
9	-
10	Left audio system : CD player
11	-
12	-

Part "C": 12-way black connector (Only with CD changer)

Channel number	Allocation of channels of connector
1	Earth : CD player
2	VAN Low : CD player
3	Permanent + : CD player
4	Left audio system : CD player
5	-
6	-
7	CAN High : CD player
8	Earth : CD player
9	-
10	Left audio system : CD player
11	-
12	-

[Bl3sS]

Thank you so much GiveMeABreak

A friend of mine contacted me to ask if I could do the same in his peugeot3008, he has the WIPNAV navigator.

Would you be so kind to post the wiring of this navigator?

I need the same as the other one, a power supply connection, ground, and aux.

Thank you so much!!!

[GiveMeABreak]

This is the WIPNAV system I have provided above.

Are you sure he doesn't have another system like WIPNAV+ or WIPCOM 3D?

If he's not sure, best to pop his VIN up.

[Bl3sS]

Ok, it's the same as mine, i though they were different. He has no usb in the aux, and the main unit has a sd card slot, so it's a normal wipnav. If I'm not wrong... xD

One question, the channel numers with "-", is there any way to know what they can be used for? Or are they just blank connectors with no use at all?

[GiveMeABreak]

They are not used and therefore are useless as they don't connect to anything.
