C5 hydraulic leaking

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

C5 hydraulic leaking

Post by Amarra »

Hello,
I have a C5 3.0 hdi and a pipe is leaking behind the front left wheel .
Can anybody give me a pipe diagram for the region so I can see what pipe needs to be replaced?
Attachments
Last edited by Amarra on 02 Jul 2021, 14:15, edited 1 time in total.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

Hi and welcome - please do have a search on the Forum as there are lots of topics on the suspension system struts and pipes - one here to start you off:

viewtopic.php?t=58759&start=15

If it is the strut, you will need a replacement as there are no serviceable parts on these.
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Thank you ,I tried searching ,but nothing came up ,maybe I used wrong terms...

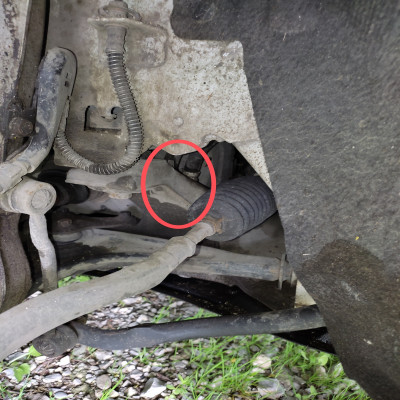

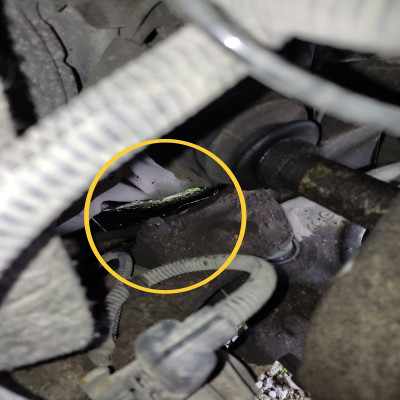

I will try find the exact location of the leak and post some picture .
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

That would help. You can use the 'Full Editor & Preview' button to go to the advanced post editor and there you can upload pictures directly to the Forum or link to YouTube videos.

That would help clarify where the leak is likely to be from.
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Another question ,can I use motor oil instead of LDS ?
User avatar
white exec
Moderating Team
Posts: 7378
Joined: 21 Dec 2015, 13:46
x 1443

Re: C5 hydraulic leaking

Post by white exec »

Absolutely not! You must use LDS in these systems.
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Thanks.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

Ok, so this looks like it is the low pressure piping - but to be sure here are both the low and high pressure pipes in this area for you to confirm - with recommendations for both, but I suspect it is the Low Pressure Piping ("N2"):

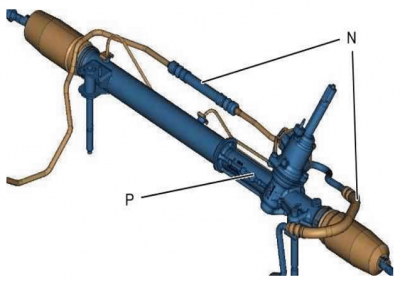

Main Area of Leak - Steering Mechanism Zone

From your pictures, I would suggest Zone "N":


Amarra Leak A.PNG
ZoneProbabilityComponent to be checked firstLocating the leak
"N"SevereCrimping of high pressure piping - Stage N1Crimping of high pressure piping
"P"SevereSealing of the rack gaiters - Stage P1Sealing of the rack gaiters

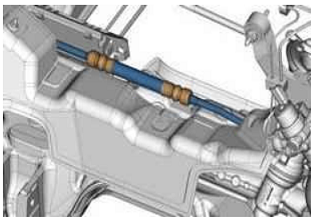

"N1" High Pressure Piping"
Amarra Leak B.PNG
Amarra Leak B.PNG (76.94 KiB) Viewed 46 times

Information
  • Sealing: Crimping on piping
  • Probability: Severe
  • Possible causes: Crimping on piping
    (Body of the pipe porous and/or damaged)
  • Access: Average
  • Repair: Replace the high pressure piping

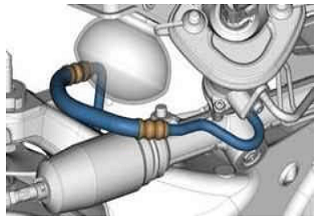

"N2" Low Pressure Piping"
Amarra Leak C.PNG
Amarra Leak C.PNG (80.61 KiB) Viewed 46 times

Information
  • Sealing: Crimping on piping
  • Probability: Average
  • Possible causes: Crimping on piping
    (Body of the pipe porous and/or damaged)
  • Access: Difficult
  • Repair: Replace the low pressure piping
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Thank you ,it started bleeding quiet heavily ,and I run out of LDS...
Can you tell me what is the pressure in those pipe?
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Is the any low fluid level indicator ,like it was on bx ,xantia and xm models?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

There should be a warning on the dash when the fluid gets too low - but I've never seen it to confirm.

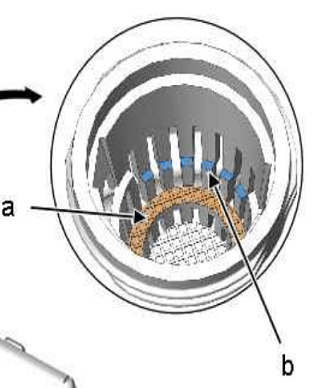

When topping up the reservoir, the LDS level should be checked with the vehicle on the lowest suspension height setting and should be between the 'A' and 'B' marks as shown - so don't overfill it.
LDD MK III.PNG
LDD MK III.PNG (105.55 KiB) Viewed 35 times
I would not recommend driving it whilst you are losing fluid like this as it's a hazard for other road users, but you risk losing steering and suspension if it gets too low.

Using anything other than LDS or Total Fluide DA can result in the complete destruction of the hydraulic system.
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

I've checked the level ,it's below "b" ...
Problem is the car is the only way to go to work ,and since my last company didn't payed me I can't even afford a bike.
I can get some flexible hydraulic pipes from work ,but it's only rated for 40 bar ,if I remember correctly.
Or can I do a complete replacement with stainless steel pipe?
(Sorry I'm certain of it I butchered some sentences ,maybe all of them...)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

I can't tell you the exact pressure in the High or Low pressure pipes, as I can't see any reference to that, but I know that the Hydroelectric Pump (BHI) operates at 140 Bar
Amarra
Posts: 19
Joined: 05 Nov 2017, 18:39
x 1

Re: C5 hydraulic leaking

Post by Amarra »

Thanks for the info ,so the Flexi pipes are out of question.
Those pipes belong to the servo system ,can I reroute them (cutting up the pipe before the damaged part) and feed back the fluid to the reservoir?
It worked on a xantia with broken servo pipe.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25983
Joined: 15 Sep 2015, 19:38
x 2961

Re: C5 hydraulic leaking

Post by GiveMeABreak »

Servo System? Not sure what you are referring to there....
