throttle Pedal Wiring Diagram

Post by tipu2020 »

Hello All,

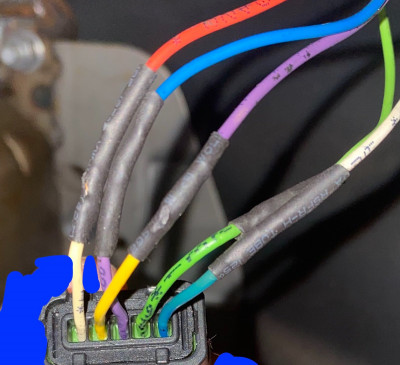

i have recently bought C3 2007 Automatic, RHD, 1.6 , VIN Number VF7**************[VIN obfuscated, can be read by forum staff]. Looks like it needs replacing Throttle pedal to fix fault P0221 however, looks like some work has been done in past and connector to pedal looks bit odd as wires seems to be in different colour and joined together See Attached picture.

I am looking for throttle pedal wiring diagram to confirm and found viewtopic.php?t=62809 , I can see the same wiring however the colour for wire 1378 (Beige) is Blue in my car.

I would really appreciate, if someone can confirm that 1378 should be blue or help me with throttle pedal wiring diagram to ECU and any interconnecting connectors .


Thank you and kind regards,
Tipu2020
Attachments

User avatar
GiveMeABreak
Forum Admin Team
Posts: 24382
Joined: 15 Sep 2015, 19:38
x 2667

Re: throttle Pedal Wiring Diagram

Post by GiveMeABreak »

Don't worry about the colours so much as the actual connection.

The positions and colours of the wires before the plug are correct - but somebody has changed the plug and used the wires from that plug to join them to the loom at the heat shrink.

So if you focus on the wiring before the joint to the plug, they are in the correct positions:

Pin 1 - White (Blue at the Plug)
Pin 2 - Green (Green at the Plug)
Pin 3 - Blue (Violet at the Plug)
Pin 4 - Violet (Yellow at the Plug)
Pin 5 - Red (White at the Plug)

So to confirm, the wires are in the correct positions.

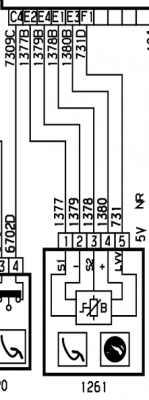

C3 II 1261 Plug A.PNG

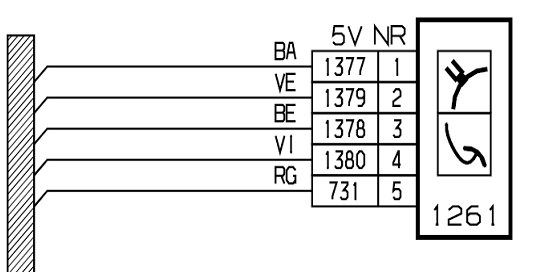

C3 II 1261 Plug B.PNG
Connection From Throttle to Engine ECUPin Out and Colours of Throttle Connection Plug

tipu2020
Posts: 2
Joined: 24 Jun 2021, 07:05

Re: throttle Pedal Wiring Diagram

Post by tipu2020 »

Thank you so Much for quick reply
