Hello All,

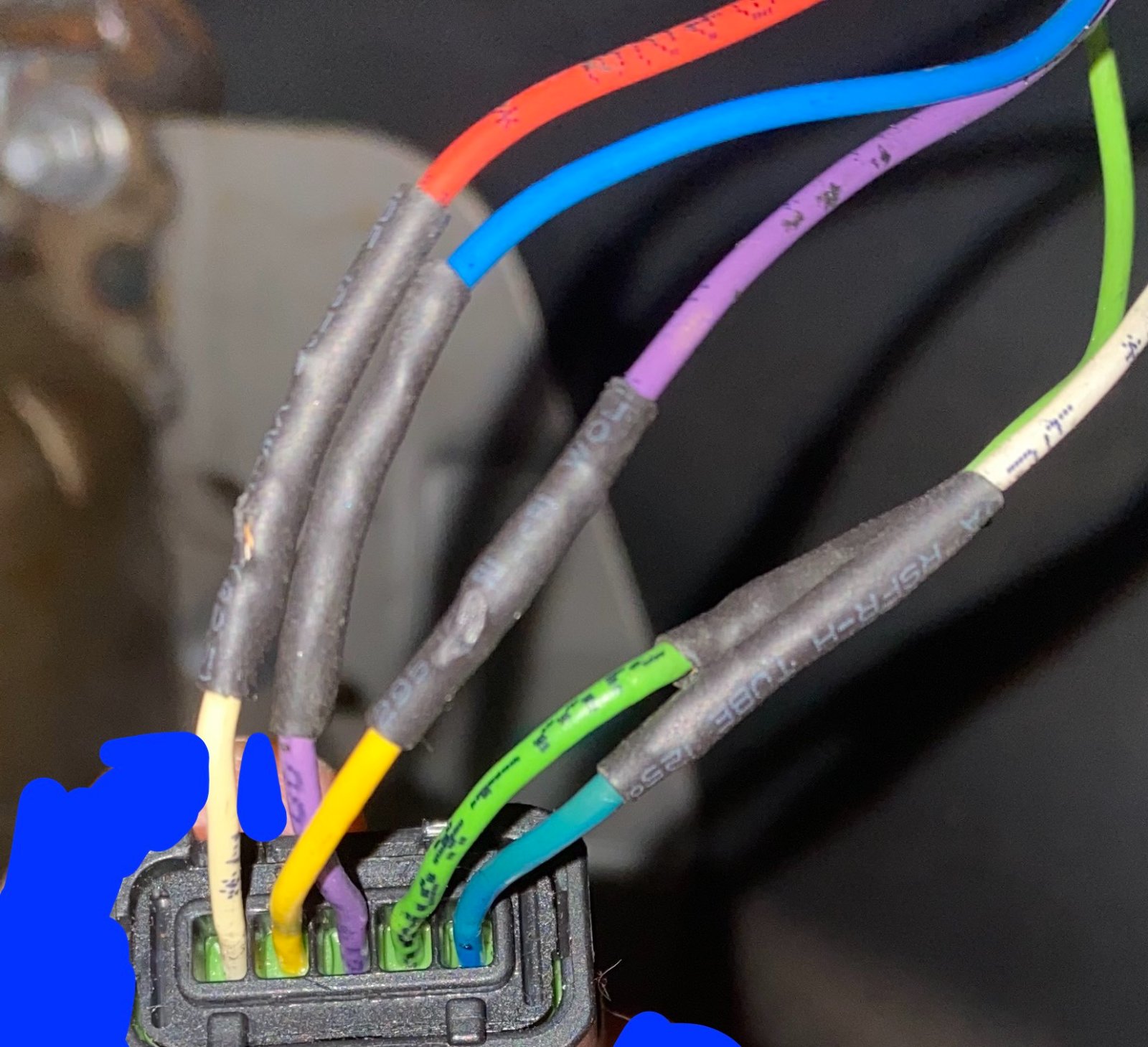

i have recently bought C3 2007 Automatic, RHD, 1.6 , VIN Number VF7**************[VIN obfuscated, can be read by forum staff]. Looks like it needs replacing Throttle pedal to fix fault P0221 however, looks like some work has been done in past and connector to pedal looks bit odd as wires seems to be in different colour and joined together See Attached picture.
I am looking for throttle pedal wiring diagram to confirm and found viewtopic.php?t=62809 , I can see the same wiring however the colour for wire 1378 (Beige) is Blue in my car.
I would really appreciate, if someone can confirm that 1378 should be blue or help me with throttle pedal wiring diagram to ECU and any interconnecting connectors .
Thank you and kind regards,
Tipu2020
throttle Pedal Wiring Diagram
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: throttle Pedal Wiring Diagram
Don't worry about the colours so much as the actual connection.
The positions and colours of the wires before the plug are correct - but somebody has changed the plug and used the wires from that plug to join them to the loom at the heat shrink.
So if you focus on the wiring before the joint to the plug, they are in the correct positions:
Pin 1 - White (Blue at the Plug)
Pin 2 - Green (Green at the Plug)
Pin 3 - Blue (Violet at the Plug)
Pin 4 - Violet (Yellow at the Plug)
Pin 5 - Red (White at the Plug)
So to confirm, the wires are in the correct positions.
The positions and colours of the wires before the plug are correct - but somebody has changed the plug and used the wires from that plug to join them to the loom at the heat shrink.
So if you focus on the wiring before the joint to the plug, they are in the correct positions:
Pin 1 - White (Blue at the Plug)
Pin 2 - Green (Green at the Plug)
Pin 3 - Blue (Violet at the Plug)
Pin 4 - Violet (Yellow at the Plug)
Pin 5 - Red (White at the Plug)
So to confirm, the wires are in the correct positions.

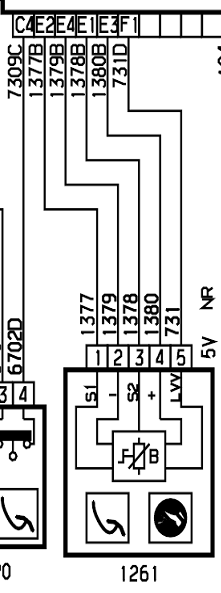

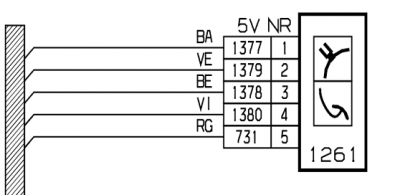

Connection From Throttle to Engine ECU | Pin Out and Colours of Throttle Connection Plug |
Please Don't PM Me For Technical Help
Marc
Marc
Re: throttle Pedal Wiring Diagram
Thank you so Much for quick reply
