Hi All,

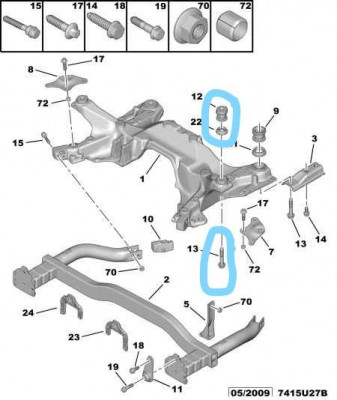

I,m trying to get a lay out for items 12 ,22 and 13 subframe to chassis fixings.
Anybody with knowledge.
Kenny
Re: Front sub frame bolts - solved
