Electric heater matrix C5 wiring

Post by slackgarry »

Afternoon everyone, I am looking for a wiring diagram on how the Electric heater Matrix connects to the car.

Details of car are CITROEN C5 2009 2.0 HDI DIESEL Make of ELECTRIC HEATER MATRIX is "BEHR G7192002"

Thanks for the help.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 23960
Joined: 15 Sep 2015, 19:38
x 2565

Re: Electric heater matrix C5 wiring

Post by GiveMeABreak »

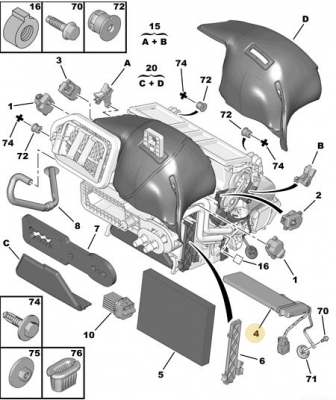

There is no electrical connection to the heater 'Matrix' - are you referring to the passenger compartment air heating resistance module, shown as part (4)? The car heater 'matrix' supplies hot coolant for the main heating of the interior of the vehicle.

The Air Heating Resistance (4) is a supplementary air heating resistor to help with rapid demisting / defrosting of the windscreen on cold days and to help warm up the cabin until the engine gets to temperature.
Slack A.PNG
If not this, then perhaps you can advise of what the issue is?

slackgarry
Donor 2020
Posts: 35
Joined: 17 Apr 2020, 11:38
x 1

Re: Electric heater matrix C5 wiring

Post by slackgarry »

Thanks Marc, thats just what I need, Can you provide how "(4) passenger compartment air heating resistance module" is wired please.

Chears

User avatar
GiveMeABreak
Forum Admin Team
Posts: 23960
Joined: 15 Sep 2015, 19:38
x 2565

Re: Electric heater matrix C5 wiring

Post by GiveMeABreak »

X7 Resistance.PNG

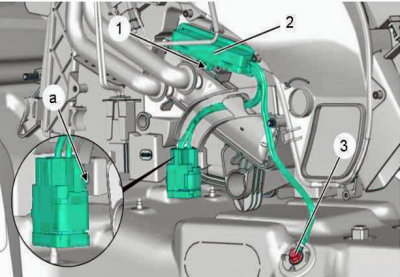

Disconnect the connector (Heater element) .
Unclip the connector (Heater element) at "a".

Remove:
  • The earth bolt (3)
  • The (1) bolt
Remove the passenger compartment air heating resistor (2).

Refit:
  • The cabin air heating element (2)
  • The (1) bolt
  • The earth bolt (3)
Refasten the connector (Heater element) as "a".
Reconnect the connector (Heater element).

Have a look at my X7 Pollen Filter replacement guide, where you will see how to remove the passenger side footwell trim to get to it here:

viewtopic.php?t=56904

There is a picture (J7 & J8) that show this., but it may help with seeing where the trim clips are...

As for the wiring:

The passenger air heater element contains 3 resistive elements.
The resistive elements are Positive Temperature Coefficient (PTC) elements.
When it is commanded, the current passes through the resistance and causes heat to be released.

There is a black 4 way connector.
Pin 1: PTC 1 control
Pin 2: PTC 2 control
Pin 3: PTC 3 control
Pin 4: Earth
