Electrical water temp thermostat.

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Electrical water temp thermostat.

Post by discv »

1.4 petrol 8v 2007

The simple solution to my problem would be to replace the electrically operated thermostat with a conventional type. I've seen a couple of old posts that seem to suggest this is possible.

Any ideas please.
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

A bit more info.- I replaced the thermostat housing complete with a new temp. sensor. I also replaced the thermostat assy. complete with a new yellow connector, which I think is the heater.
I have the fault code P0598- Thermostat heater control circuit low.
The stat makes no attempt to open. The cabin heater works ok but things start getting hot!
I have forced the old stat into the open position, refitted it and the engine runs ok but obviously somewhat colder
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Electrical water temp thermostat.

Post by white exec »

Unusual for a new thermostat not to function.
The opening of the 'stat does depend on it being properly surrounded (on both sides) by coolant.
Is it possible that the system wasn't properly bled after fitting, and there's an air pocket trapped in this high-point of the system?
If you've now got the new one off the car, test it in some hot water - it should open around 90degC (haven't checked the precise figure for your car).
Chris
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

If my understanding is correct, the option to test the stat in hot water is not on. Some form of electrical signal is required for the stat to operate.
Now if I could find out what sort of voltage this signal is- then maybe I could 'hot wire' the stat.
P0598 seems to indicate that there is a problem a problem with this signal.
Your comment about trapped air is interesting- the system was fully and carefully bled, but the stat remaining closed seems to cause an airlock.
All of which is taking me back to square 1. My initial port of call was head gasket- which I replaced, skimming the head at the same time.

I really need all the help I can get on this one!
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Electrical water temp thermostat.

Post by white exec »

" 1.4 petrol 8v 2007 "
Can you confirm what car we're talking about here, and its VIN number, so we can look out some details?
Thanks.
Chris
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

VF3**************[VIN obfuscated, can be read by forum staff]. Thanks for hanging in with me!
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
wheeler
Posts: 6849
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 718

Re: Electrical water temp thermostat.

Post by wheeler »

Many 'electrical' Thermostats are actually just normal thermostats with a little built in heater element that can be activated to make the wax melt faster to control the opening of the thermostat. Not sure if your car has this type or not.
Have you tried operating the start with diagbox? You can connect a noid light in the electrical connector in place of the stat to see if the signal is being sent to it when you activate it as you wont know it is activating because its silent.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Electrical water temp thermostat.

Post by GiveMeABreak »

So you have the TU3A Engine.
Moderator edit:
and a 207 5 DOOR SALOON 1.4 i 75 (TU3A) Manual gearbox 5


This has a thermostat at the front which is available separately:

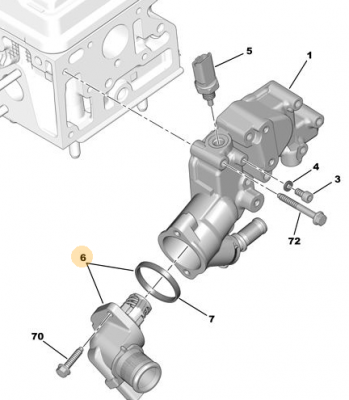

Disc Thermo.PNG
Item (6) Part: 1336Z2, £72.54
Please Don't PM Me For Technical Help

Marc
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

"Have you tried operating the stat with diagbox?"- quote
Diagbox reports a fault with the heater circuit. I am certain that that stat is receiving no signal.

"Many 'electrical' Thermostats are actually just normal thermostats-----Not sure if your car has this type or not."-quote
I'll chuck it in hot water tomorrow and see what happen!

The stat part no. that Marc quotes is indeed the item that I cannot get to function.

I'm going to try and fit a standard mechanical stat. tomorrow meant for an earlier engine. Part no. 1336Q2. If it works I think the trade off will be a constant MIL
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Electrical water temp thermostat.

Post by GiveMeABreak »

Until your next MOT! I don’t think they allow any engine warning lights on for a pass - will have to check...
Please Don't PM Me For Technical Help

Marc
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Electrical water temp thermostat.

Post by xantia_v6 »

On the EP engines, you can disconnect the thermostat heating element and replace it with a 50Ω 5W resistor to keep the ECU happy. Maybe it would also work with your engine.
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

So, the stat does not open on being plunged into very hot water.
The heater in the stat housing shows continuity- so no chance of cheating the ECU with a resistor. Good tip though!
I have yet to try and fit the mechanical stat.

Meantime- could anyone find me a diagram so that I can look for a wiring fault between the ECU and the stat heater element.
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Electrical water temp thermostat.

Post by xantia_v6 »

discv wrote: 13 May 2021, 13:09 So, the stat does not open on being plunged into very hot water.
That sounds like a faulty thermostat.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Electrical water temp thermostat.

Post by white exec »

It does. Temp must be near 90degC though.
Chris
discv
(Donor 2020)
Posts: 145
Joined: 12 Jul 2017, 17:40
Location: South London
My Cars: '05 X Pic 2.0 Hdi
'08 C4 Pic 1.6 Hdi EGS
1973 GS 1220 RHD service van
x 23

Re: Electrical water temp thermostat.

Post by discv »

So the electrical stat has been replaced with a mechanical one [part no. as noted above] and it is opening in the expected way.
I believe the electrical stat is not working because it has no/low electrical supply.
However, in my bones, I have a nagging suspicion that I am dancing around with a hairline crack in the cylinder head. This may be causing problems with the temperature sensor
C4 Grand Picasso 1.6 HDi 16V FAP/DPFS 110, -Auto (DV6 - 80kW) (C4) (DT) (2006-2008)
Toyota Aygo Black 2007 [well almost a french car!]
Xsara Picasso 2.0 Hdi Exclusive 2005
1220 GS Service Van RHD 1973
Post Reply
