Wiring Diagram Despatch 2.0hdi 2013

Post by mattbike »

HI Folks

I'm after a wiring diagram for a Citroen Despatch 2.0 hdi 2013

Having troubles with a new / secondhand engine that we have fitted. The old engine seized due to an oil pump failure.

New engine has problems with the injector harness.

Thanks in advance

Matt
Top
wheeler
Posts: 6885
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 730

Re: Wiring Diagram Despatch 2.0hdi 2013

Post by wheeler »

What is your RP number? this can be found on the bottom of the tyre pressure sticker.
Attachments
Top
mattbike
Posts: 3
Joined: 23 Apr 2021, 15:24
Location: Caerphilly
My Cars: Citroen dispatch Van

Re: Wiring Diagram Despatch 2.0hdi 2013

Post by mattbike »

11475U9
Thanks
Matt
Top
wheeler
Posts: 6885
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 730

Re: Wiring Diagram Despatch 2.0hdi 2013

Post by wheeler »

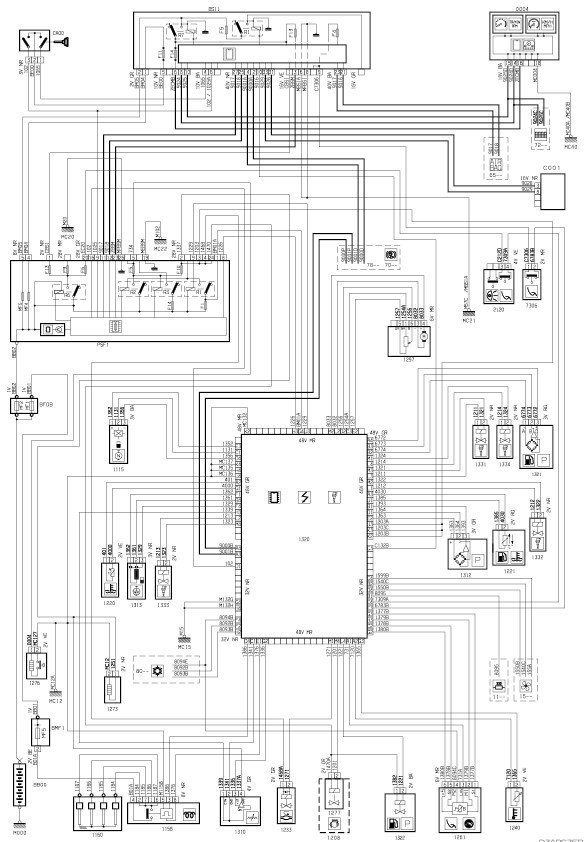

This should hopefully tie up with what you have.
Attachments

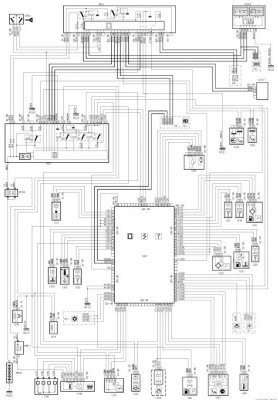

Dispatch inj.jpg
Top
mattbike
Posts: 3
Joined: 23 Apr 2021, 15:24
Location: Caerphilly
My Cars: Citroen dispatch Van

Re: Wiring Diagram Despatch 2.0hdi 2013

Post by mattbike »

That's great, many thanks wheeler
Top
