c4 abs communicatin

Post by ian john »

Hi everyone, just joined and hope someone can help me keep sane
My wife has a 2011 c4 HDI sensotronic .driving home a month ago vehicle display said gearbox fault,abs esp fault engine fault so I'm a mechanic by trade and have 2 diagnostic tools . launch euro tab and a snap on modis both came up with communication to all modules except ABS= no communication
have checked the following all fuses inside and under bonnet , untaped the loom by bulkhead/battery looking for corroded wiring ,no damp in under bonnet fuse box
removed BSI and opened up all clean etc .
checked canbus resistance =60 ohms and 120 if I unplug ABS so assuming canbus terminates there . 2 main power and 2 earth to ABS ok also all other wires show continuity
my modis has a 2 channel scope and checked waveform of canbus at ABS and diagnostic port, can high and low mirror image each other assume ok .so I bit the bullet and sent ABS module off with a report for test they reported faulty and sent- back tested and repaired, so i put back together and pretty much the same still no communication with scanners . after pulling most of the car apart I am convined that its got to be the ABS so sent it back , they said they found another fault and repaired under warranty this time I didn't plumb it all in and just plugged in ,still the same .HELP can anyone tell me if communication to ABS goes through another path or what am I missing . all the fault codes are ones I cant seem to get correct info on and they are permanent in BSI as follows
U1F00
U1802
B162C
B1418
U1F48 [this one will cancel ]
P0500 is in engine ECU and is speed sensor related
U1313 electric hand brake
regards
Ian
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: c4 abs communicatin

Post by GiveMeABreak »

Hi Ian

These EGS systems are horrible and we have no end of members with issues with these things, but let's see if I can get you some help with the codes. First off, thanks for the Forum donation.


Next, please pop your VIN up and it will be automatically masked on post submission. I'll need that to ensure the codes are related to the correct system as fitted to your vehicle.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: c4 abs communicatin

Post by wheeler »

It sounds like you have done the proper checks & would say going on the checks you have done I would have come to the same conclusion as you.
The only one thing you have not said is if there is an ignition switched live at the ABS unit? There normally would be, i’d need to look at a wiring diagram to confirm if it has one & which pin it is.
Im not totally convinced by some of these ECU repair companies. I have had ECU’s been sent back with ‘no fault found’ & they ended up being faulty ECU’s.
If you send me your reg or last 8 digits of your VIN i can have a look at a wiring diagram & those fault codes for you.
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Hi Marc and wheeler thanks for help
Marc the vin No is VF7**************[VIN obfuscated, can be read by forum staff] and answer to wheeler,s question
Yes I have a ignition live at pin 35 ( purple wire )
Regards
Ian
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: c4 abs communicatin

Post by GiveMeABreak »

So you have a C4 (B7) 5 DOOR SALOON 1.6 HDI 115 (DV6C) with piloted manual gearbox 6 (With stop and start)

I can only pull some of those codes as there are 2 digits missing from the end of some of them.

B1418 00: Fault in the status of the seat belt fastening information for determining the presence of the driver
U1F00 00: Fault event not stored in the faults log

U1802 (Digits Missing)
B162C (Digits missing) Possible Fault: Accessories positive relay control and status not coherent.
P0500: Intersystems CAN: Speed information incorrect or absent (Information not received or received invalid by the engine management ECU on the CAN)
U1313 Fault - absence of communication with the stability control (ESP) ECU: No signal

A lot of these relate to the BSI or the intersystems CAN.
Please Don't PM Me For Technical Help

Marc
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Hi Marc , yes the descriptions on my launch said the same , what I can’t make out is why I can’t communicate with the ABS module , would the BSI stop communication, and how ? If the can system checks out ok and I can communicate with all the other modules , but am I correct in saying P0500 suggests can faults ?
Regards
Ian
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Hi all , is it possible to supply a wiring diagram for this dreaded nightmare please
Ian
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: c4 abs communicatin

Post by wheeler »

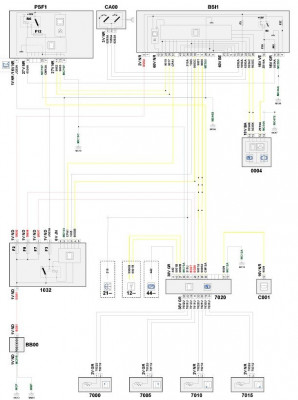

I dont have the full details so this is for a model without ESP
Attachments
C4 ABS.jpg
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: c4 abs communicatin

Post by GiveMeABreak »

I'll sort the correct one for the specific vehicle Wheeler with ESP:

Please Don't PM Me For Technical Help

Marc
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Hi guys thanks , Marc would the components and wiring list be the same as you
Supplied for Mrtattoo .?
Ian
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: c4 abs communicatin

Post by GiveMeABreak »

Yes where the numbers are the same.

The components can be found on the wiki in ascending order in sections here:

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

Here's the main ones for you:

CA00 : ignition switch /
0004 : instrument panel /
1032 : electrical supplies protection and management unit
7801 : ESP cut-off switch
7804 : ESP accelerometer gyroscope
PSF1 : engine compartment fusebox panel
BSI1 : BSI

7810 : front LH ESP sensor
7815 : front RH ESP sensor
7820 : rear LH ESP sensor
7825 : rear RH ESP sensor
Please Don't PM Me For Technical Help

Marc
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Thanks 👍
ian john
(Donor 2021)
Posts: 14
Joined: 05 Apr 2021, 17:05
Location: london
My Cars: 2011 C4 and 1965 Chevrolet corvair

Re: c4 abs communicatin

Post by ian john »

Hi all , question on my C4 re the no comm issues I had ohm meter across pins 6 and 14 of the DLC to check canbus again reading of 61 ohms opened the door to get out and meter went crazy down to 7 ohms , closed door and it seemed to go back to 61 ohms tried with other doors no fluctuation turned light switch went down again same with handbrake switch , is this normal .?
Ian
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: c4 abs communicatin

Post by GiveMeABreak »

Opening doors triggers some networks into standby in the anticipation you will be wanting to start the vehicle so is normal and that is one reason why the BSI reset procedure specifically asks to wait for the times indicated to allow networks to sleep without opening doors or operating equipment. One of these is the RCD wake up circuit.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: c4 abs communicatin

Post by wheeler »

Im not sure if this is normal behaviour or not but i have a C4 i can try it on but wont be till later on this evening.
