C5 X7 Steering Rack?

Post by pasalima »

Hi Guys,
Like a lot of others I’m in the process of replacing a leaking steering rack in my C5.
I have a refurbished rack which the supplier advises is the correct one for me, however, it doesn’t have the correct matching part no (not a PSA part)

I’ll attach an image and I’d be obliged if anyone can identify if it, or if there’s any other way to confirm it’s correct before leaving it in.

Many thanks,
Paul
Attachments

User avatar
KennyW
Donor 2020
Posts: 2070
Joined: 17 Jan 2006, 22:22
x 55

Re: C5 X7 Steering Rack?

Post by KennyW »

Paul,

From the photo it appears right but all the racks are very similar.

What details did you pass to the supplier ?

The rack will depend on wheel size for 17",18" & 19" Citroen part no 98 014 154 80 for 16" is different can't find the part no at the moment.

Kenny

User avatar
bobins
Donor 2021
Posts: 3893
Joined: 05 Jul 2012, 18:07
x 1161

Re: C5 X7 Steering Rack?

Post by bobins »

I've had a quick squizz at my spare rack, and first impressions say it's the same. Certainly all the lumpy bits seem to be in the right places !

User avatar
Sloppysod
Donor 2019
Posts: 564
Joined: 23 May 2015, 23:35
x 51

Re: C5 X7 Steering Rack?

Post by Sloppysod »

pasalima, I have a reconditioned rack in the loft of my garage that has shorter trackrods, it is a C5 X7 but do not know what model.
History:- I have this rack because, I changed my rack in 2017 and was supplied a 'tight' rack as it would not self center, this was replaced with th rack stated above that I could not track. I ended up with a ful refund and a rack I could not use. Hopefully if I ever [-o< , have to replace the rack I will use it as spares,
The rack may look the same and have the same part number on the body but to be sure when you have your rack off, make sure the flat on the spigot is in the same position and both tack rods are the same length, before trying to swap it.

pasalima
Donor 2020
Posts: 38
Joined: 28 Jun 2010, 18:30

Re: C5 X7 Steering Rack?

Post by pasalima »

Thanks Kenny, bobbins,

I dropped it into the garage with the replacement in the boot, expecting to be informed that it wasn’t the correct part. However, I got a call to say the car was ready and I had a really enjoyable drive back. (You know when a Citroen’s suspension is just perfect, usually after it’s been on a ramp, especially the older ones!)

All I need now is a new temp sensor for the exhaust and that should be everything sorted.

Thanks again guys,
Cheers, Paul

User avatar
white exec
Moderating Team
Posts: 6558
Joined: 21 Dec 2015, 13:46
x 1123

Re: C5 X7 Steering Rack?

Post by white exec »

Just out of interest, if that replacement rack wasn't a refurb'd Citroen/PSA part (or was it?), was there any indication what make it was?
Just wondering if there could be an alternative to the failing PSA ones?

pasalima
Donor 2020
Posts: 38
Joined: 28 Jun 2010, 18:30

Re: C5 X7 Steering Rack?

Post by pasalima »

Stu,
I was lucky enough to be able to avoid the technicalities and things worked out well for me.
And like you, I think I’ll hold onto the old rack as a spare, as I’m conscious of how difficult it was to source a replacement when I needed it. Hopefully, I won’t need it, but if I do, I’m prepared!

Cheers,
Paul

pasalima
Donor 2020
Posts: 38
Joined: 28 Jun 2010, 18:30

Re: C5 X7 Steering Rack?

Post by pasalima »

Hi Chris,

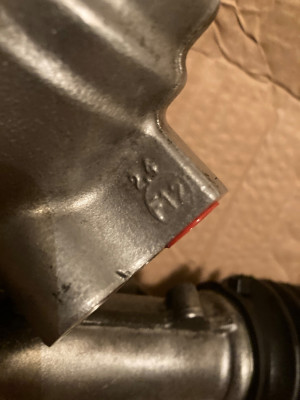

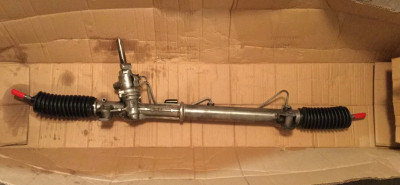

I took a few snaps before it was fitted, maybe you might recognise the manufacturer.
I had previously talked with Marc about the problem and thought a coat of epoxy resin over the weak spot might help, as I’ve used it successfully before to waterproof various items and it’s also chemically resistant.

Cheers,
Paul
Attachments

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22603
Joined: 15 Sep 2015, 19:38
x 2339

Re: C5 X7 Steering Rack?

Post by GiveMeABreak »

Looks like an original rack and these are made by ZF.

User avatar
bobins
Donor 2021
Posts: 3893
Joined: 05 Jul 2012, 18:07
x 1161

Re: C5 X7 Steering Rack?

Post by bobins »

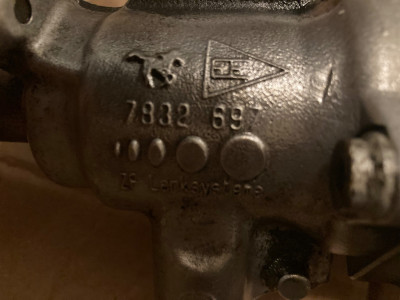

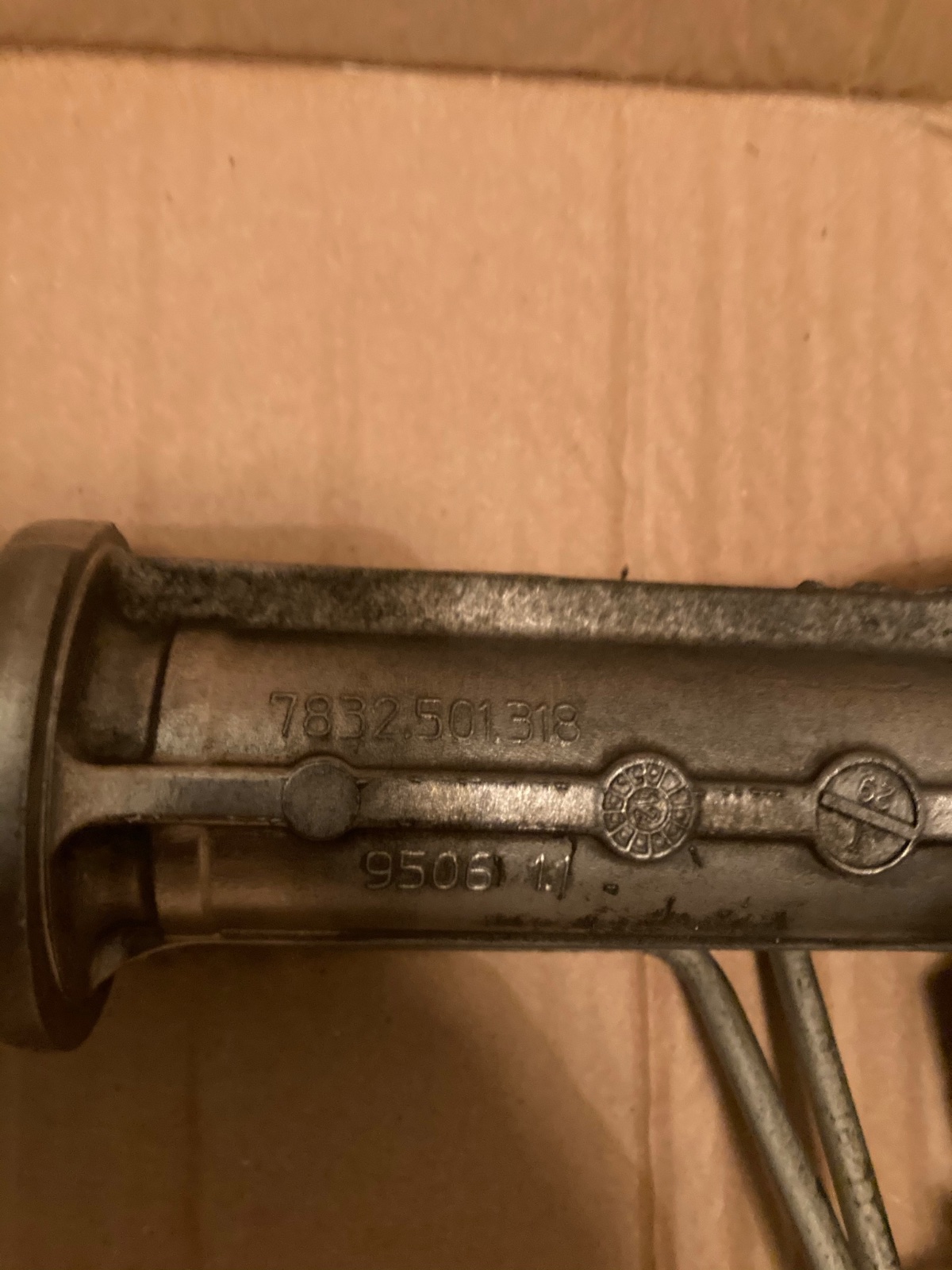

There's a few subtle differences on your pinion casting to the one I've got here. Yours shows what appears to be a galloping dobbin above the '7832' number, whereas mine shows what looks like a stylised 'EDM'. Yours also has what looks like a '2.4 F12' cast into it (middle pic) whereas mine has nothing except a blank circle where your 'F12' is. I'm not venturing out into my shed to compare the numbers on your bottom picture though, as it's dark and cold out there :lol:

User avatar
white exec
Moderating Team
Posts: 6558
Joined: 21 Dec 2015, 13:46
x 1123

Re: C5 X7 Steering Rack?

Post by white exec »

Have done a quick trawl through ZF Group sites, racks, wikipedia entries, etc, and can't find any example of the stallion logo/symbol. ZF own a huge number of subsidiaries, which complicates identification. The ZF "ZF" logo is widely employed.
Casting reads ZF Lenksysteme. The logo for this is the series of enlarging circles. Looks like a joint business with Bosch.

Looking further, the 7832 697 is also a ref no for Lizarte remanufactured/replacement steerting racks for C5 etc.

User avatar
bobins
Donor 2021
Posts: 3893
Joined: 05 Jul 2012, 18:07
x 1161

Re: C5 X7 Steering Rack?

Post by bobins »

The 7832 697 number is clear on my original pinion casting i.e. the one fitted to my car in 2009, as is the ZF Lenksysteme name, so I think the 7832 697 is the original casting reference number. I suppose the way it's been made is that the pinion casting is made by one company, it's then assembled by ZF Bosch, then it's supplied to PSA as a complete (substandard !) rack.

User avatar
Lenny
Posts: 137
Joined: 03 Jan 2013, 21:17
x 12

Re: C5 X7 Steering Rack?

Post by Lenny »

It's them pesky Germans.
Everything that seems to go wrong with an X7 seems to be made by German companies.
(and they bombed our chippy)
