C5 X7 tourer rear tailgate trim

Post by centurus2400 »

Would you believe the rear wiper motor appears to have come loose from its moorings and I never know 'quite' where the blade will end up!

I've got as far as taking off the plastic covers and unscrewing the torx fasteners along the base of the trim, but would appreciate any advice on how i proceed from here.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 tourer rear tailgate trim

Post by GiveMeABreak »

Here you go:
X7 Tailgate D.PNG
X7 Tailgate E.PNG
{A}

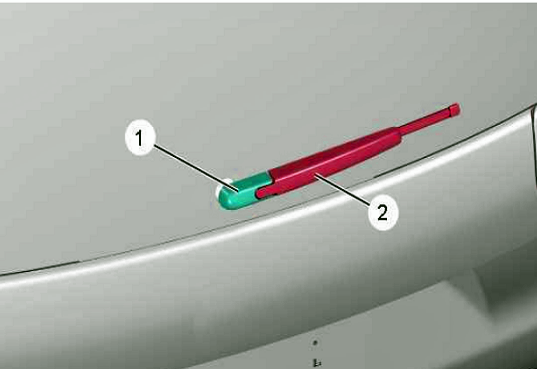

Open the cover (1) (Rear wiper arm (2).
{B}

Remove:

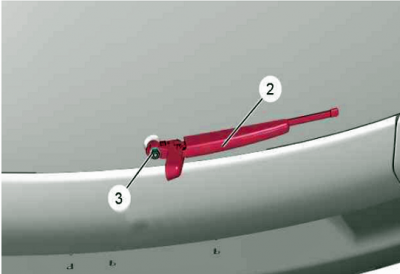

  • The nut (3)
  • The rear wiper arm (2) using a wiper arm removal tool.
X7 Tailgate C.PNG
X7 Tailgate A.PNG
{C}

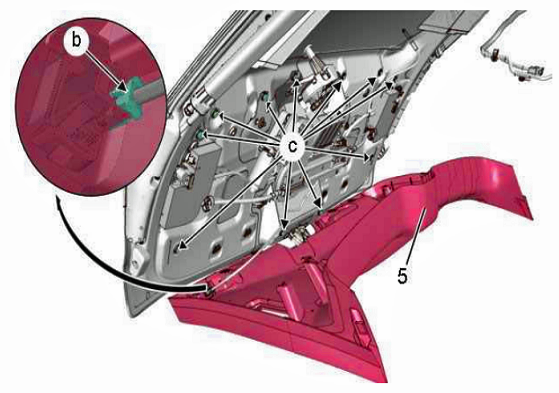

Detach the lower trim (5) (as "c") using a peg pliers trim tool [2].
Disconnect the connector (as "b").
Remove the lower lining (5).
{D}

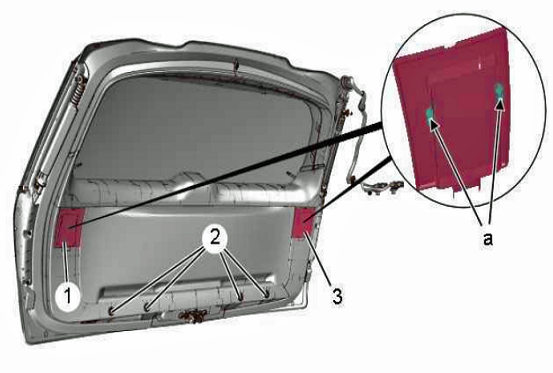

Unclip the access hatches (1), (3) ( as "a") using trim removal tools.
Remove:
  • The access hatches (1), (3)
  • The covers (2)
X7 Tailgate B.PNG
X7 Tailgate F.PNG
{E}

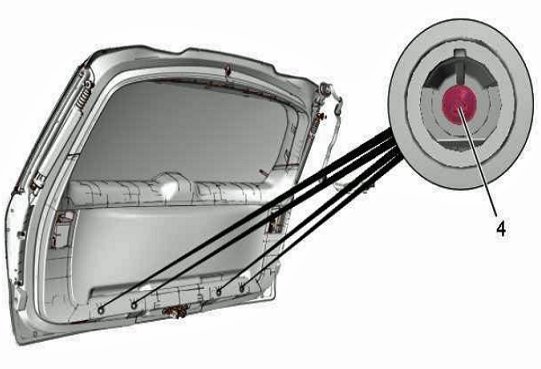

Remove the bolts (4).
{F}

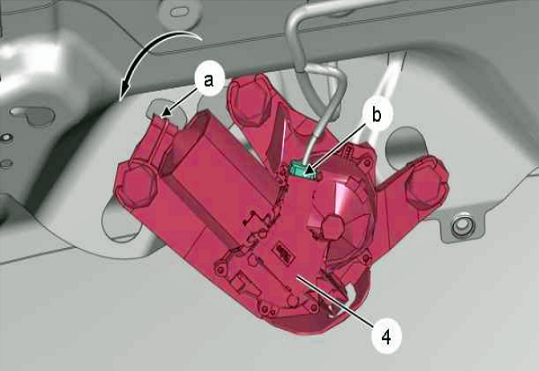

Disconnect the connector ( as "b").
Detach the rear screen wiper mechanism (4) ( as "a").
Turn a quarter of a turn the rear screen wiper mechanism (4) (following the arrow).
Remove: The rear screen wiper mechanism (4).
