Citroen AX 87 dimmed L headlight

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Citroen AX 87 dimmed L headlight

Post by jsp »

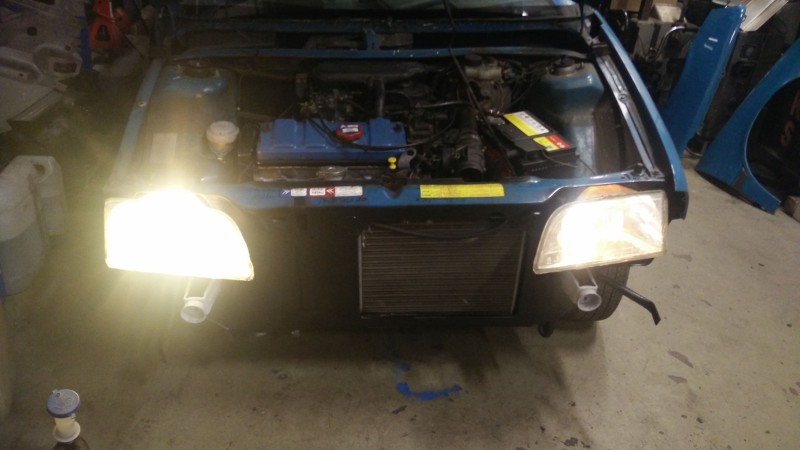

So I just recently welded my AX 10E 1987 and after this I put my headlights back and one headlight is dimmed the other will burn?

Is there no relay between it?

Anyone knows this?

User avatar
xantia_v6
Forum Admin Team
Posts: 7225
Joined: 09 Nov 2005, 23:03
x 376

Re: Citroen AX 87 dimmed L headlight

Post by xantia_v6 »

This is almost certainly a disconnected earth wire, or a corroded earthing point for the headlight.

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Re: Citroen AX 87 dimmed L headlight

Post by jsp »

Should I pull an extra wire earth then to the headlights?

I was rethinking redoing the whole light system.


User avatar
xantia_v6
Forum Admin Team
Posts: 7225
Joined: 09 Nov 2005, 23:03
x 376

Re: Citroen AX 87 dimmed L headlight

Post by xantia_v6 »

You could just try running a new ground wire to the affected headlamp as a temporary repair.

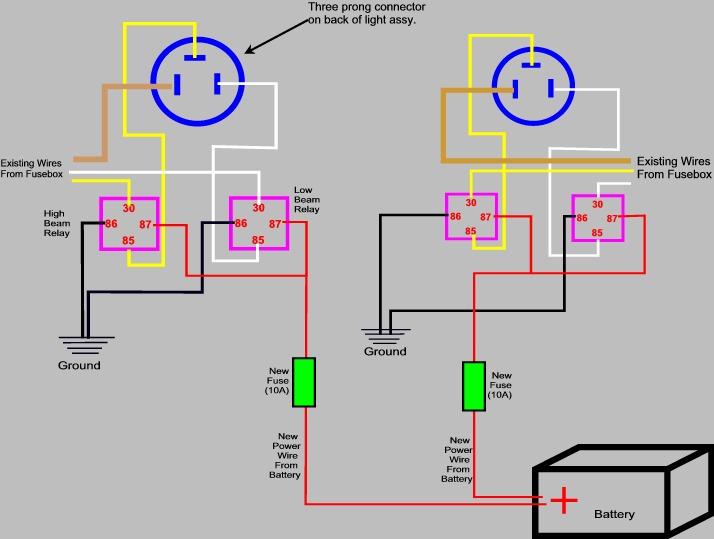

Your wiring diagram is a bit confusing and as drawn, probably would not work.

Note the pin numbering on Bosch relays:


It is probably just as good to fit a single pair of relays that feed both headlights, doubling up on the relays won't improve performance if suitable gauge wiring is used.

User avatar
white exec
Moderating Team
Posts: 5891
Joined: 21 Dec 2015, 13:46
x 968

Re: Citroen AX 87 dimmed L headlight

Post by white exec »

Agree with that. Only two relays needed: one for main beam, one for dipped.
This takes the electrical strain off the lighting/dip switch, and can keep cable runs from battery (fuse) to headlights short.

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Re: Citroen AX 87 dimmed L headlight

Post by jsp »

ok what is the pinout of a H4 lamp?

are the R2 and H4 pinout the same?

User avatar
white exec
Moderating Team
Posts: 5891
Joined: 21 Dec 2015, 13:46
x 968

Re: Citroen AX 87 dimmed L headlight

Post by white exec »

H4 bulb connections.JPG
H4 bulb connections.JPG (14.95 KiB) Viewed 51 times

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Re: Citroen AX 87 dimmed L headlight

Post by jsp »

Thank you for your reply,

Are these the earthing?


Headlights :

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Re: Citroen AX 87 dimmed L headlight

Post by jsp »

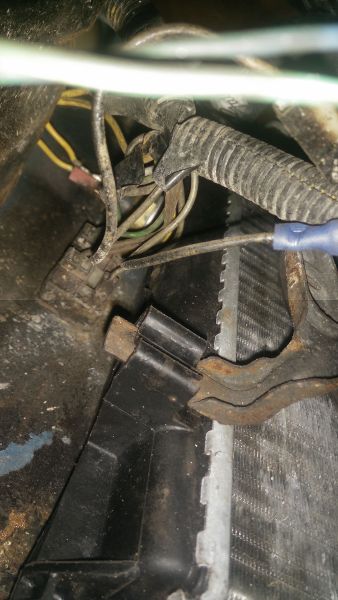

ok just got sorted, broken dipped beam wire. Will rewire all with relays.

User avatar
white exec
Moderating Team
Posts: 5891
Joined: 21 Dec 2015, 13:46
x 968

Re: Citroen AX 87 dimmed L headlight

Post by white exec »

A missing earth/ground connection on an H4 puts both filaments in series, and finding a path back through the other headlight, so the faulty one appears exceptionally dim!

Missing earths on rear light clusters produce all sorts of fun, including indicator and tail-light bulbs dimming and glowing every time the brakes or indicators are used. Car manufacturers still seem to struggle with bodywork grounding. Hardly rocket-science, but it does involve Beans.

User avatar
jsp
Posts: 298
Joined: 04 Dec 2014, 03:05
x 7

Re: Citroen AX 87 dimmed L headlight

Post by jsp »

white exec wrote:
16 May 2020, 08:28
A missing earth/ground connection on an H4 puts both filaments in series, and finding a path back through the other headlight, so the faulty one appears exceptionally dim!

Missing earths on rear light clusters produce all sorts of fun, including indicator and tail-light bulbs dimming and glowing every time the brakes or indicators are used. Car manufacturers still seem to struggle with bodywork grounding. Hardly rocket-science, but it does involve Beans.
Thanks Exec, seems only German/French car struggle to do an extra earth on the rear lights.

Got it fixed now, will rewire all with relays.
