Citroen C4 VTS 180 - Wiring question

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

Hi

I have a LHD Citroen C4 VTS 180 make year 2006. I removed from the car after market installation of alarm, speakers and anti theft device . I had to re-wire wires at the internal fuse box that were cut when the mentioned devices uninstalled.

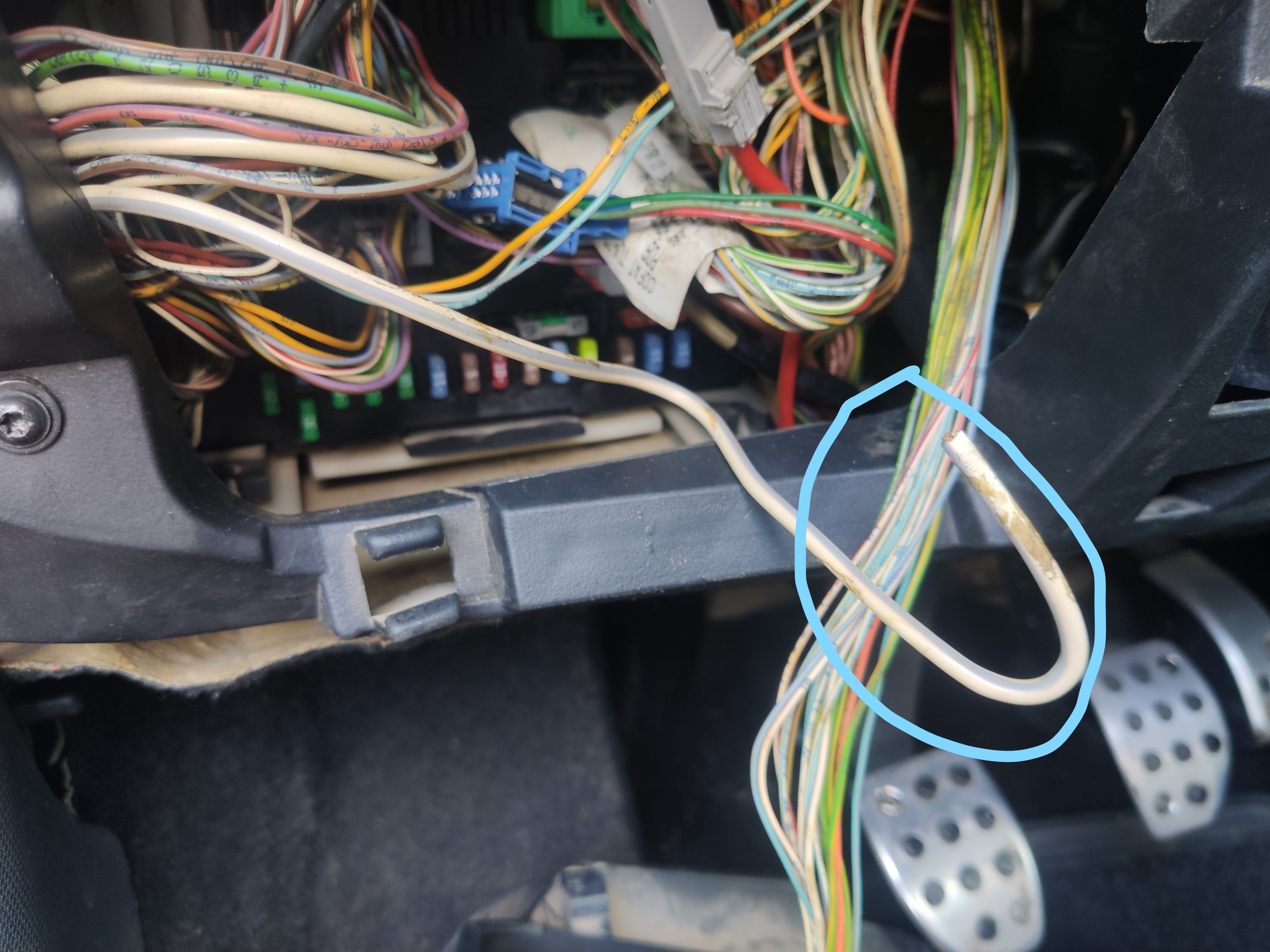

I left with one wire circled int he following picture I didn't fine the other end of the wire. It is strange to me since the wire is thick and is should be easy to fine the other hand, or it was a free wire maybe with a connector on the end that someone cut it. Any body can help with this

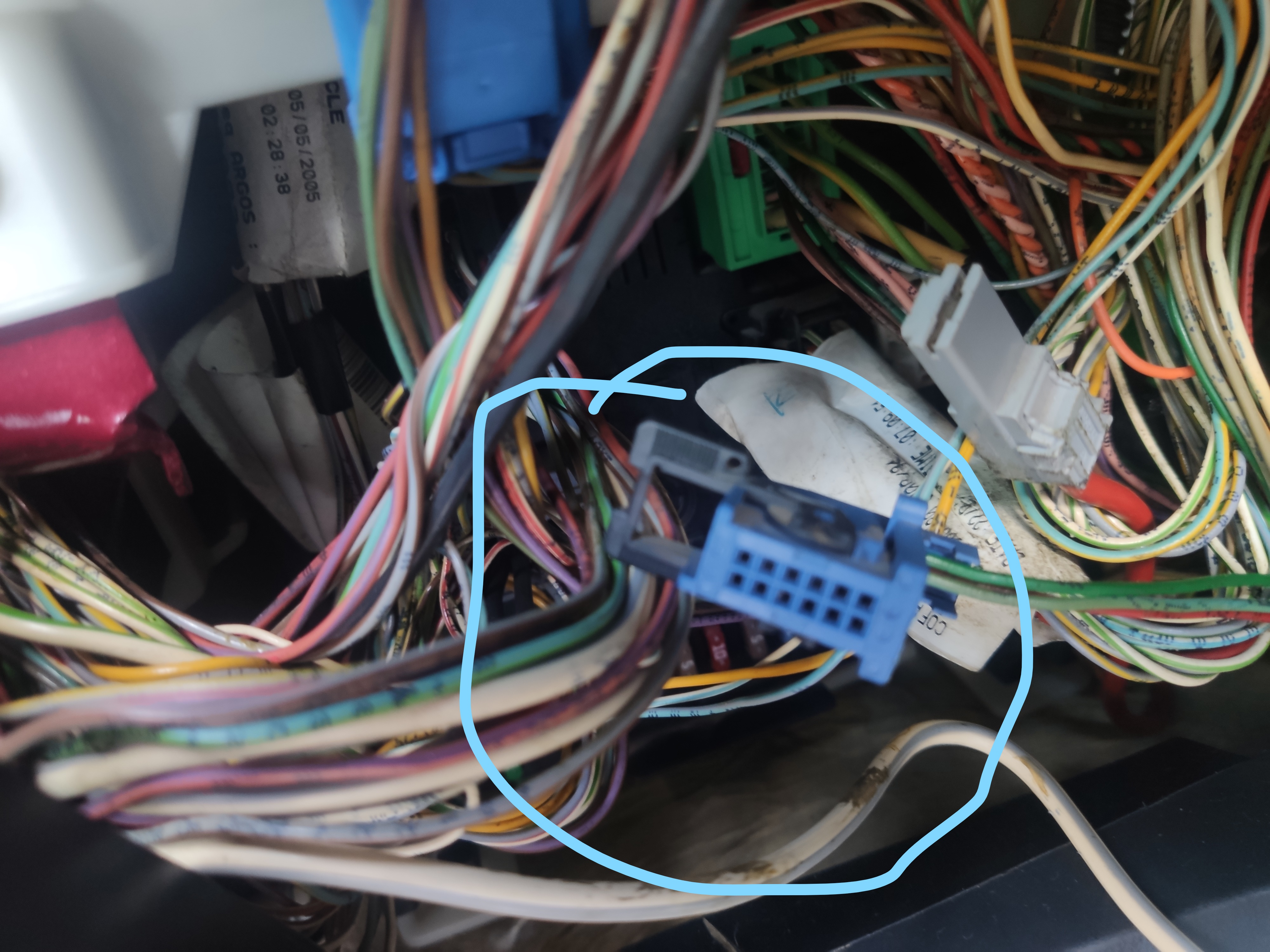

The following connector was also free , I guess it is intended to an option that is not installed in the car. Someone knows what it was intended to ?



Thanks

wheeler
Posts: 4316
Joined: 21 Sep 2002, 19:07
x 155

Re: Citroen C4 VTS 180 - Wiring question

Post by wheeler »

If its an original wire it should have a code printed on it every couple of inches, its not usually more than 5 digits & can be a mix of numbers and letters. This code can give a clue.

User avatar
xantia_v6
Forum Admin Team
Posts: 7471
Joined: 09 Nov 2005, 23:03
x 419

Re: Citroen C4 VTS 180 - Wiring question

Post by xantia_v6 »

That blue connector looks like one for an optional bluetooth hands-free kit.

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

xantia_v6 wrote:
09 Apr 2020, 21:31
That blue connector looks like one for an optional bluetooth hands-free kit.
Isn't the optional bluetooth hands-free kit is RD45

User avatar
xantia_v6
Forum Admin Team
Posts: 7471
Joined: 09 Nov 2005, 23:03
x 419

Re: Citroen C4 VTS 180 - Wiring question

Post by xantia_v6 »

Yes, from about 2013, but before that there was an add-on box for the RD4.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 21240
Joined: 15 Sep 2015, 19:38
x 2116

Re: Citroen C4 VTS 180 - Wiring question

Post by GiveMeABreak »

lancia58 wrote:
10 Apr 2020, 07:07
xantia_v6 wrote:
09 Apr 2020, 21:31
That blue connector looks like one for an optional bluetooth hands-free kit.
Isn't the optional bluetooth hands-free kit is RD45
The later RD45 has Bluetooth built in to the Head Unit - no additional kit needed apart from a compatible Multifunction screen that may be needed if not already fitted - and microphone wiring if it is not already there in the Head Unit block.

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

wheeler wrote:
09 Apr 2020, 20:49
If its an original wire it should have a code printed on it every couple of inches, its not usually more than 5 digits & can be a mix of numbers and letters. This code can give a clue.

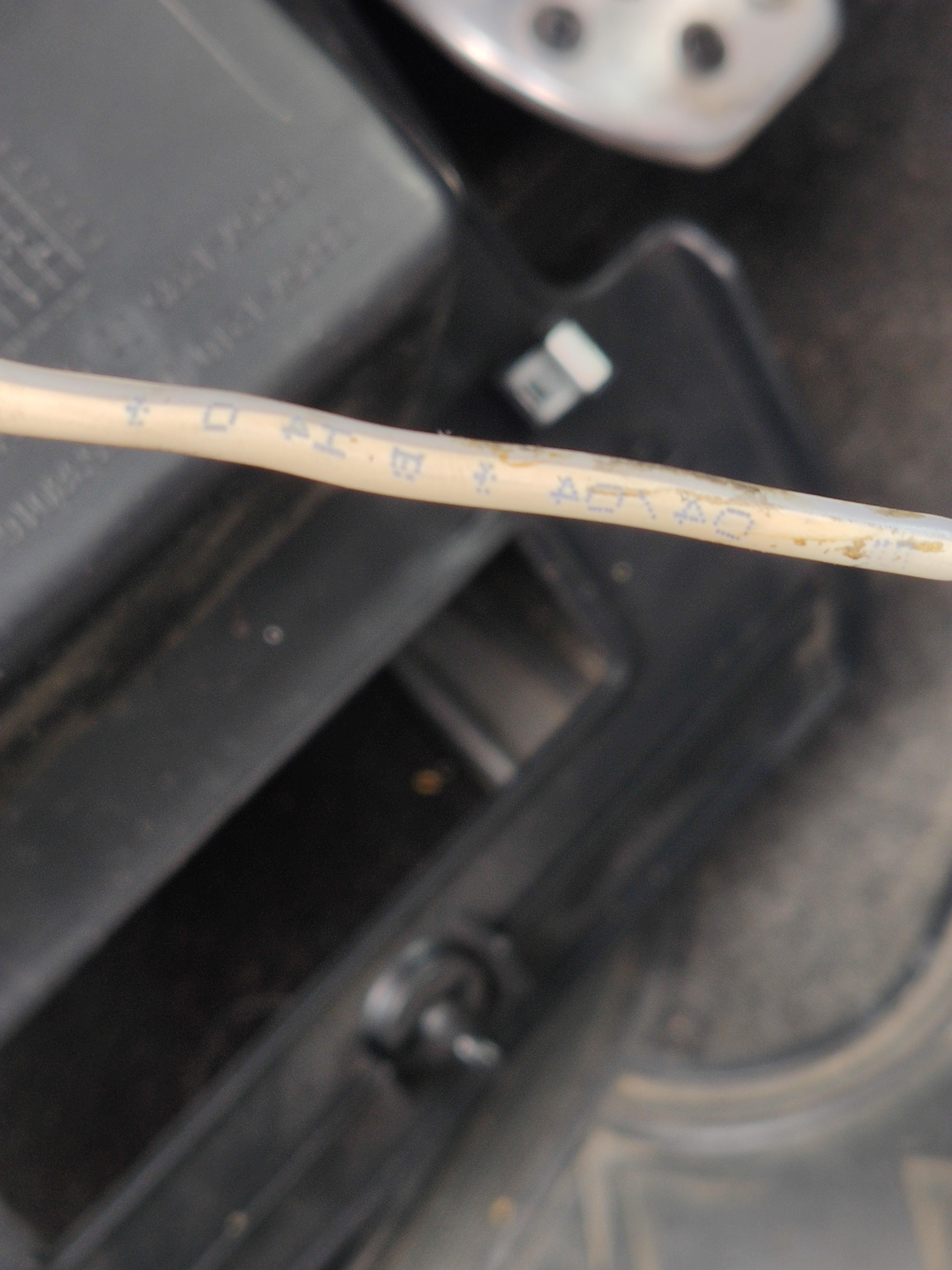

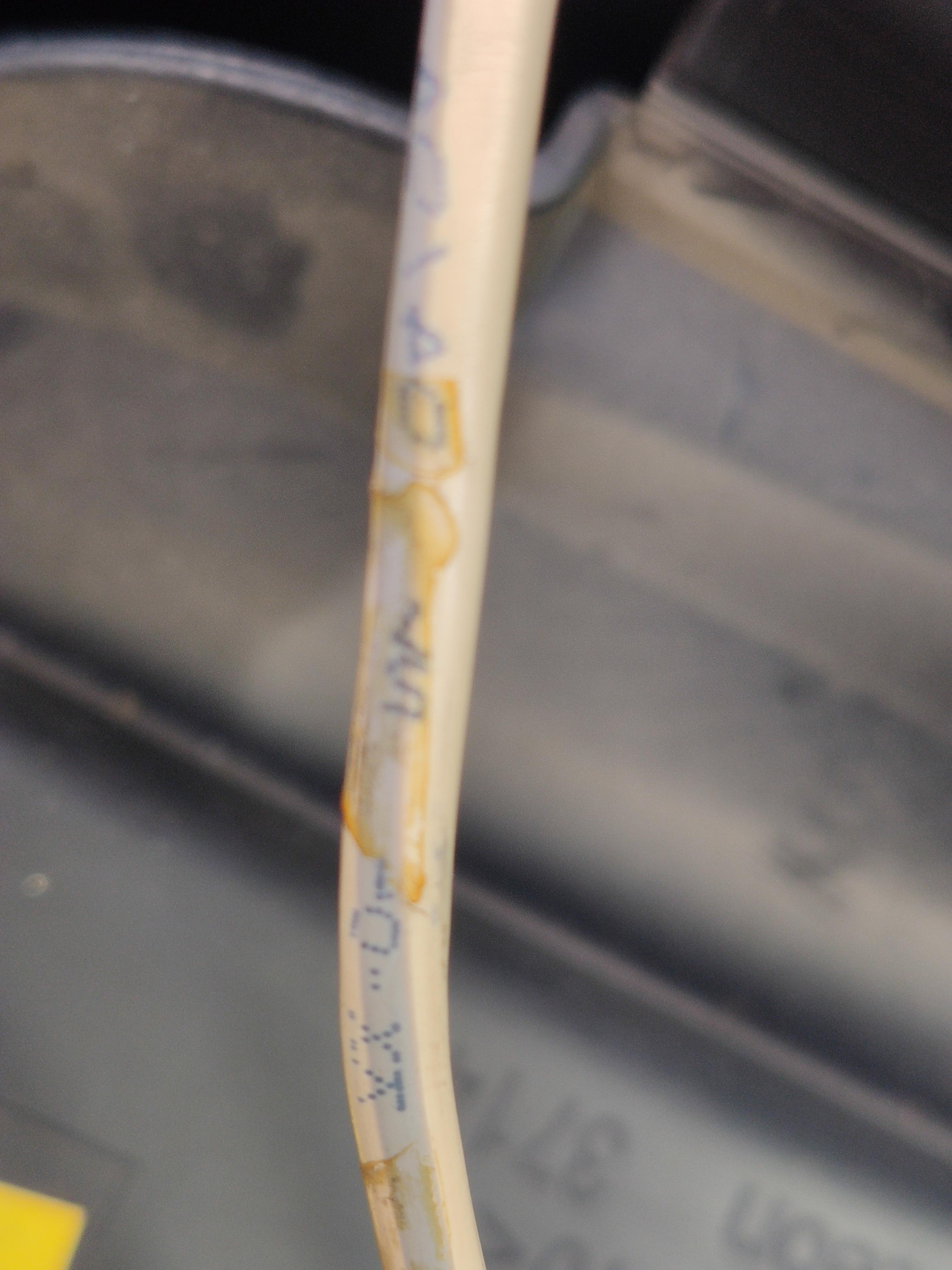

I had to take to pics to get the printed code it looks like it is KX:01 57 04/04 * B H4 0* .

I hope this can help





wheeler
Posts: 4316
Joined: 21 Sep 2002, 19:07
x 155

Re: Citroen C4 VTS 180 - Wiring question

Post by wheeler »

All I can find is that wire BH40 is a battery live supply. Best to make sure the end is insulated.

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

I insulated it. Since it is thick it makes sense that it is battery live supply - can you check if there is a connector on the end ? I'll check with a multi meter if it is power ? Maybe it was used for some after market installation and this is the reason it is cut and the reason that I can not find the other end ?

Thanks

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

wheeler wrote:
10 Apr 2020, 16:38
All I can find is that wire BH40 is a battery live supply. Best to make sure the end is insulated.
I checked the wire and there isn't a 12V regardless if the ignition switch is on/off.


Thanks

User avatar
myglaren
Forum Admin Team
Posts: 18218
Joined: 02 Mar 2008, 14:30
x 1044

Re: Citroen C4 VTS 180 - Wiring question

Post by myglaren »

lancia58 wrote:
11 Apr 2020, 12:32
wheeler wrote:
10 Apr 2020, 16:38
All I can find is that wire BH40 is a battery live supply. Best to make sure the end is insulated.
I checked the wire and there isn't a 12V regardless if the ignition switch is on/off.
Thanks
There are some items that are only active when the engine is actually running - to safeguard the battery from being depleted. Fans being just one example.

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

I also checked for 12v when the engine was running .

lancia58
Posts: 656
Joined: 30 Nov 2010, 08:02
x 5

Re: Citroen C4 VTS 180 - Wiring question

Post by lancia58 »

On Citroen C4 UK I have been told that it is a 12v cable that goes to the boot. It's not live. It's intended to be used when connecting a trailer relay or an audio system in the boot.
