Front N/S wires where do they go

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Hussain88_
Posts: 3
Joined: 31 Mar 2020, 04:11

Front N/S wires where do they go

Post by Hussain88_ »

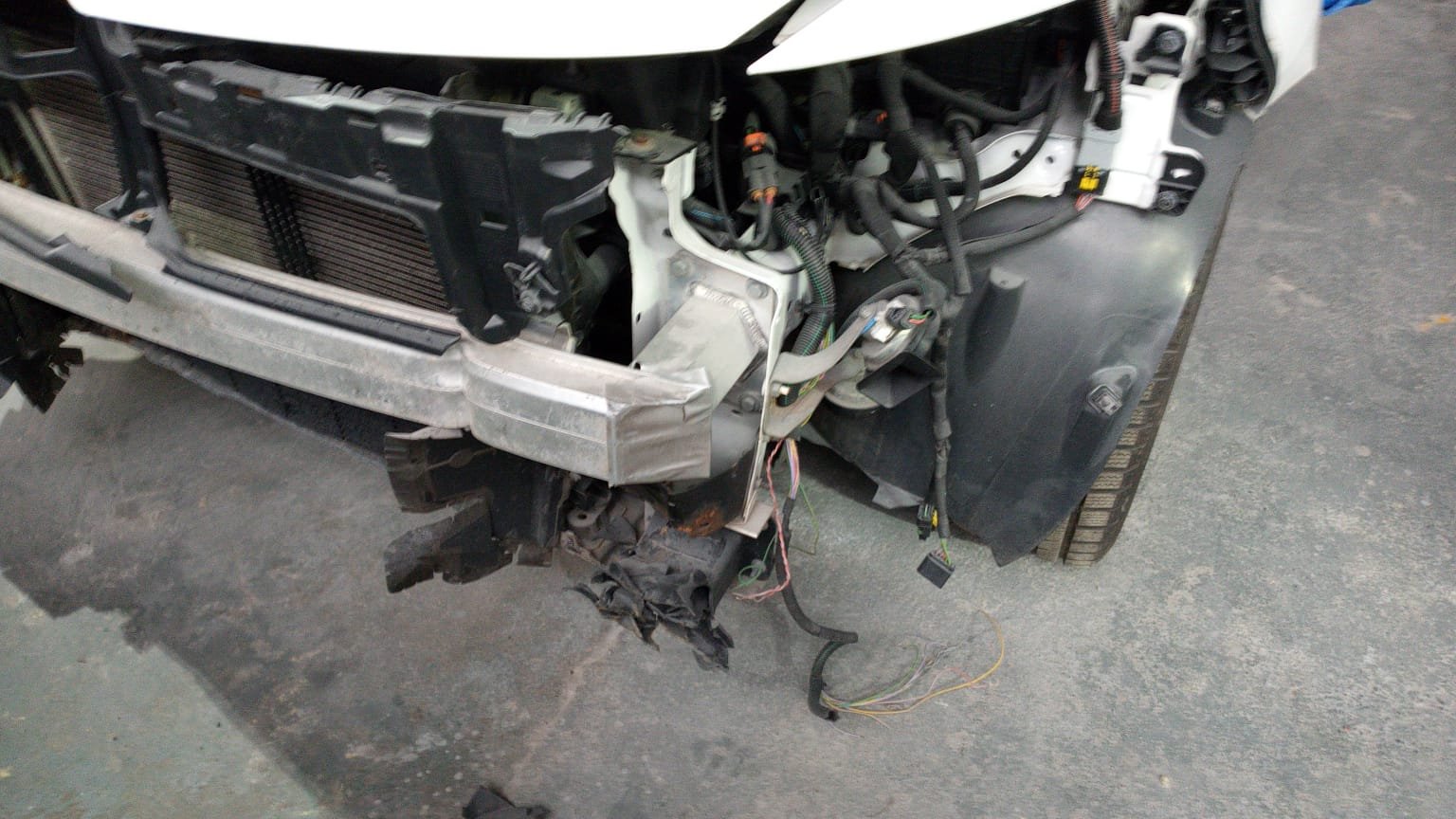

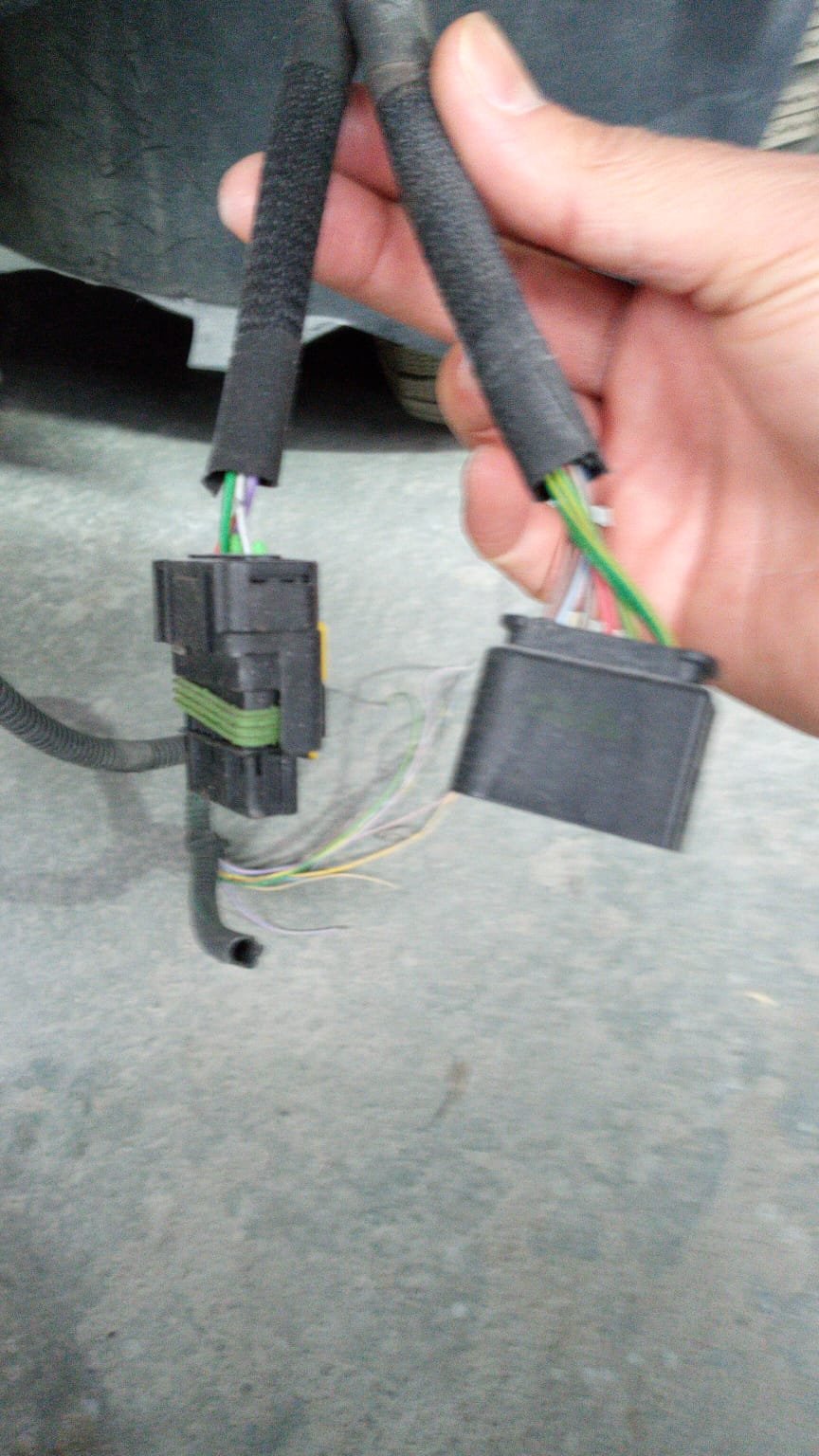

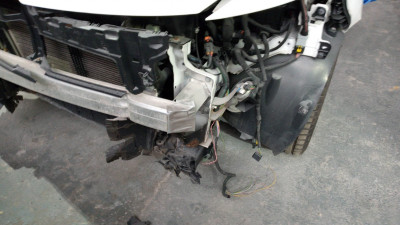

I bought a car from copart with no front bumper and their are atleast 10 wires which need to be connected byt my workshop dont know. Its the front N/S wires could someone help me out or give me any advice. I have attached pictures of the wires
Attachments

User avatar
GiveMeABreak
Forum Admin Team
Posts: 21189
Joined: 15 Sep 2015, 19:38
x 2110

Re: Front N/S wires where do they go

Post by GiveMeABreak »

It's really impossible to tell from those pictures what all the other wiring is for. Although the picture of the control unit is very poor and difficult to read, I can make out that it is the ARTIV module. This is for the active cruise / distance alert radar system. Those other wires could be for the front parking sensors. That's about all I can determine.

admiral51
Donor 2019
Posts: 1945
Joined: 24 May 2007, 10:11
x 156

Re: Front N/S wires where do they go

Post by admiral51 »

It may worth doing some working backwards, not looking at where they go but where they come from.
Each wire should have number on it from memory each one will have an individual number to donate what is does.
The Admins will need the Vin number of the car in question so they can find what it left the factory with and try to figure out the wiring loom etc.

Please have a look at This Topic for more detailed info.

User avatar
white exec
Moderating Team
Posts: 6236
Joined: 21 Dec 2015, 13:46
x 1047

Re: Front N/S wires where do they go

Post by white exec »

Think you need to start making a methodical list, not just of the wire colours, but how they're bunched together (in their flexy conduits). These conduits should be identifiable on one wiring diagram page, and the individual cables/colours as well.
Also make a list of what equipment should be at the front.

With the ends decently separated, you could also power up obvious things like sidelights, headlights, fogs, indicators, horns... and check which wires go live. Some will be Ground connections.

If we can have your VIN, we might be able to dig out the car's wiring diagrams.

Count yourself lucky: this could have been the dashboard :shock:

admiral51
Donor 2019
Posts: 1945
Joined: 24 May 2007, 10:11
x 156

Re: Front N/S wires where do they go

Post by admiral51 »

Looking at the routeing of the wires the ones with plugs on would seem to be for higher up, ie main light cluster.
The ones that are bare seem to be routed down, and grouped in one conduit ?

User avatar
xantia_v6
Forum Admin Team
Posts: 7468
Joined: 09 Nov 2005, 23:03
x 419

Re: Front N/S wires where do they go

Post by xantia_v6 »

Maybe you (should) know that PSA wires have alpha-numeric codes printed every few cm along the insulation, which with the appropriate wiring diagram can be used to ID each wire.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 21189
Joined: 15 Sep 2015, 19:38
x 2110

Re: Front N/S wires where do they go

Post by GiveMeABreak »

If you can list the wiring codes I may be able to assist - but there are some wires that may not be coded - or the codes won't return any data. Let's see.

Hussain88_
Posts: 3
Joined: 31 Mar 2020, 04:11

Re: Front N/S wires where do they go

Post by Hussain88_ »

Thanks for all your replys,Now that my garage is closed because of the covid-19 everything has slowed down and i cant access my car to find out if the wires have numbers on them.but i have the VIN number if that can help VF7**************[VIN obfuscated, can be read by forum staff] and the registration number is ******
Last edited by GiveMeABreak on 02 May 2020, 18:40, edited 1 time in total.
Reason: Reg masked

Hussain88_
Posts: 3
Joined: 31 Mar 2020, 04:11

Re: Front N/S wires where do they go

Post by Hussain88_ »

Plz help thanks

wheeler
Posts: 4295
Joined: 21 Sep 2002, 19:07
x 152

Re: Front N/S wires where do they go

Post by wheeler »

Im afraid a VIN wont be much help, you really need the codes printed on the wires or look at another one the same year & spec to compare.
