Hi All,
I'm looking for a diagram show where all the vacum pipes etc go from and to the Turbo and solenoid valves.
Citroen service parts show it partially but not fully.
Can anyone help ?
My car's details are in the signature.
VIN VF7**************[VIN obfuscated, can be read by forum staff].
Kenny
Looking for
-
KennyW
- Donor 2024
- Posts: 2611
- Joined: 17 Jan 2006, 21:22
- x 163
Looking for
C5 x7 2.0 HDi 160 hp Estate exclusive, moved on.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
-
GiveMeABreak
- (Donor 2016)
- Posts: 41989
- Joined: 15 Sep 2015, 19:38
- x 6956
Re: Looking for
I'll be able to help you shortly with this Kenny.
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
GiveMeABreak
- (Donor 2016)
- Posts: 41989
- Joined: 15 Sep 2015, 19:38
- x 6956
Re: Looking for

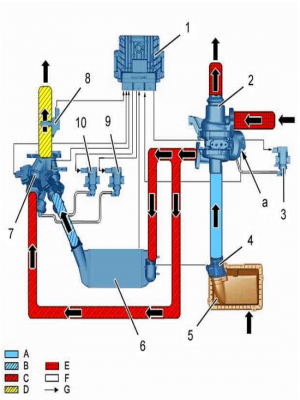

C5 X7 (DW10CTED4) Air Flow System
Click Image to Zoom
Key
Click Image to Zoom
|
| Reference | Designation |
| "a" | Turbocharger Blades Control Diaphragm (With Position Copy Sensor) |
| (1) | Engine ECU |
| (2) | Variable Geometry Turbocharger |
| (3) | Proportional Electrovalve Controlling The Variable Resistance Turbocharger |
| (4) | Air Flowmeter by Mass |
| (5) | Air Filter Unit |
| (6) | Turbocharger Air Cooler |
| (7) | Double Air Mixer With Position Repeat Sensors |
| (8) | Inlet Air Pressure and Temperature Sensor |
| (9) | Turbo Air Cooler By-Pass Control Electrovalve |
| (10) | Air Metering Unit Control Electrovalve |
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
KennyW
- Donor 2024
- Posts: 2611
- Joined: 17 Jan 2006, 21:22
- x 163
Re: Looking for
Thanks Marc,
It will give me something to do whilst I have to self isolate, SWMBO has developed a cough, at least I've got 14 days to look it over.
Maybe I shall even get a chance to check the wiring for the suspension ecu as well.
Kenny
It will give me something to do whilst I have to self isolate, SWMBO has developed a cough, at least I've got 14 days to look it over.
Maybe I shall even get a chance to check the wiring for the suspension ecu as well.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, moved on.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
-
KennyW
- Donor 2024
- Posts: 2611
- Joined: 17 Jan 2006, 21:22
- x 163
Re: Looking for
Marc,
There appears to be only 1 position sensor on my air flow meter, is this correct.
Kenny
There appears to be only 1 position sensor on my air flow meter, is this correct.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, moved on.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
-
GiveMeABreak
- (Donor 2016)
- Posts: 41989
- Joined: 15 Sep 2015, 19:38
- x 6956
Re: Looking for
The flowmeter for the air mass measures the flow and the temperature of the air entering the turbocharger and transmits the information to the engine ECU. It has a single electrical connection - there are no solenoids / electrovalves on this unless you mean something else.
Not to be confused with the Air Doser (7)
Not to be confused with the Air Doser (7)
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
KennyW
- Donor 2024
- Posts: 2611
- Joined: 17 Jan 2006, 21:22
- x 163
Re: Looking for
Marc,
I've got confused it's the air doser i'm talking about
Kenny
I've got confused it's the air doser i'm talking about
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, moved on.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
-
GiveMeABreak
- (Donor 2016)
- Posts: 41989
- Joined: 15 Sep 2015, 19:38
- x 6956
Re: Looking for
Kenny - have a look at my posts here on this thread and the diagrams before, for this engine.
viewtopic.php?p=605199#p605199
I knew I put this up before, but just located it. So only one is used.....
viewtopic.php?p=605199#p605199
I knew I put this up before, but just located it. So only one is used.....
