Turbo D oil cooler in a 205

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
PC2CV
Posts: 74
Joined: 21 Jun 2016, 19:49
Location: Dungannon
My Cars: 1986 305 1.6 Automatic
1996 406 2.1 LX
2013 C4 1.6 HDi
x 7

Turbo D oil cooler in a 205

Post by PC2CV »

Im putting an XUD Turbo D engine that originally came from a Citroen ZX into a Peugeot 205.

Looking to use an oil cooler, i see some factory 205 d turbos have an upright oil cooler for improved clearance.

Servicebox is not much help in showing me this upright oil cooler, any idea if it was fitted to other cars or why its not on servicebox?

The normal oil cooler with the filter coming straight out hits the radiator.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Turbo D oil cooler in a 205

Post by white exec »

Is this the problem item (pancake cooler under horizontal oil filter) ?

click to enlarge

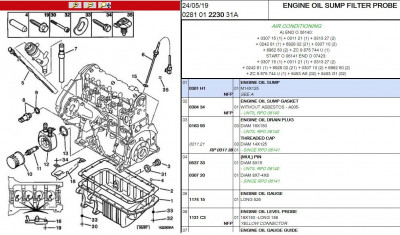

ZX XUDturbo.JPG
Chris
PC2CV
Posts: 74
Joined: 21 Jun 2016, 19:49
Location: Dungannon
My Cars: 1986 305 1.6 Automatic
1996 406 2.1 LX
2013 C4 1.6 HDi
x 7

Re: Turbo D oil cooler in a 205

Post by PC2CV »

Yes that is the problem. The engine currently has that type of oil cooler fitted, but it is touching the radiator.

The upright cooler some 205 turbo diesels had looks like this

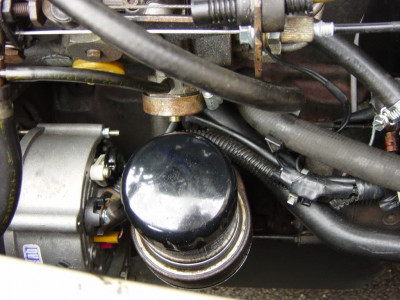

xud upright oil cooler.jpg
Just having some trouble finding a part number for the cooler on servicebox
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Turbo D oil cooler in a 205

Post by white exec »

There is a part (an aluminium casting) that turns everything through 90deg.
The machined smooth surface on these engine blocks will accept
- a horizontal oil filter screwed directly on
- a horizontal oil-water heat exchanger + oil filter (like the diag above)
- the casting I mention, which will support heat exchanger + filter.

All have identical smooth mating surfaces and M20 threading, and use the large square-section O-ring you find on oil filters.
Will try to find a part number for you tomorrow, unless night-shift gets there first.
Chris
