Addendum to Long List of Questions

Post by Haych »

I have finally ventured forth with tool box at hand for the first time with serious intent to perfect my Citroen C5 X7. [-o<

The first thing i was intended sorting was the Cabin fan being permanently on high without ability to adjust. This Heater control module i found easy enough to find and remove. I did a few resistance checks between the new and the old, but the readings i got where between 1 & 4 pins new 10k ohms, old 9k ohms. So not really convinced something is wrong with original. As i have not got access to Sedre thanks to windows 10 pro going wrong. So, i was hoping to get some figures off you good folk as i do not want to blow a new motor control unit. I want to know voltages and other test i can do first.
C5 new (RHS) & old heater fan controller_1560x2080.jpg

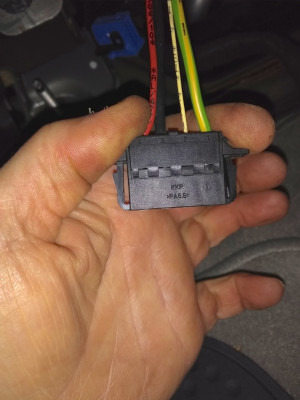

control module plug
control module plug

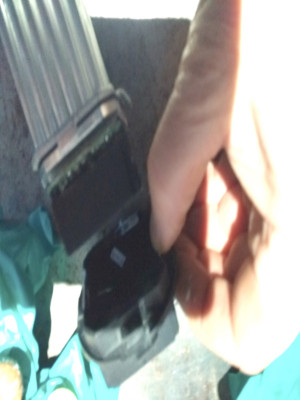

peek inside control module
peek inside control module
secondly, i decided to change the cabin filter while i was there, but something looks wrong to?

Do you agree can you see the error or is it me,

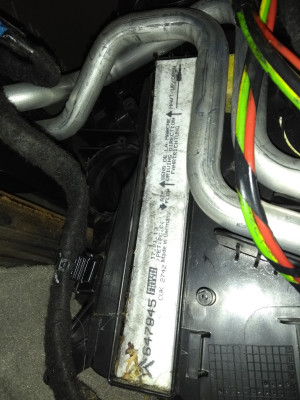

view from passenger seat looking fwd twd. centre o f car
view from passenger seat looking fwd twd. centre o f car
Note the arrows of the original filter prior to me removing it. I am of the opinion that the arrows should point in the direction of the air flow. That said the assumption by me is that the air flow is from front to rear of the car. As the air enters through the grille by the windscreen wipers, then enters the filter then out into the cabin (basically)

now i've seem to got so idea of photos posting, look at this don't think this could be the cause of the smell in the car, especially as the fan has been stuck on full flow since i bought it.
Feathers and all..
Feathers and all..
Last edited by RichardW on 13 Jan 2020, 08:27, edited 1 time in total.
Reason: Tidied up the attachment tags
Haych
Donor 2019
Posts: 37
Joined: 21 Oct 2019, 22:51
x 1

Re: Addendum to Long List of Questions

Post by Haych »

Thanks Marc, was it worth the wait????
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25968
Joined: 15 Sep 2015, 19:38
x 2958

Re: Addendum to Long List of Questions

Post by GiveMeABreak »

That's one of the worst I've seen to be honest. Yes it will cause bad smells - as don't forget the decaying leaves and dead bugs will also add their contribution.

Have a look at my filter when it came out - mine wasn't as black as yours, but had a fair amount of crud. Don't forget to hoover out the compartment before putting a new one back in.

viewtopic.php?t=56904&hilit=pollen

As for the filter direction - no it is correctly inserted. If you read the info under the arrows it says 'Driving Direction' not air flow direction Haych, so it is correct.
User avatar
white exec
Moderating Team
Posts: 7378
Joined: 21 Dec 2015, 13:46
x 1443

Re: Addendum to Long List of Questions

Post by white exec »

There's also a smaller arrow there labelled Air Flow.
Driving Direction??
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25968
Joined: 15 Sep 2015, 19:38
x 2958

Re: Addendum to Long List of Questions

Post by GiveMeABreak »

Yes, so idiot proof:- air flow is always front to rear and driving direction always forward (excluding reverse :-D )
Haych
Donor 2019
Posts: 37
Joined: 21 Oct 2019, 22:51
x 1

Re: Addendum to Long List of Questions

Post by Haych »

nice to know i am an idiot ](*,)
Hell Razor5543
Donor 2021
Posts: 11994
Joined: 01 Apr 2012, 09:47
x 1506

Re: Addendum to Long List of Questions

Post by Hell Razor5543 »

No, you are not an idiot, as you checked that what you were doing was correct (or not). There are no such things as stupid questions, but stupid, avoidable mistakes do exist.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25968
Joined: 15 Sep 2015, 19:38
x 2958

Re: Addendum to Long List of Questions

Post by GiveMeABreak »

Haych wrote:
13 Jan 2020, 11:55
nice to know i am an idiot ](*,)
Never hurts to have a second opinion - no offence intended :-D
