C4 Picasso Mk2 1.6Hdi cylinder no.s

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Rosanbo
Posts: 64
Joined: 16 Nov 2017, 23:07
x 2

C4 Picasso Mk2 1.6Hdi cylinder no.s

Post by Rosanbo »

Hi standing in front of the car looking in the engine bay are the cylinder no.s

1, 2, 3, 4 or

4, 3, 2, 1 ?

Richard, have you got a pictorial guide to removing the air filter and the parts on top of the engine so I can see all the injectors and wiring loom plugs to injectors?

I did once give my VIN on here so my engine was identified is that something you have added to my profile or something so you can see it? Or do I have to keep mentioning it? It was DV6C engine.
CITROEN C4 PICASSO EXCLUSIVE E-HDI 115 AIRDREAM 2013 MK2

I have edited this info to my profile now showing on my sidebar.
RichardW
Forum Treasurer
Posts: 9647
Joined: 07 Aug 2002, 17:12
x 490

Re: C4 Picasso Mk2 1.6Hdi cylinder no.s

Post by RichardW »

Can't easily see which way they are numbered. Have you got a fault on a specific injector? If re-coding then it normally gives you a picture to identify them.

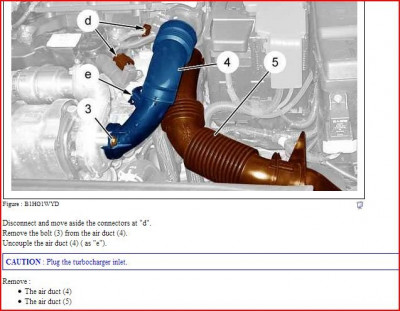

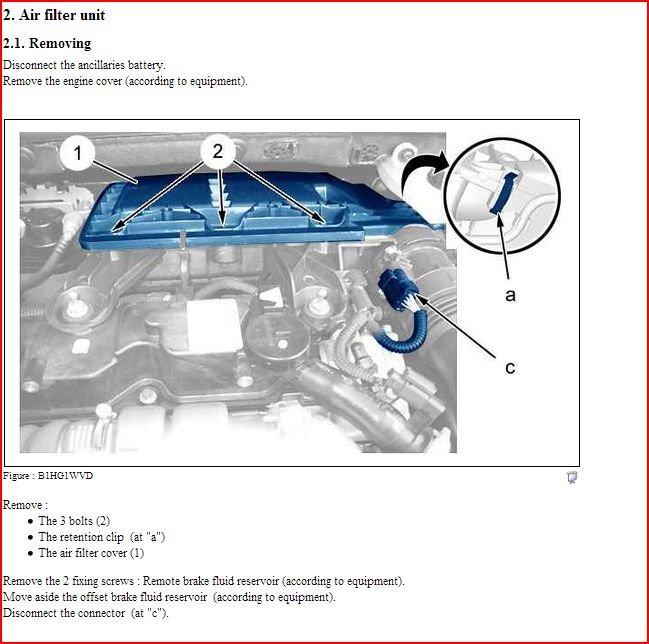

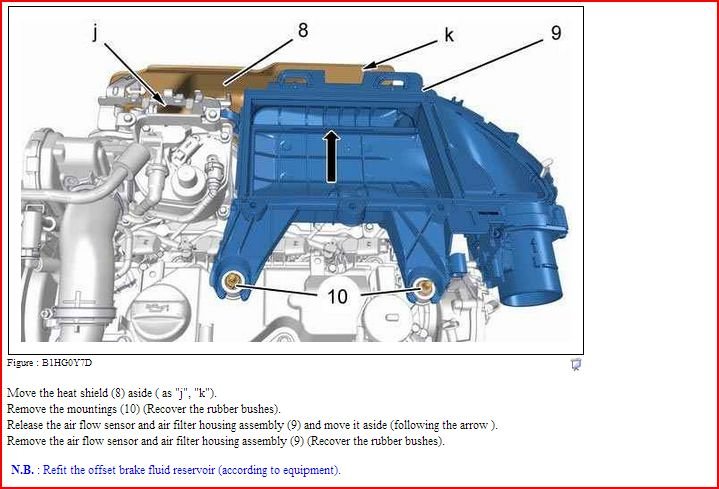

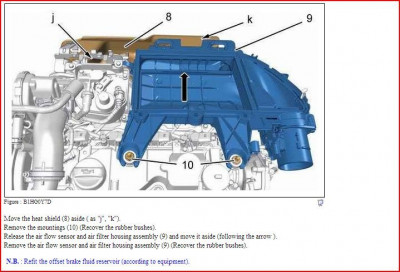

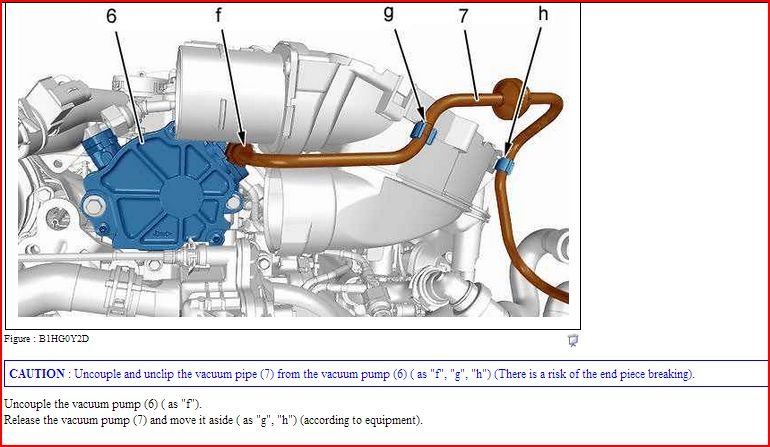

Removing the air filter etc:
