Peugeot 5008 Injector Fork stretch bolt torque

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
wattsey4u2day
Posts: 39
Joined: 29 Jul 2019, 20:06
Location: Worthing, West Sussex
My Cars: Peugeot 5008 2.0Hdi 2010
x 3

Peugeot 5008 Injector Fork stretch bolt torque

Post by wattsey4u2day »

Hi Guys. I have had a bit of a disaster yesterday evening (a week before our first baby is due too!). I was using the car today and it sounded a bit throaty. I thought nothing of it and all seemed to be ok. However, when I took it out this evening, I was driving along the dual carriageway and then suddenly had an almighty bang in the engine compartment, then the cabin filled with smoke along with the engine bay. At this point i thought the car had caught fire!! But it turned out that injector 2 had popped out. It looks like my injector fork 1982G2 has given way.

I know they use stretch bolts holding these down and I intend to replace the fork and bolt (along with the injector seals) before condemning the car to the scrapyard after 237,000 miles of loyal service.

My question is, what torque do the stretch bolts have to be done up to? Is there anything special that I need to do to ensure the bolt is secure? I have the DW10CTED4 engine 2.0 HDi
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36998
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5645

Re: Peugeot 5008 Injector Fork stretch bolt torque

Post by GiveMeABreak »

Here you go - I've included the other related components in the table:

Click Image to Zoom

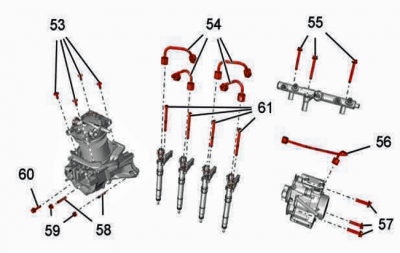

DW10CTED4 Inj Torques.PNG
ReferenceDesignationTightening torque
(53)Bolts (Fuel filter )1,1 daNm
(54)Union (High-pressure fuel pipe / Injectors ) (*) (**)Pre-tighten to 1,8 daNm
Tightening to 2,7 m.daN
(55)Bolts (Fuel high pressure rail)2,2 daNm
(56)Union (High-pressure fuel pipe / Fuel high pressure common injection rail )Pre-tighten to 1,8 daNm
Tightening to 2,7 m.daN
(57)Bolts ( high pressure fuel pump)2 daNm
(58)Studs (Fuel filter support)0,4 daNm
(59)Nuts (Fuel filter support)0,8 daNm
(60)Bolts (Fuel filter support)0,8 daNm
(61)Bolts (Injector holder clips )Pre-tighten to 0,7 daNm
Angular tightening to 55°
(*) Follow the tightening sequence (**) Follow the tightening procedure
Please Don't PM Me For Technical Help

Marc
wattsey4u2day
Posts: 39
Joined: 29 Jul 2019, 20:06
Location: Worthing, West Sussex
My Cars: Peugeot 5008 2.0Hdi 2010
x 3

Re: Peugeot 5008 Injector Fork stretch bolt torque

Post by wattsey4u2day »

Marc i really appreciate this thank you! Fingers crossed its just a case of the injector going back in and the car running again
