Please help! LDS piping
Hey
Yesterday i traded my Volvo V70 for a -10 C5 tourer with the 2.0 140hp engine
It was working all fine, until today. I was gonna drive to the shop, and the car was heigthening itself in the front, all good. But when it came to the rear going up the right rear just bursted out LDS fluid!
I've now checked and it's the pipe to the most right hand side in the cars direction exactly over the gas tank, witch if i understood correctly is the supply piping that is broken...
How do i go about changing this? Any parts numbers? Any pictures with steps?
I leave home at 5am with a 1 hour drive to work, kids start their first day at daycare tomorrow. And we recently moved so we don't know anyone for 300km....
Thanks, Marcus.
Yesterday i traded my Volvo V70 for a -10 C5 tourer with the 2.0 140hp engine
It was working all fine, until today. I was gonna drive to the shop, and the car was heigthening itself in the front, all good. But when it came to the rear going up the right rear just bursted out LDS fluid!
I've now checked and it's the pipe to the most right hand side in the cars direction exactly over the gas tank, witch if i understood correctly is the supply piping that is broken...
How do i go about changing this? Any parts numbers? Any pictures with steps?
I leave home at 5am with a 1 hour drive to work, kids start their first day at daycare tomorrow. And we recently moved so we don't know anyone for 300km....
Thanks, Marcus.
Last edited by rezonen on 22 Sep 2019, 17:32, edited 2 times in total.
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: Please help! LDS piping
post your Vin number will be masked to all but admins and you will be on the road to fix it before you know
-
- Posts: 25
- Joined: 13 Feb 2019, 18:47
- Location: Sweden
- My Cars: Citroen C3 1.6 HDIF -09
Citroen C5 2.0 HDI -10
Re: Please help! LDS piping
VF7**************[VIN obfuscated, can be read by forum staff]
-
- Forum Treasurer
- Posts: 10812
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 982
Re: Please help! LDS piping

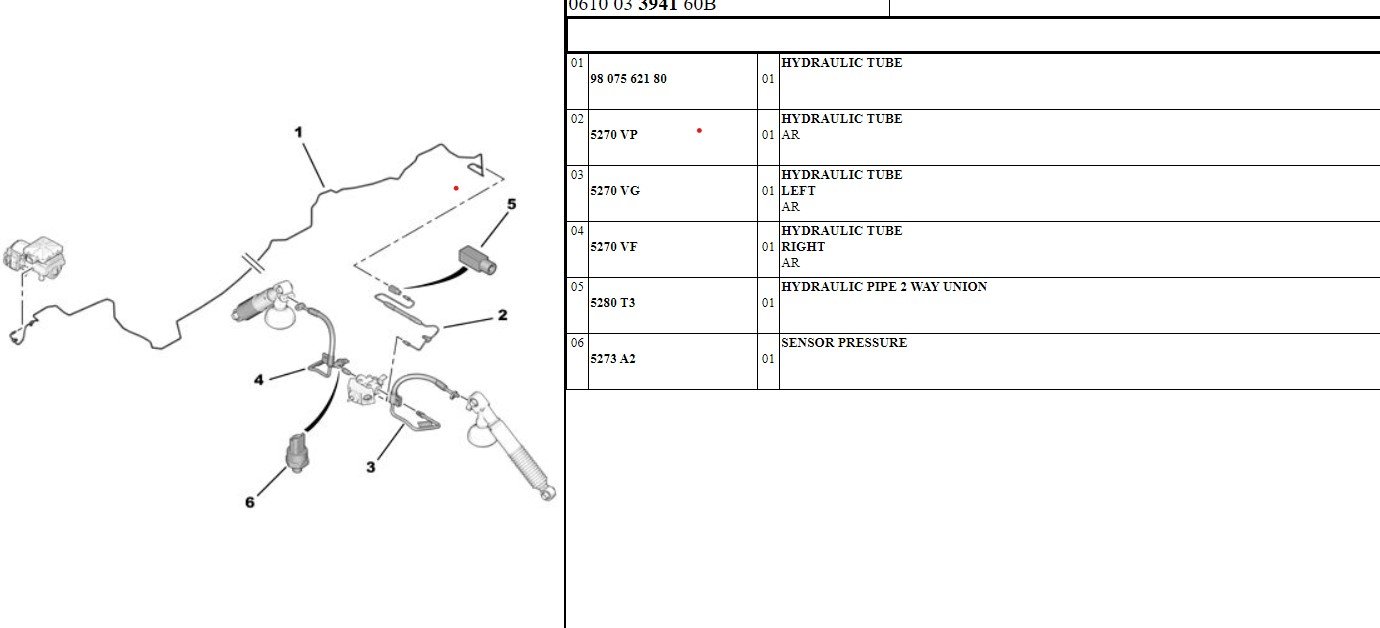

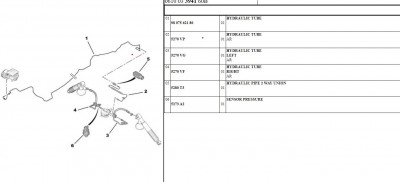

Here's the parts diagram:

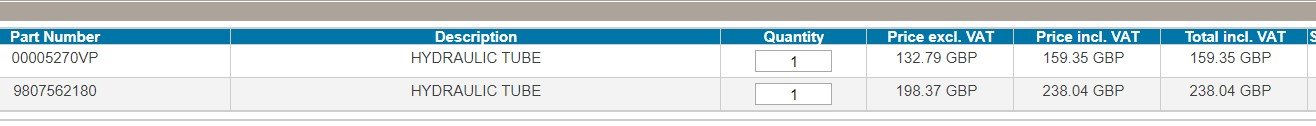

And the prices (in GBP), neither particularly cheap!!
I don't know what sort of flare Citroen use on these pipes, if you get it off, then you might be able to get someone to make up a pipe if it is a 'std' flare.
As to replacing it, if it is over the tank, then I fear the tank will have to come out.... The long pipe 1 will be a mare to replace without a 4 post lift I imagine.
And the prices (in GBP), neither particularly cheap!!
I don't know what sort of flare Citroen use on these pipes, if you get it off, then you might be able to get someone to make up a pipe if it is a 'std' flare.
As to replacing it, if it is over the tank, then I fear the tank will have to come out.... The long pipe 1 will be a mare to replace without a 4 post lift I imagine.
Richard W
- GiveMeABreak
- Forum Admin Team
- Posts: 36990
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: Please help! LDS piping
It will depend on whether this is the Supply or Return Piping...
Here are both diagrams:
Here are both diagrams:

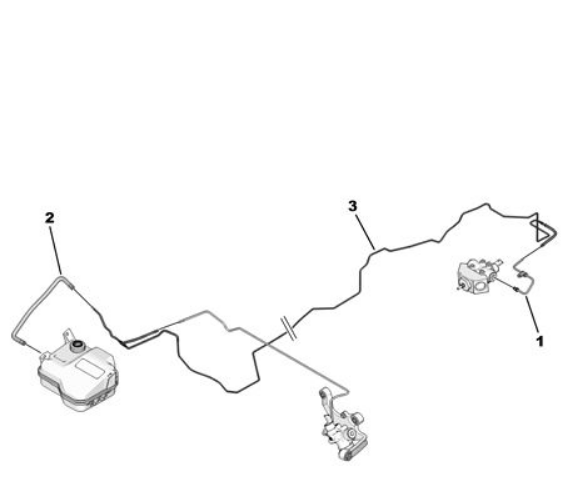

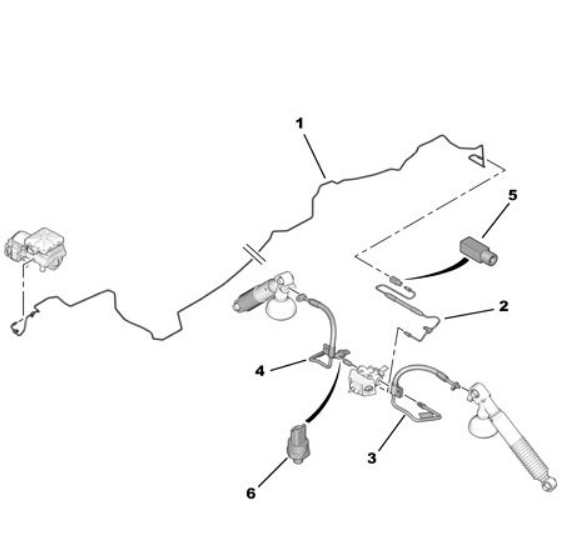

Supply Piping Rear | Return piping Rear |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Treasurer
- Posts: 10812
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 982
Re: Please help! LDS piping
If it was going up, and it poured out, the odds on it's the supply pipe. There's no procedure, but the book time for item 1 appears to be over 6 hours.....
Richard W
-
- Posts: 25
- Joined: 13 Feb 2019, 18:47
- Location: Sweden
- My Cars: Citroen C3 1.6 HDIF -09
Citroen C5 2.0 HDI -10
Re: Please help! LDS piping
Thanks guys, seems lika a pain...
Managed to get it so i can work the night shift tomorrow atleast...
How do i go about removing the gas tank? remove rear seats, detatch pump and hoses, then what?
Is there any way to leak test it before pouring in new oil in it and testing? Since it probably will pour it all out again if it's still leaking.... Expensive oil :/
Also, where do you guys get theese pictures and prices? Any place i can look it up?
Managed to get it so i can work the night shift tomorrow atleast...
How do i go about removing the gas tank? remove rear seats, detatch pump and hoses, then what?
Is there any way to leak test it before pouring in new oil in it and testing? Since it probably will pour it all out again if it's still leaking.... Expensive oil :/
Also, where do you guys get theese pictures and prices? Any place i can look it up?
-
- Posts: 947
- Joined: 16 Oct 2014, 12:17
- Location: Meath Ireland
- My Cars: 2008 Laguna 1.5 DCi
- x 235
Re: Please help! LDS piping
You can register for service box. You have to claim you're an independent trader but with your VIN you can access part numbers exploded diagrams etc. It's free to register free to look up a lot of stuff. You could buy a Haynes book of implausible methods but treat it like you would the national enquirer
Oh buggle
-
- Posts: 25
- Joined: 13 Feb 2019, 18:47
- Location: Sweden
- My Cars: Citroen C3 1.6 HDIF -09
Citroen C5 2.0 HDI -10
Re: Please help! LDS piping
I just did, however to see working times etc i have to pay.doctle wrote: ↑22 Sep 2019, 19:01 You can register for service box. You have to claim you're an independent trader but with your VIN you can access part numbers exploded diagrams etc. It's free to register free to look up a lot of stuff. You could buy a Haynes book of implausible methods but treat it like you would the national enquirer
-
- Posts: 947
- Joined: 16 Oct 2014, 12:17
- Location: Meath Ireland
- My Cars: 2008 Laguna 1.5 DCi
- x 235
Re: Please help! LDS piping
Im stumped there mate I just do whatever needs to be done in my own time. The times they give are likely to be for a fully equipped workshop with all needed tools lift etc available. So really the "official" repair time could be pretty meaningless when your lying on your driveway car up on axle stands and dirt falling into your eyes
Oh buggle
-
- Posts: 25
- Joined: 13 Feb 2019, 18:47
- Location: Sweden
- My Cars: Citroen C3 1.6 HDIF -09
Citroen C5 2.0 HDI -10
Re: Please help! LDS piping
Access to the technical documentation is chargeableClick here to be redirected to the subscription page
This is what i get when trying to see how to do stuff and labour times.
This is what i get when trying to see how to do stuff and labour times.
-
- Posts: 947
- Joined: 16 Oct 2014, 12:17
- Location: Meath Ireland
- My Cars: 2008 Laguna 1.5 DCi
- x 235
Re: Please help! LDS piping
Unless youre quite good with spanners and have the tools I'd recommenced you find an indie garage close to you. If the official repair time is 6 hours you'd probably have to double it. I'm sure the 08 Haynes book is as good as the non existent 10 one. Maybe a member can help you out or suggest someone near to you.
Oh buggle
- GiveMeABreak
- Forum Admin Team
- Posts: 36990
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: Please help! LDS piping
There are no haynes for a MK III - they never did one - for future ref. and yes all repair documentation is chargeable... However there is not repair procedure for the pipe - as it's just a matter of replacing it.doctle wrote: ↑22 Sep 2019, 19:01 You can register for service box. You have to claim you're an independent trader but with your VIN you can access part numbers exploded diagrams etc. It's free to register free to look up a lot of stuff. You could buy a Haynes book of implausible methods but treat it like you would the national enquirer
But as Richard says getting it off is going to be a job and really needs to be done on a 4 post lift so you can see the routing.
