C4 Picasso - engine bay shock absorbers
Hi,
I've found a guy on a Russian website that details changing the bushes on the 2 engine bay support beam shock absorbers (I don't know their actual name). Google translate isn't too good translating the guy's installation instructions.
My passenger side one rattles - I can reach down into the engine bay and rattle it with my hand.
The driver side seems to still be quite solid.
So I was going to replace the passenger side end bushing part.
The number of the left silent block is 16 108 281 80 .
The number of the right silent block is 16 108 282 80 .
Would you be able to show me the service manual image showing the parts and bolts etc - then I can work out how to remove it?
The beam is secured at the front end of the vehicle with M10 and M13 bolts, but I want to figure out their location and plan it before I actually start the job.
My VIN is: VF7**************[VIN obfuscated, can be read by forum staff]
Thanks
I've found a guy on a Russian website that details changing the bushes on the 2 engine bay support beam shock absorbers (I don't know their actual name). Google translate isn't too good translating the guy's installation instructions.
My passenger side one rattles - I can reach down into the engine bay and rattle it with my hand.
The driver side seems to still be quite solid.
So I was going to replace the passenger side end bushing part.
The number of the left silent block is 16 108 281 80 .
The number of the right silent block is 16 108 282 80 .
Would you be able to show me the service manual image showing the parts and bolts etc - then I can work out how to remove it?
The beam is secured at the front end of the vehicle with M10 and M13 bolts, but I want to figure out their location and plan it before I actually start the job.
My VIN is: VF7**************[VIN obfuscated, can be read by forum staff]
Thanks
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: C4 Picasso - engine bay shock absorbers

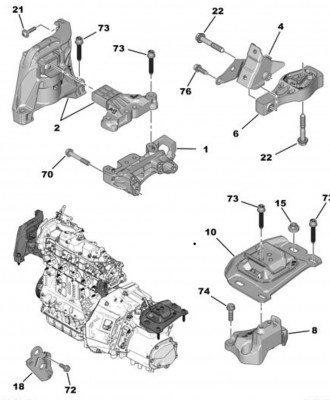

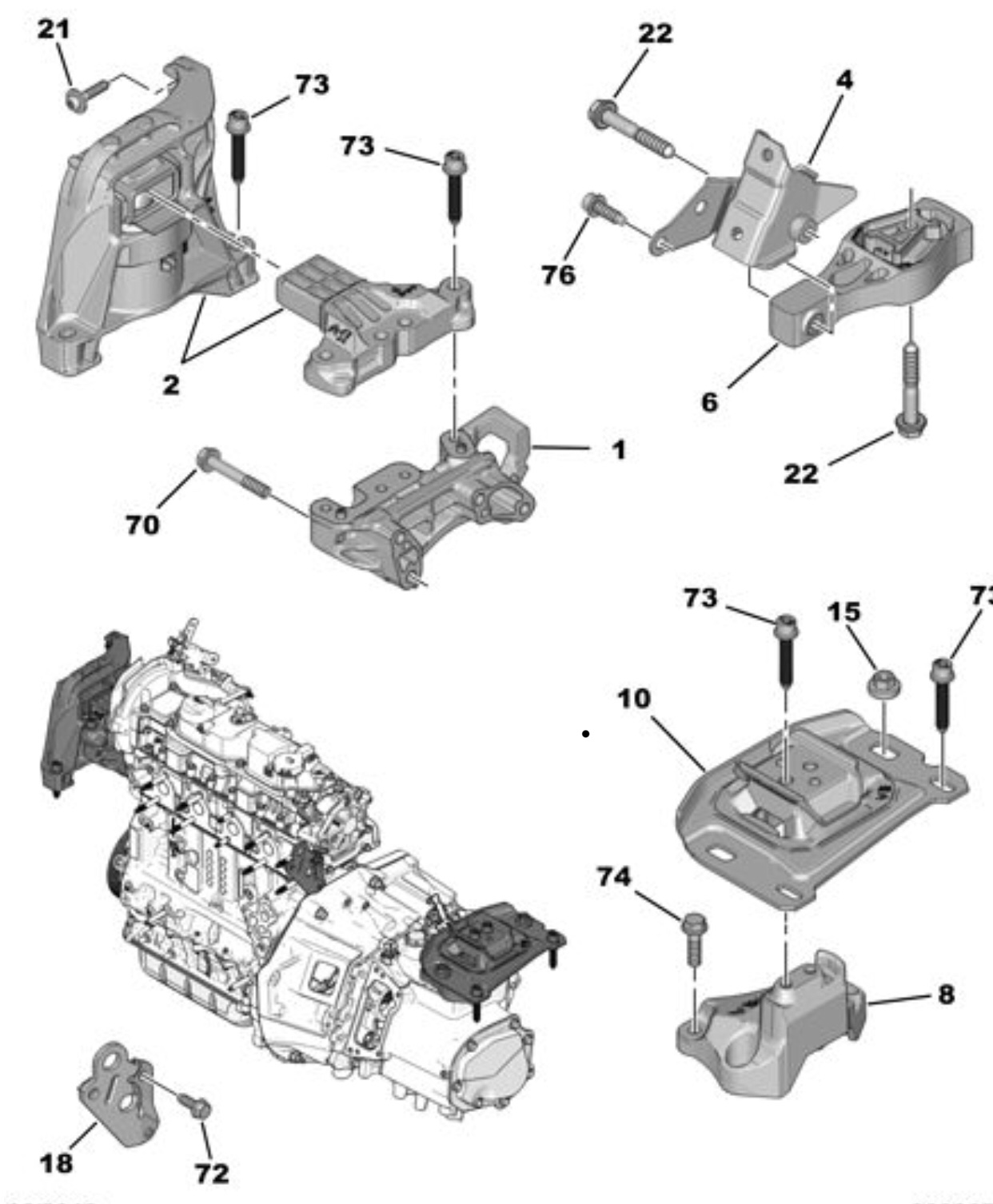

These are the engine mounting brackets
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Treasurer
- Posts: 10812
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 983
Re: C4 Picasso - engine bay shock absorbers
They're part of the front subframe assembly, Marc....

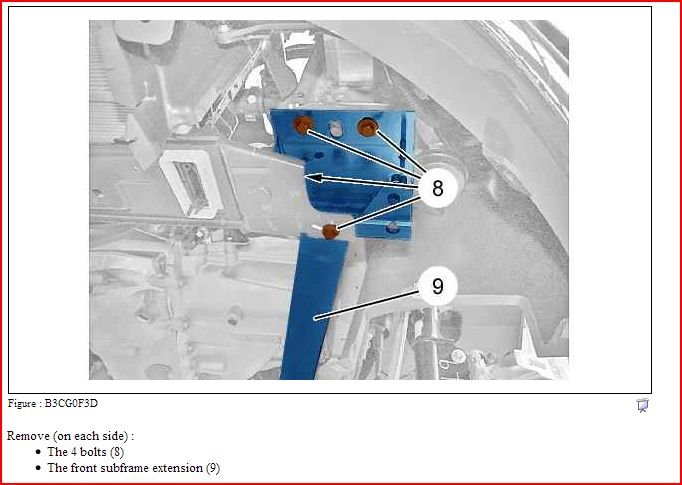

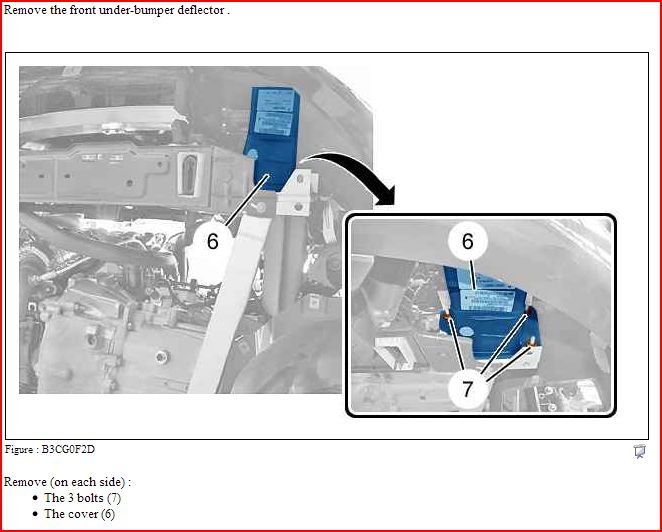

Removal
Removal
Richard W
-
- Donor 2024
- Posts: 124
- Joined: 06 Jul 2019, 08:17
- Location: Lancashire
- My Cars: Citroen C4 Picasso MK2 1.6 HDi (semi auto Deisel)
- x 18
Re: C4 Picasso - engine bay shock absorbers
Exactly what I needed - Thanks RichardW
Thanks Marc, but as Richard said, you'd got the wrong mounting brackets.
Thanks both!
Thanks Marc, but as Richard said, you'd got the wrong mounting brackets.
Thanks both!
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: C4 Picasso - engine bay shock absorbers
No worries I was in Marks & Spencers at the time!
Please Don't PM Me For Technical Help
Marc
Marc
- myglaren
- Forum Admin Team
- Posts: 25362
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4888
Re: C4 Picasso - engine bay shock absorbers
Are they selling mounting brackets now?
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: C4 Picasso - engine bay shock absorbers
I was sitting outside the fitting rooms waiting..... on the only chair in the store it seems, so a quick phone response to kill some time.
Please Don't PM Me For Technical Help
Marc
Marc
- myglaren
- Forum Admin Team
- Posts: 25362
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4888
Re: C4 Picasso - engine bay shock absorbers
So they were actually fitting the mounting brackets. Way to go M&S, Halfords better look outGiveMeABreak wrote: ↑26 Aug 2019, 19:38 I was sitting outside the fitting rooms waiting..... on the only chair in the store it seems, so a quick phone response to kill some time.
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
-
- Donor 2024
- Posts: 124
- Joined: 06 Jul 2019, 08:17
- Location: Lancashire
- My Cars: Citroen C4 Picasso MK2 1.6 HDi (semi auto Deisel)
- x 18
Re: C4 Picasso - engine bay shock absorbers

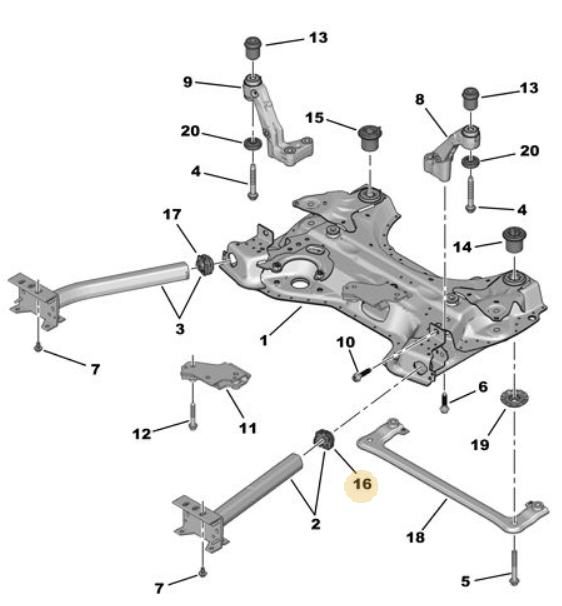

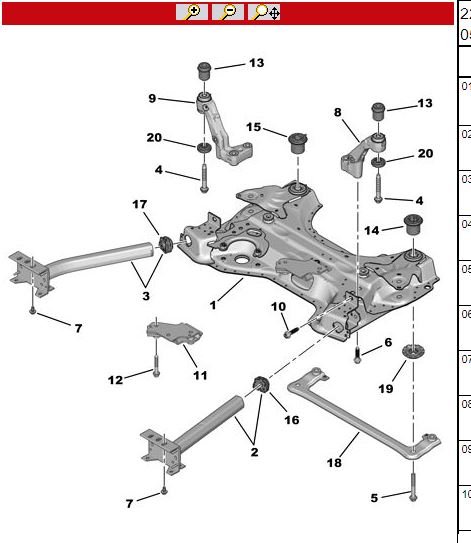

Please could somebody check the part numbers of 16 & 17 on the diagram RichardW added?
For my VIN number.
I've tried to order these parts, but the place I tried to order from said they don't come separately and I need to order the full extension arm - which I think may be incorrect.
They say they can't trace the part numbers for these 2 parts, only the whole extension arm part.
Thanks
For my VIN number.
I've tried to order these parts, but the place I tried to order from said they don't come separately and I need to order the full extension arm - which I think may be incorrect.
They say they can't trace the part numbers for these 2 parts, only the whole extension arm part.
Thanks
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: C4 Picasso - engine bay shock absorbers
(16 ) is part: 1610828180 (Subframe Extension Joint - Left)
(17) is part: 1610828280 (Subframe Extension Joint - Right)
Both are available from Citroen for £4.85 each inc. VAT
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 124
- Joined: 06 Jul 2019, 08:17
- Location: Lancashire
- My Cars: Citroen C4 Picasso MK2 1.6 HDi (semi auto Deisel)
- x 18
Re: C4 Picasso - engine bay shock absorbers
Thanks.
That's exactly what I thought and the same part numbers I already had.
I've managed to order them for another place without any issues.
That's exactly what I thought and the same part numbers I already had.
I've managed to order them for another place without any issues.
-
- Posts: 2
- Joined: 19 Sep 2020, 01:06
- Location: Dewsbury, West Yorkshire.
- My Cars: Citroen Grand Picasso mkii 1.6dti 2014
Re: C4 Picasso - engine bay shock absorbers
After nearly 2 years of searching, checking and replacing parts this is what turned out to be the dreaded knocking sounds coming from the front end that sound just like shocker tops or anti roll bar bushes worn.
I have seen so many people with exactly the same problem.
This is a true Halleljah moment.
Cheers Peeps.
I have seen so many people with exactly the same problem.
This is a true Halleljah moment.
Cheers Peeps.
Re: C4 Picasso - engine bay shock absorbers
did the front bumper have to be removed when changing the silent bush....
-
- Donor 2024
- Posts: 124
- Joined: 06 Jul 2019, 08:17
- Location: Lancashire
- My Cars: Citroen C4 Picasso MK2 1.6 HDi (semi auto Deisel)
- x 18
Re: C4 Picasso - engine bay shock absorbers
No need to remove the bumper
You can jack the car up on the side you you want to replace (jack up near front wheel as you would normally).
You can remove and replace the support beam and bush from underneath.
Here is a link to the original website I had found showing you how.
It's a Russian website, so you'll need to translate the page (Google auto translates it if you use Chrome).
https://citroen-club.by/blogs/entry/446 ... -podveski/
You can jack the car up on the side you you want to replace (jack up near front wheel as you would normally).
You can remove and replace the support beam and bush from underneath.
Here is a link to the original website I had found showing you how.
It's a Russian website, so you'll need to translate the page (Google auto translates it if you use Chrome).
https://citroen-club.by/blogs/entry/446 ... -podveski/
