Citroen C5 X7 2011 Oil Temp Gauge

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Kennyd90
Posts: 35
Joined: 18 Dec 2014, 18:36
x 5

Citroen C5 X7 2011 Oil Temp Gauge

Post by Kennyd90 »

Good evening all. I was wondering if anyone can tell me what the digital blocks equate to in oil temperature on the oil temp gauge on the C5. Mine is a late 2011 model with the 163hp diesel engine and I've always wondered what temp it shows when it's almost 3/4 lit up.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29002
Joined: 15 Sep 2015, 19:38
x 3605

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by GiveMeABreak »

Here are the temperature equivalents. Took me a whole to locate. The manual says that it should remain in zone 1 under normal conditions, and only under harsh conditions enter zone 2 - where you should slow down and check levels.
X7 Oil.PNG
X7 Oil.PNG (80.71 KiB) Viewed 444 times
Temperature Segments:
Correspondence between the segments of the indicator and the engine oil temperature
Segments of the indicatorOil temperature (°C)
0Below 50
150
255
360
465
570
675
780
8112
9145
10147
11149
12151
13153
14155
15160
User avatar
xantia_v6
Forum Admin Team
Posts: 8142
Joined: 09 Nov 2005, 23:03
x 553

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by xantia_v6 »

It is interesting to note the uneven steps between each segment lighting, between 2° and 33°
Kennyd90
Posts: 35
Joined: 18 Dec 2014, 18:36
x 5

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by Kennyd90 »

Thanks for this. It is helpful to know the temp especially as I am towing too.
Hell Razor5543
Donor 2021
Posts: 12590
Joined: 01 Apr 2012, 09:47
x 1726

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by Hell Razor5543 »

xantia_v6 wrote:
29 May 2019, 06:57
It is interesting to note the uneven steps between each segment lighting, between 2° and 33°

Maybe Citroen consider that anything between 80 and 145 degrees is a normal operating temperature, and so does not need 'fine' accuracy, while anything outside of that range is abnormal, and needs monitoring.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29002
Joined: 15 Sep 2015, 19:38
x 3605

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by GiveMeABreak »

Anything to 149 is fine, anything 151 to 160 should not be maintained (only 13 segments are shown in the picture, but there are 15).
ml11ML
Donor 2021
Posts: 53
Joined: 07 Oct 2020, 10:22
x 5

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by ml11ML »

Hi Marc,

do you (or anyone else?) by any chance happen to have any info on this for a mk1 c5? Citroen in their infinite wisdom decided to use unmarked gauges for voltage, coolant and oil temperature which is not very useful and my cars last owner got rid of the manual book for some reason...

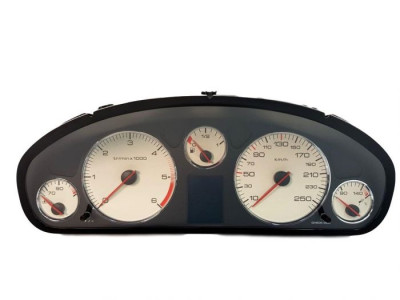

I could assume that the scale is the same as on a 407 which has marked gauges but I noticed that the 407 coolant gauge shows 90c in the middle while mine is actually around 78c in the middle so that makes me doubt the oil gauge. I know there aren't any mk1/facelift manuals online (only the x7) so I guess if you don't have access to any either my last hope to figure out the scale would be to drag out the lexia laptop and check the actual oil temperature on that (as the phone based bluetooth obd2 scanner won't report oil temp).
Attachments
407
407
Hell Razor5543
Donor 2021
Posts: 12590
Joined: 01 Apr 2012, 09:47
x 1726

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by Hell Razor5543 »

Based on the temperature ranges I believe the gauge on the left is for the coolant, while the gauge on the right is for the oil. I have had two Mk1 C5s (although they had a more crowded instrument panel), and the coolant gauge was on the left according to the handbook.
ml11ML
Donor 2021
Posts: 53
Joined: 07 Oct 2020, 10:22
x 5

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by ml11ML »

Yeah, maybe I should have written my question in another way. What I meant was that the middle of the coolant gauge on the 407 is 90c while on my c5 the middle of the gauge is 78c so the scale is clearly different. That makes me think if the oil temp gauge also has a different scale and so the position of the c5 gauge can't be compared to the 407 gauge (which has the temperature written on it instead of being blank) in order to estimate the oil temperature on the c5.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29002
Joined: 15 Sep 2015, 19:38
x 3605

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by GiveMeABreak »

The oil pressure on these is generally checked (if necessary) using an oil pressure gauge that's put in place of the oil filter and after the engine has reached 110 °C and after checking the oil level.

For your engine (DW12TED4):
at 1000 RPM the Min Oil Pressure read on the gauge should be 2 Bar
at 2000 RPM the Min Oil Pressure read on the gauge should be 4 Bar

A lot trouble to go to to check the pressure - unless you suspect there is an issue.
ml11ML
Donor 2021
Posts: 53
Joined: 07 Oct 2020, 10:22
x 5

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by ml11ML »

Hi Marc,

no issues suspected, just curious. However I think you may have mistaken my question for another, as I wanted to know about the temperature not pressure and if there was any scale like the one you posted for the x7 in the second post but instead for my mk1 :) As you probably know the mk1 has an oil TEMPERATURE gauge but it does not have any actual writing on it like the picture of a 407, just blue and red on bottom and top of the gauge limits which is why I was asking about it.

EDIT: added picture to show better what I actually mean
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29002
Joined: 15 Sep 2015, 19:38
x 3605

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by GiveMeABreak »

Ok so this is what I have specific to this model:

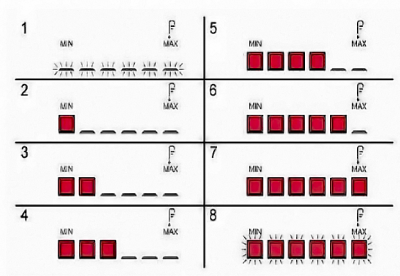

Oil Level - Instrument Panel Segments
C5 II Oil.PNG
Key
DisplayFluid level
1(flashing)From 0% to 11%
2From 12% to 25%
3From 26% to 39%
4From 40% to 53%
5From 54% to 67%
6From 68% to 81%
7From 82% to 100%
8(flashing)Higher than 100 %

In the event of receiving an invalid value, the 6 lower segments of the display and the "min" pictogramme flash, the "max" pictogramme remains unlit.
ml11ML
Donor 2021
Posts: 53
Joined: 07 Oct 2020, 10:22
x 5

Re: Citroen C5 X7 2011 Oil Temp Gauge

Post by ml11ML »

Ok, thank you for checking anyway. I think I will just take the lexia laptop with me once I go on a longer trip and check the actual temperature compared to the gauge position.
