Does seat foam padding exists as spare part - C5 x7

Post by atr »

Hi
My driver's seat - lhd - is not in a good shape (what an understatement...). the upholstery cloth is in quite a good condition. the problem is with the foam padding under it. it's distorted and lost it's shape. I was surprised that someone told me that the foam can be bought from Citroen dealership because it's a spare part (at least to the Berlingo that he owns). since it's a holiday today and tomorrow here in Israel and than the weekend kicks in, so there isn't an open dealership until Sunday, I would like to ask if any of the forum members had heard about it.
Avi
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

Yes, aware of it - but no longer available from Citroen new for your model Avi:

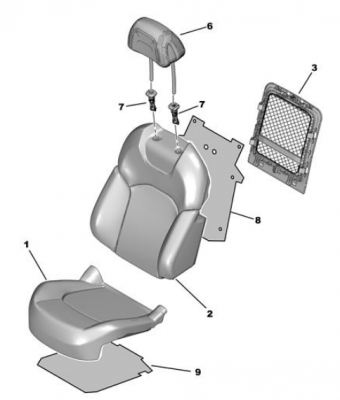

Only the whole cushion was available - item 1 below - but no longer supplied new.
Avi Seat.PNG
Part 8863H4 for the Left
8863H5 for the Right.
atr
Posts: 313
Joined: 09 Oct 2010, 05:02
x 6

Re: Does seat foam padding exists as spare part - C5 x7

Post by atr »

Thanx again Marc. I'll have to look for a "upholstery specialist" that will be able to fix it. btw- the towing bar is long installed and authorized, including the electrical bypass.
Avi
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

Good news at least on that front!

As for the cushion, it is a complete unit - so you can maybe look for one of a used car - the part number is the right one for your colour upholstery trim.
Hell Razor5543
Donor 2021
Posts: 12590
Joined: 01 Apr 2012, 09:47
x 1726

Re: Does seat foam padding exists as spare part - C5 x7

Post by Hell Razor5543 »

I wonder if the left and right cushions are interchangeable? If they are, and you can find a scrapped car with the right seat colours, the passenger cushion should be in a better condition, as it wouldn't have been used so much.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

No, they are different for left and right hand sides on the X7, unlike MK I and II C5s.
Hell Razor5543
Donor 2021
Posts: 12590
Joined: 01 Apr 2012, 09:47
x 1726

Re: Does seat foam padding exists as spare part - C5 x7

Post by Hell Razor5543 »

Drat!!! :(
atr
Posts: 313
Joined: 09 Oct 2010, 05:02
x 6

Re: Does seat foam padding exists as spare part - C5 x7

Post by atr »

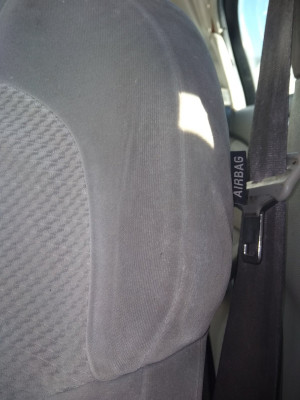

I think that the easiest way is to remove the whole seat from the vehicle and to take it to a repair shop. I guess that it's fixed to the floor by 4 screws in the railings, but my concern is with the yellow connector, which I assume, contain the control of the airbag located in the back left hand side of the seat (at least that is where the "airbag" label attached to it) and to the weight sensor in the bottom of the seat. so, what I would like to ask, if there is a procedure to disconnect it without causing the airbag to blow in my face? please be aware that all I've written are my assumption and it can be wrong, in that case, please correct me.
Avi
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

Those will be the seat belt pre-tensioner and seat airbag wiring Avi. You'll need to wait several minutes after opening the vehicle before disconnecting - but ideally the battery should be disconnected.

Procedure for 'Manual Seats'
  • Perform the following operations :
  • Switch off the ignition
  • Wait 3 minutes before disconnecting the battery
  • Disconnect the ancillaries battery (Follow my disconnection Procedure here):
    viewtopic.php?f=51&t=61997
Avi Seat A.PNG
Avi Seat B.PNG

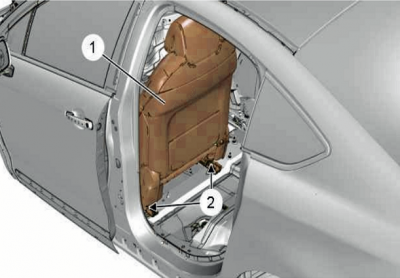

  • Move the front seat (1) forward as far as possible.
  • Remove the bolts (2).

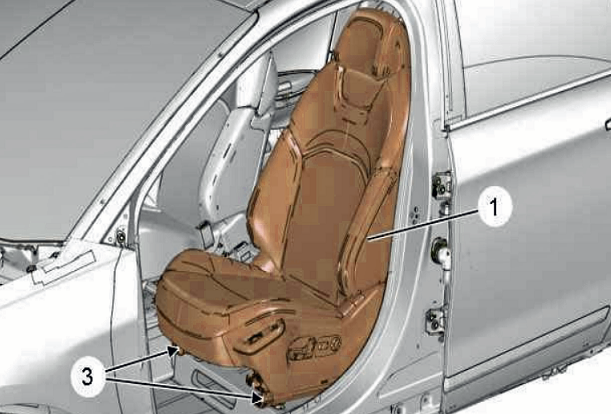

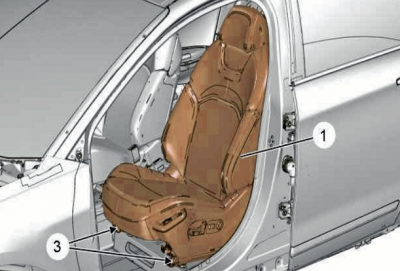

  • Slide the front seat (1) rearwards as far as possible.
  • Remove the bolts (3).
Avi Seat C.PNG

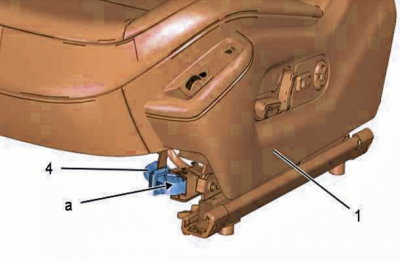

N.B.: Tilt the front seat (1) rearwards (To make access to the connector easier).
  • Disconnect the connector (at "a").
  • Unclip - Liberate the wiring harness (4); Using trim removal tools.
N.B.: For the following operation 2 people are necessary.
  • Remove the front seat (1).
Refitting
  • Proceed in the reverse order to removal.
  • Apply thread lock to the bolts (2), (3).
  • Tighten the bolts (2), (3) to 2,75 m.daN .
  • Reconnect the ancillaries battery.
  • Check that the electrical equipment is working correctly.
Alternatively, there are lots of videos about replacing car seat foam on the web.
atr
Posts: 313
Joined: 09 Oct 2010, 05:02
x 6

Re: Does seat foam padding exists as spare part - C5 x7

Post by atr »

Thanx Marc. the procedure you've described is very comprehensive. what you're referring to as the "pre tensioner", is the device/ unit that senses when the seat is occupied and if the seat belt is unfastened produces the annoying sound and the warning?
Avi
Hell Razor5543
Donor 2021
Posts: 12590
Joined: 01 Apr 2012, 09:47
x 1726

Re: Does seat foam padding exists as spare part - C5 x7

Post by Hell Razor5543 »

The pre-tensioner is the device that tightens the safety belt if an accident occurs.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

atr wrote:
11 May 2019, 12:15
Thanx Marc. the procedure you've described is very comprehensive. what you're referring to as the "pre tensioner", is the device/ unit that senses when the seat is occupied and if the seat belt is unfastened produces the annoying sound and the warning?
Avi
Basically there are pyrotechnics in the seat belt units in which the belt fasteners click into. In a severe enough impact, the pre-tensioners fire, causing any slack in the seatbelt to be rapidly drawn back, effectively pulling the passenger back into the seat. This basically greatly reduces whiplash injuries as it helps prevent the body being momentarily thrown forward and backwards that causes the strain on the neck and head ('Whiplash' effect).

They are also fitted to the rear seatbelts too, so be aware.
User avatar
Sloppysod
Donor 2021
Posts: 698
Joined: 23 May 2015, 23:35
x 113

Re: Does seat foam padding exists as spare part - C5 x7

Post by Sloppysod »

HI Avi, One of my 'Planned' Jobs this year is to replace the foam on the outer wing of the drivers seat, it has been crushed by a driver sliding in and out of the car. Anyway, unlike you the weather plays a part in my activities, dodging the rain etc......anyways I think I have worked out how to do it but have NOT proven my idea,....our problem is the seat foam is bonded to the seat material.
  • Remove seat base,
  • Remove as much foam as possible using a knife to start with, then a small grinder to get as close as possible to the external seat covering.
  • Then cut a piece of foam to the same shape, a rasp file should help, as the hole you have made +6mm (ish),
  • using contact adhesive stick the new piece of foam into the seat base.
I am also trying to work out what grade of foam to use, on the wings it needs to be firm but not too firm, however, this looks suitable https://www.efoam.co.uk/docs/Reflex400.pdf

As I said I have NOT tried this out yet but when I do I may add it to Youtube, not completely decided.....
User avatar
GiveMeABreak
Forum Admin Team
Posts: 29016
Joined: 15 Sep 2015, 19:38
x 3610

Re: Does seat foam padding exists as spare part - C5 x7

Post by GiveMeABreak »

This guy has one unique solution!
User avatar
Paul-R
(Donor 2020)
Posts: 5817
Joined: 07 May 2009, 16:24
x 941

Re: Does seat foam padding exists as spare part - C5 x7

Post by Paul-R »

That's amazing. I wonder how long the fix lasts for though.
