Citroen C4 Picasso coolant leak name of part

Post by cargeeka999 »

As per the title I have a coolant leak on a Citroen C4 Picasso, with a friend I have tracked the leak down to a pipe on the right hand side of the engine that comes out of the back of the water pump thats connected to the out pipe from the radiator.
I would like to know more about where the pipe goes and what its called. A diagram of where it connects to the other end, would also be good if there is one available.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C4 Picasso coolant leak name of part

Post by GiveMeABreak »

Pop your VIN up so we know what variant you have - systems differ between engines and models.
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 983

Re: Citroen C4 Picasso coolant leak name of part

Post by RichardW »

From previous post VF7**************[VIN obfuscated, can be read by forum staff]

Here are the hoses:
c4pic hoses.JPG
This is a bit confusing as it shows 2 pipes at the LH side - but the part numbers show yours is fitted with a 2 part hose, items 3 and 4.

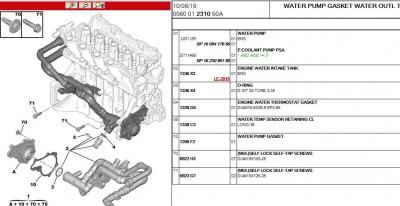

And the manifold on the back of the block to the water pump:
c4 pic w pump.JPG
Not sure which bit you are referring to? When you say right, do you mean as you look at the engine, or as you are sitting in the car? I think you perhaps have the thermostat confused with the pump - there is no hose from the rad to the pump - both rad hoses are connected to the stat housing.
Richard W
cargeeka999
Posts: 21
Joined: 14 Apr 2019, 17:14
Location: England
My Cars: Citroen C4 Picasso 1.6 HDI Diesel 2007
x 2

Re: Citroen C4 Picasso coolant leak name of part

Post by cargeeka999 »

OK I have marked this image:
c4pic hoses with arrow.JPG
with a red arrow about the area where the leak is.
The leak is on that corner as the pipe goes round the back of the engine.

When I said right its when your looking head on, sorry just realised thats not conventional way round, its near side (on RHD vehicle as Im in the UK) very close to the battery and under the fuel pump.
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 983

Re: Citroen C4 Picasso coolant leak name of part

Post by RichardW »

OK... so that's item 2 on the second pic I posted. Which comes in at £110. However, I can't imagine how you would go about changing it - engine out?

There is a link on the page (the LE2015 in red) which suggests instead:

1336 X3 Propose :
- 1336 V3(1) + 1340 72(1) + 6980 44(1)

Which is a different design of manifold, and only £80.
Richard W
cargeeka999
Posts: 21
Joined: 14 Apr 2019, 17:14
Location: England
My Cars: Citroen C4 Picasso 1.6 HDI Diesel 2007
x 2

Re: Citroen C4 Picasso coolant leak name of part

Post by cargeeka999 »

RichardW is the whole pipe actually needed though or can I just get the part that goes round that corner of the engine? Does it have a joint round the back somewhere, which would mean just getting a bit out but not the lot?
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Citroen C4 Picasso coolant leak name of part

Post by xantia_v6 »

Are you sure that the leak is actually from that pipe, and not a leak from the thermostat housing that is running downhill onto the pipe that you have identified?
cargeeka999
Posts: 21
Joined: 14 Apr 2019, 17:14
Location: England
My Cars: Citroen C4 Picasso 1.6 HDI Diesel 2007
x 2

Re: Citroen C4 Picasso coolant leak name of part

Post by cargeeka999 »

There is a definite split in that pipe.
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 983

Re: Citroen C4 Picasso coolant leak name of part

Post by RichardW »

If you search on the part no on e-bay, there are quite a few around £40. There might be a joint in the middle looking at the pics, but given the (lack of) access I imagine it will be just as 'easy' to remove and replace the whole lot. I can't see any instructions, but it books at 6.1 hours, so it's no walk in the park! I suspect at least the OS drive shaft will need to come out, and possibly the sub frame, and quite likely the EGR valve and cooler. Good luck!!
Richard W
buskmann
Posts: 2
Joined: 24 Jun 2019, 23:36
Location: Norway
My Cars: Peugeot 307 1.6HDi

Re: Citroen C4 Picasso coolant leak name of part

Post by buskmann »

I think I have the same issue on my 2007 Peugeot 307 1.6 HDi. The air filter box has chafed a hole in the water pump to engine coolant pipe. The pipe is made of some kind of hard plastic (not rubber-like).

As it it time-consuming (and the not cheap) to change the pipe, has anyone had success with a temporary repair? I tried vulcanizing tape, but it did fix the leak.

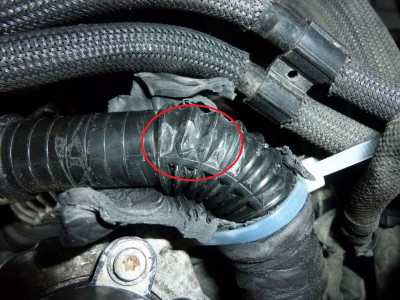

A couple of pictures:
cargeeka999
Posts: 21
Joined: 14 Apr 2019, 17:14
Location: England
My Cars: Citroen C4 Picasso 1.6 HDI Diesel 2007
x 2

Re: Citroen C4 Picasso coolant leak name of part

Post by cargeeka999 »

Thanks for the help of people on here with this part, I found an independent mechanic who was able to fix the part onto my car at a very reasonable price.
buskmann
Posts: 2
Joined: 24 Jun 2019, 23:36
Location: Norway
My Cars: Peugeot 307 1.6HDi

Re: Citroen C4 Picasso coolant leak name of part

Post by buskmann »

I glued my coolant hose in situ. Still tight one month after.
MarkThomas
New User
Posts: 1
Joined: 28 Oct 2021, 22:46
Location: Tunbridge wells
My Cars: Peugeot 307sw HDi 1.6 90 2005

Re: Citroen C4 Picasso coolant leak name of part

Post by MarkThomas »

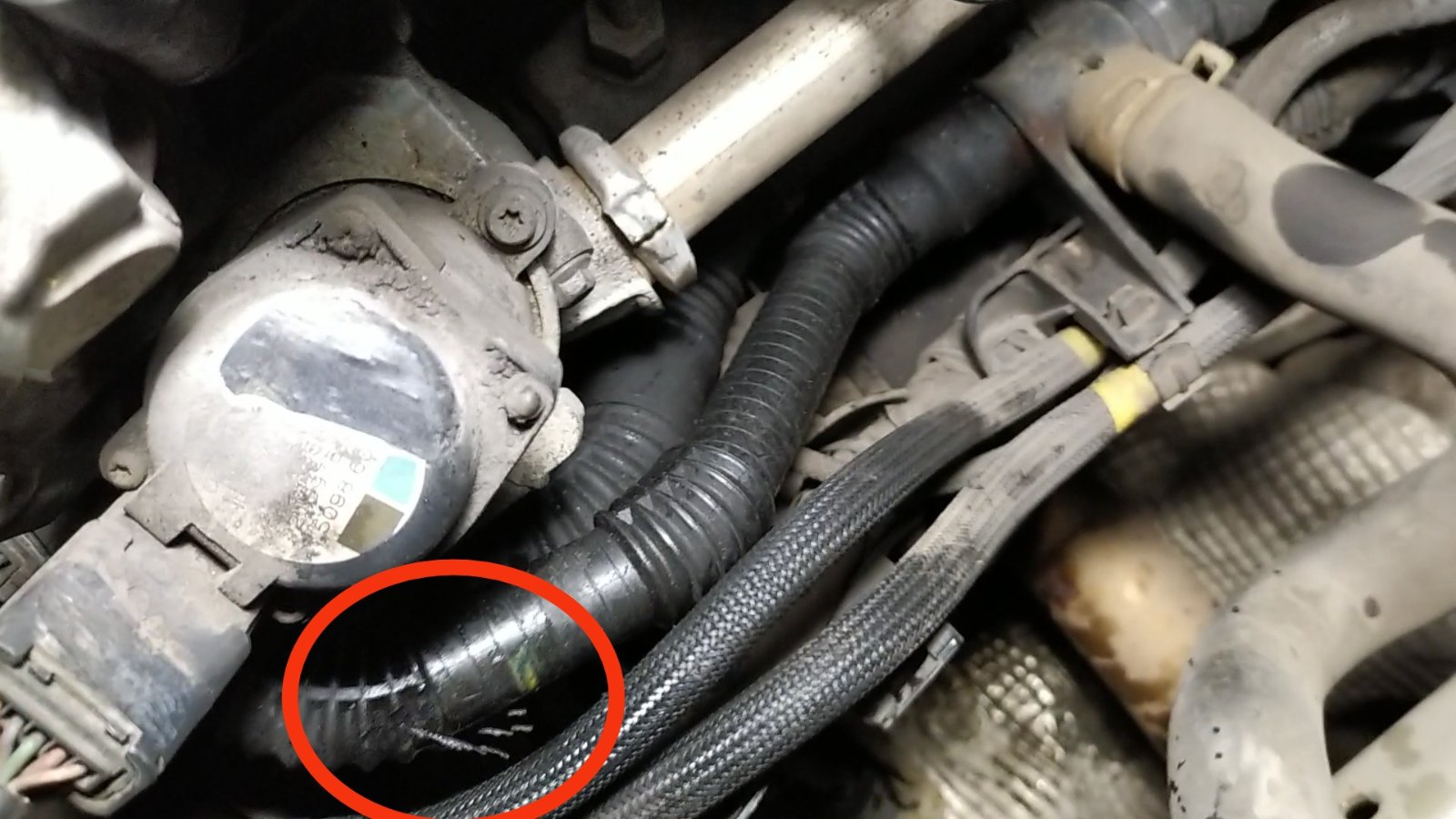

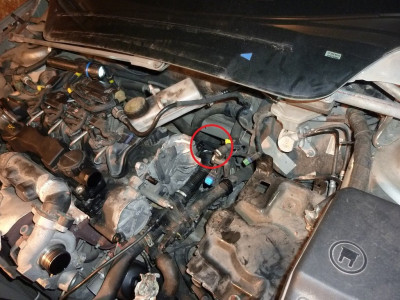

It looks as if I have the same problem, 2005 307 HDi 1.6. You can see the jet of coolant in the red circle in this picture. So, what do I do?

Any help would be much appreciated as it will be a couple of weeks before a garage will look at it. Name of part? Time for repair? Did the glue hold? Type of glue? ²
Attachments
Leaking coolant pipe 307 HDi 1.6
Leaking coolant pipe 307 HDi 1.6
